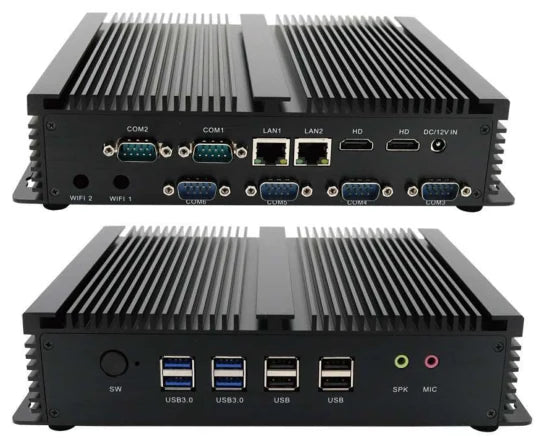

Fanless industrial PC, Intel Core i3-4010U (LS-YBGKX4010UL)
Model LS-YBGKX4010UL
- ProcessorIntel Core i3-4010U
- Storage-20/+80 Centigrade (-68°F~176°F)
- OSWindows 7/Windows 8/Windows 10/Linux
- LAN ports2 LAN ports
$299.00
In stock - ships the same business day (4 available, order by 2 PM ET)
2.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Fanless industrial PC, Intel Core i3-4010U. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 1 x SO-DIMM DDR3L Slot; Support 2GB/4GB/8GB; DDR3L 1333/1600, LPDDR3 1333/1600. Sold barebone or with 8 GB RAM + 256 GB SSD fitted; Wi-Fi on request.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-YBGKX4010UL |
|---|---|
| Configuration | Barebone: no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request |
| TDP | 15W |
| Motherboard | 170 x 120mm customized size |
| BIOS | AMI BIOS, ACPI supported, Support call on function automatically |
| PXE | YES |
| Audio | ALC892 HIFI sound chip, 6-channel |
| Video | Intel HD Graphics 4400 |
| Wi-Fi module | 1 x mini PCIE-half port for Wi-Fi/3G/4G module |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Switch | 1 x Power On/Off Switch |
| LAN | 2 x RJ45 Intel Giga LAN |
| COM | 6 x COM RS232 ports |
| SIM | 1 x embedded SIM card slot onboard (optional) |
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Cooling | Fanless |
| Functions | Hyper-Threading, Virtualization technology, 64 bit computing |
| In the box | 1x Mini PC, 1x Power Adapter, 1x Power Cord, 1x Screws Bag |
| Optional | Wi-Fi antennas, 1x HDMI cable, 1x User Manual, 1x Long Screws Bag |
Interfaces and I/O
| Network | Intel 82583V/82574L PCI-E Gigabit Ethernet NIC, 10/100/1000 BaseT LAN |
|---|---|
| USB | 4 x USB2.0, 4 x USB3.0 |
| Display | 2 x HDMI |
| Audio ports | 1 x MIC, 1 x SPK |
Light
| LED | 1 x LED |
|---|
Environment and compliance
| Operating temperature | 0/+70 Centigrade (32°F~140°F) |
|---|---|
| Storage temperature | -20/+80 Centigrade (-68°F~176°F) |
| Relative humidity | 0%~90% (non-condensing) |
| Certification | CE, FCC, RoHS (manufacturer) |
Computing
| Processor | Intel Core i3-4010U |
|---|---|
| Processor details | Onboard Intel Core i3 4010U 1.7GHz (Turbo boost Technology) Dual Core Four Threads |
| Chipset | Intel QS77 Express High Speed Chipset |
| Memory | 1 x SO-DIMM DDR3L Slot; Support 2GB/4GB/8GB; DDR3L 1333/1600, LPDDR3 1333/1600 |
| Operating system | Windows 7/Windows 8/Windows 10/Linux |
Electrical
| Power input | DC100-240V AC/50-60Hz |
|---|---|
| Power output | DC +12V~+19V, recommend 12V/5A |
| Power | 1 x 12V DC In |
Mechanical
| Dimensions | 234 x 150 x 50 mm |
|---|---|
| Weight | Net 1.8kg, Gross 2.7kg |
| Shell | Black color aluminum alloy |
| Mounting | 4 Mounting holes on case |
