Machine vision lenses

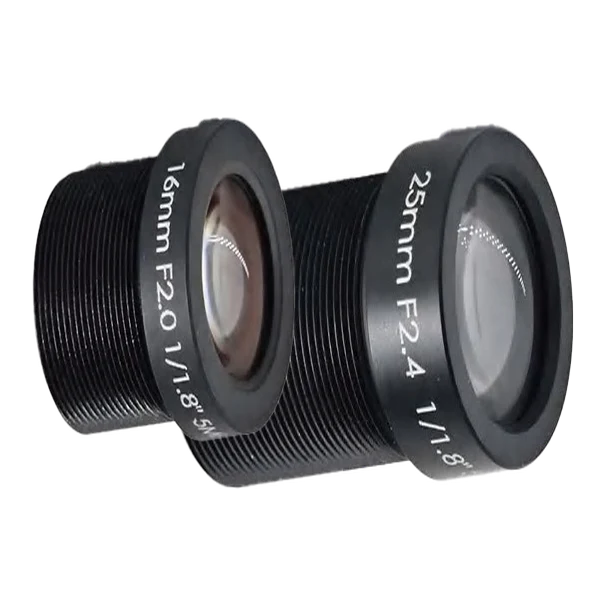

25 mm, M12-mount M12 Board Lens (LS-XTY2512M)
Model LS-XTY2512M
- Focal length25 mm
- MountM12
- Sensor1/1.8"
- Working distance50-INF.
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, M12-mount M12 Board Lens. M12 Lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-XTY2512M |
|---|
Optics
| Focal length (mm) | 25 |
|---|---|
| Iris (F/#) | 2.4 |
| Working distance (mm) | 50-INF. |
| Distortion (%) | < -0.34 |
| Format size (mm) | Φ9 |
Mechanical
| Mount | M12 |
|---|---|
| Shipping weight (estimated) | 0.20 kg |
Other models in the M12 board lens (XTY..12M) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-XTY1212M | 12 mm, M12-mount | $39.00 | 4 in stock | View |
| LS-XTY1612M | 16 mm, M12-mount | $39.00 | 2 in stock | View |
