Machine vision lenses

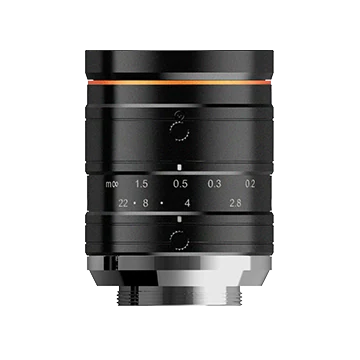

Fixed focal length, Manual iris, 12 MP, FA lens (LS-XAC-3512F)
Model LS-XAC-3512F
- Focal length35 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.8 ~ F22
$309.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Fixed focal length, Manual iris, 12 MP, FA lens. High resolution with highly consistent sharpness across the image Low distortion
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-XAC-3512F |
|---|---|
| Minimum object distance | 0.2 m |
Optics
| Focal length | 35 mm |
|---|---|
| F-number | F2.8 ~ F22 |
| Image size | Φ17.6 mm(1.1'') |
| Distortion | 0.02% |
| Field of view | D (17.52 mm): 28.3°; H (14.14 mm): 22.6°; V (10.35 mm): 17° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5×0.5 |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 17.526 mm |
|---|---|

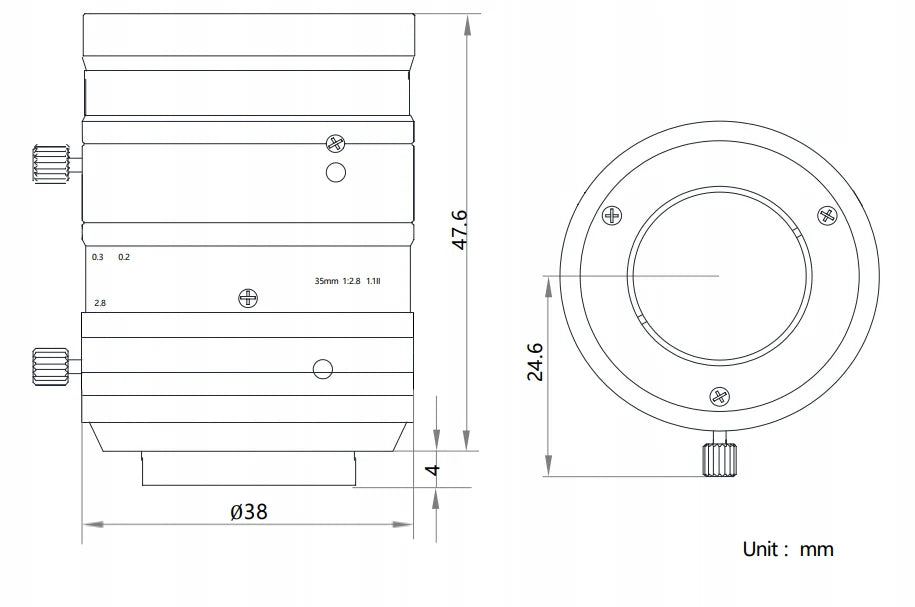

| Dimension | Φ38×47.6 mm |
| Weight | 107 g |
| Shipping weight (estimated) | 0.25 kg |
