Dome lights

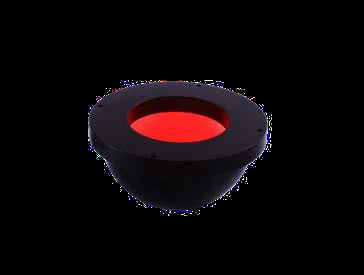

134 mm dia. spherical integral light (LS-WD130)
Model LS-WD130
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- Outer diameter134 mm
- Height69 mm
$309.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Uses a specially designed diffuser plate for highly uniform diffused illumination, eliminating interference caused by surface unevenness.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-WD130 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 2.0 |
| Power white/blue/green (W) | 2.8 |
Mechanical
| Outer diameter (mm) | 134 |
|---|---|
| Inner diameter / viewing window (mm) | 35 |
| Height (mm) | 69 |
| Mounting | 4 x M4 threaded, depth 6; 4 x dia. 3.5 through holes |
| Shipping weight | 0.70 kg |
Other models in the Spherical integral light (LS-WD) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-WD32 | 32 mm dia. | $79.00 | 21 in stock | View |
| LS-WD52 | 52 mm dia. | $109.00 | 18 in stock | View |
| LS-WD5656 | 60 mm dia. | $129.00 | 16 in stock | View |
| LS-WD70 | 70 mm dia. | $149.00 | 20 in stock | View |
| LS-WD100 | 116 mm dia. | $259.00 | 23 in stock | View |
| LS-WD150 | 175 mm dia. | $449.00 | 23 in stock | View |
| LS-WD240 | 260 mm dia. | $809.00 | 19 in stock | View |
| LS-WD260130 | 272 mm dia. | $869.00 | 24 in stock | View |
| LS-WD400200W | 388 mm | $1,629.00 | 19 in stock | View |
