Welding lens, 1/2", C-mount (LS-W1250412X)
Model LS-W1250412X
- Magnification04X~1.2X
- MountC-mount
- Sensor1/2"
- Working distance125mm±5mm
- ApertureF8
- Resolution0.03%
$189.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.32 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Welded lens is an optical lens designed to withstand extreme high temperature environments, the use of optical glass materials, will not affect the quality of the lens due to high temperatures.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-W1250412X |
|---|---|
| WD | 125mm±5mm |
| DOF | 3.5mm |
| F/NO | F8 |
| Object FOV | dia. 6.66 ~ dia. 20 |
| Type | High temperature welding lens |
| Remark | Replaceable attenuator dia. 18 |
Optics
| Magnification | 04X~1.2X |
|---|---|
| MTF0.3(LP/mm) | 0.4@100lp/mm |
| Working distance | 125mm±5mm |
| MTF | >0.4@100lp/mm |
| Aperture | F8 |
| Field of view | dia. 6.66 ~ dia. 20 |
Sensor and imaging
| Resolution | 0.03% |
|---|---|
| Sensor format | 1/2" dia. 8mm |
Mechanical
| Mount | C |
|---|---|
| Weight | 155.2g |

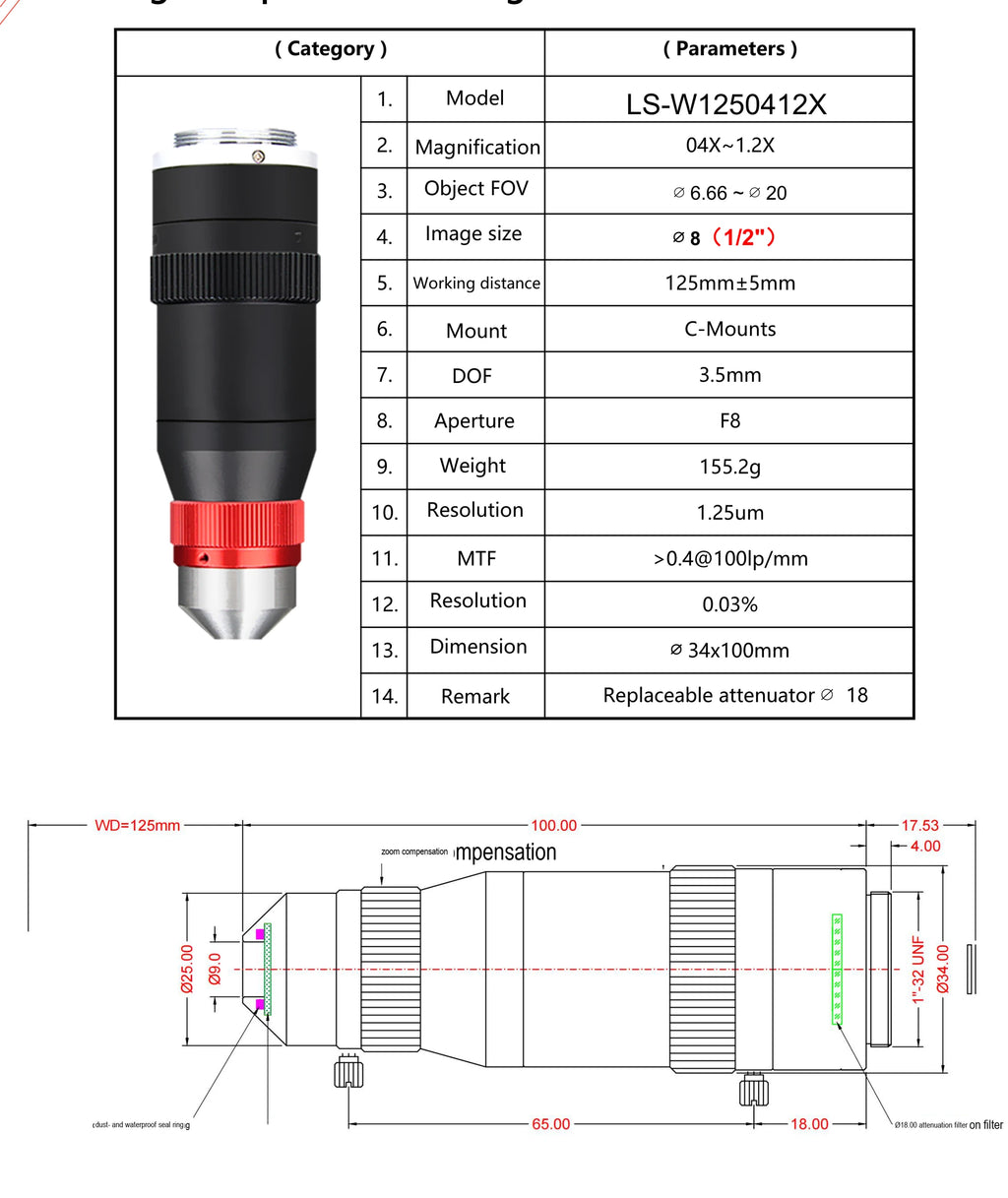

| Dimension | dia. 34x100mm |
