Telecentric lenses

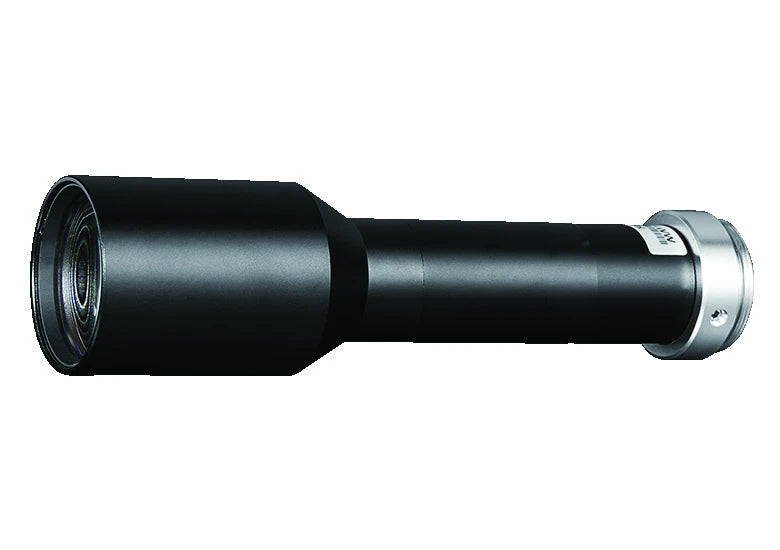

Megapixel telecentric lens, 2x, WD 110 mm, 2/3", C-Mount (LS-VWH20-110AT)
Model LS-VWH20-110AT
- Magnification2.0x
- MountC-mount
- Sensor2/3"
- Working distance110±2
- Aperture18.2
- Resolution6.3
$629.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-VWH20-110AT |
|---|---|
| NA | 0.0536 |
Optics
| Working distance (mm) | 110±2 |
|---|---|
| Aperture (F/#) | 18.2 |
| Distortion typical (max) (%) | 2.0 |
| MTF30 (lp/mm) | 45 |
| Depth of field (mm) | 0.4 |
| Coaxial light | No |
| Iris | No |
| Magnification (x) | 2.0 |
| Telecentricity typical (max) (deg) | <0.1 |
| Field of view with ICX625/655 (8.47x 7.10 sensor) (mm x mm) | 4.2x3.6 |
Sensor and imaging
| Max sensor size (dia. mm) | 11.0(2/3") |
|---|---|
| Resolution (μm) | 6.3 |
| Sensor format | 2/3" |
Mechanical
| Mount | C |
|---|---|
| Length (mm) | 147.4 |
| Shipping weight | 0.50 kg |
