Telecentric lenses

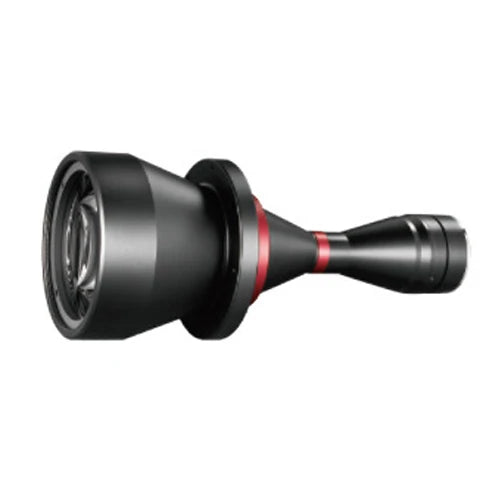

Bi-telecentric lens for 35mm Full cameras, 0.392x, WD 251 mm (LS-VCM35F-110-AL)
Model LS-VCM35F-110-AL
- Magnification0.392x
- MountF-mount
- SensorFull frame
- Working distance251±3
- Field of view92.2x61.5
$2,479.00
In stock - ships the same business day (3 available, order by 2 PM ET)
7.1 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-telecentric lens series for sensors up to 35 mm full frame (44 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-VCM35F-110-AL |
|---|
Optics
| Distortion (% max) | <0.1 |
|---|---|
| Telecentricity (deg max) | <0.1 |
| F/# | 8 |
| MTF30 (lp/mm) | >65 |
| Magnification (x) | 0.392 |
| Working distance (mm) | 251±3 |
| Depth of field (mm) | ±3 |
| Field of view on 36.17x24.11with KAI29050 (mm x mm) | 92.2x61.5 |
| Field of view (dia. mm) | 112 |
| Object-to-image distance I/O (mm) | 628.8 |
Sensor and imaging
| Max sensor size (dia. mm) | 44(35mm) |
|---|---|
| Sensor format | 35 mm full frame (44 mm dia.) |
Mechanical
| Mount | F-Mount/Other |
|---|---|
| Length (mm) | 331.6 |
| Weight (kg) | 5.0 |
