Telecentric lenses

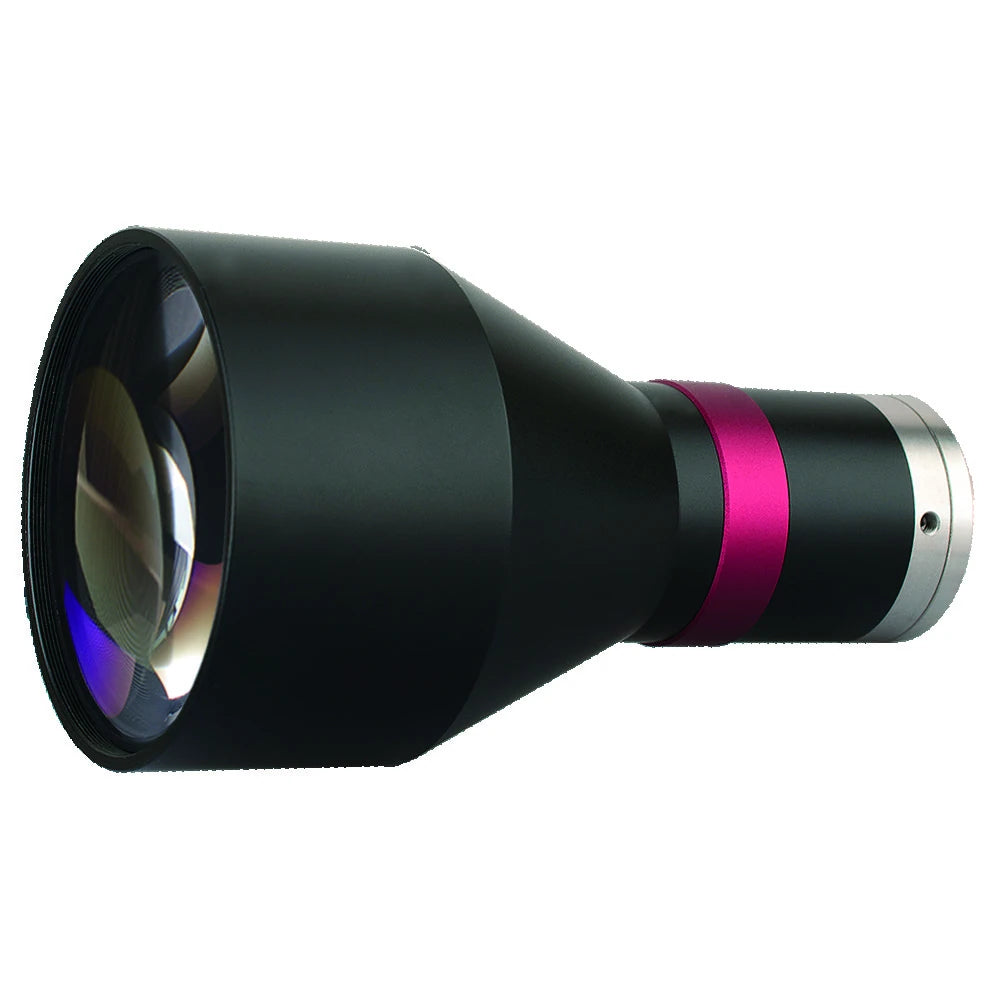

Bi-telecentric lens for 2/3" cameras, 0.317x, WD 110 mm, C-mount (LS-VCM230-36)
Model LS-VCM230-36
- Magnification0.317x
- MountC-mount
- Sensor2/3"
- Working distance110±2
- Field of view36
$1,169.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-telecentric lens series for sensors up to 2/3" (11.4 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-VCM230-36 |
|---|
Optics
| Distortion (% max) | <0.1 |
|---|---|
| Telecentricity (deg max) | <0.1 |
| Magnification (x) | 0.317 |
| Object field of view (dia. mm) | 36 |
| Working distance (mm) | 110±2 |
| Best Aperture (F/#) | 5.4 |
| MTF30 (lp/mm) | >145 |
| Depth of field (mm) | ±4.3@F11 |
| Field of view with ICX625/655 (8.47x7.1 sensor) (mm x mm) | 26.7x22.4 |
| Compatible telecentric led lighting | LS-VCL-36-XW-Y |
Sensor and imaging
| Max sensor size (dia. mm) | 11.4(2/3") |
|---|
Interfaces and I/O
| Length of I/O (mm) | 265±2 |
|---|
Mechanical
| Mount | C-Mount |
|---|---|
| Length (mm) | 137.9 |
| Weight (kg) | 0.4 |
Other models in the Bi-telecentric lens for 2/3" cameras (VCM230 series) series
See all 25 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM230-26 | 0.438x, WD 73 mm, 2/3", C-mount | $999.00 | 2 in stock | View |
| LS-VCM230-26-AL | 0.409x, WD 72 mm, 2/3", C-Mount | $1,039.00 | 2 in stock | View |
| LS-VCM230-36-AL | 0.293x, WD 111 mm, 2/3", C-Mount | $1,209.00 | 2 in stock | View |
| LS-VCM230-42 | 0.271x, WD 118 mm, 2/3", C-mount | $1,279.00 | 5 in stock | View |
| LS-VCM230-42-AL | 0.252x, WD 119 mm, 2/3", C-Mount | $1,309.00 | 3 in stock | View |
| LS-VCM230-48S-AL | 0.238x, WD 138 mm, 2/3", C-mount | $1,379.00 | 5 in stock | View |
| LS-VCM230-48 | 0.238x, WD 128 mm, 2/3", C-mount | $1,379.00 | 5 in stock | View |
| LS-VCM230-48-AL | 0.221x, WD 128 mm, 2/3", C-Mount | $1,409.00 | 3 in stock | View |
| LS-VCM230-56-AL | 0.19x, WD 138 mm, 2/3", C-Mount | $1,549.00 | 4 in stock | View |
| LS-VCM230-64-AL | 0.166x, WD 187 mm, 2/3", C-Mount | $1,689.00 | 5 in stock | View |
| LS-VCM230-64P-AL | 0.165x, WD 159 mm, 2/3", C-Mount | $1,689.00 | 2 in stock | View |
| LS-VCM230-72-AL | 0.147x, WD 178 mm, 2/3", C-Mount | $1,879.00 | 3 in stock | View |
| LS-VCM230-80P-AL | 0.132x, WD 229 mm, 2/3", C-Mount | $1,929.00 | 3 in stock | View |
| LS-VCM230-80-AL | 0.132x, WD 229 mm, 2/3", C-Mount | $1,999.00 | 5 in stock | View |
| LS-VCM230-90-AL | 0.127x, WD 208 mm, 2/3", C-mount | $2,099.00 | 4 in stock | View |
| LS-VCM230-100-AL | 0.114x, WD 254 mm, 2/3", C-Mount | $2,219.00 | 3 in stock | View |
| LS-VCM230-110-AL | 0.095x, WD 251 mm, 2/3", C-Mount | $2,529.00 | 4 in stock | View |
| LS-VCM230-120-AL | 0.095x, WD 280 mm, 2/3", C-mount | $2,609.00 | 5 in stock | View |
| LS-VCM230-136-AL | 0.078x, WD 288 mm, 2/3", C-Mount | $2,969.00 | 5 in stock | View |
| LS-VCM230-150-AL | 0.071x, WD 301 mm, 2/3", C-Mount | $3,209.00 | 5 in stock | View |
| LS-VCM230-170-AL | 0.063x, WD 318 mm, 2/3", C-Mount | $3,579.00 | 4 in stock | View |
| LS-VCM230-190-AL | 0.06x, WD 330 mm, 2/3", C-mount | $3,819.00 | 5 in stock | View |
| LS-VCM230-240-AL | 0.044x, WD 410 mm, 2/3", C-Mount | $4,829.00 | 2 in stock | View |
| LS-VCM230-300-AL | 0.038x, WD 465 mm, 2/3", C-mount | $5,699.00 Quote | Ships in 2-3 weeks | View |
