Telecentric lenses
Bi-telecentric lens for 1.75" cameras, 0.603x, WD 128 mm, 1.75" (LS-VCM175-48-AL)
Model LS-VCM175-48-AL
- Magnification0.603x
- MountF-mount
- Sensor1.75"
- Working distance128±2
- Field of view48
$1,379.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.5 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-telecentric lens series for sensors up to 1.75" (29 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-VCM175-48-AL |
|---|
Optics
| Distortion (% max) | <0.1 |
|---|---|
| Telecentricity (deg max) | <0.1 |
| F/# | 10.5 |
| MTF30 (lp/mm) | >75 |
| Magnification (x) | 0.603 |
| Working distance (mm) | 128±2 |
| Depth of field (mm) | ±1 |
| Field of view (dia. mm) | 48 |
| Object-to-image distance I/O (mm) | 348±3 |
| Best Aperture (F/#) | 11.3 |
| Field of view with CMV12000 (22.53x16.90 sensor) (mm x mm) | 37.3x28.0 |
| Field of view with PYTHON16k (18.43x18.43 sensor) (mm x mm) | 30.5x30.5 |
| Field of view with LineScan-2k/4k/8k (28.8mm sensor) (mm x mm) | 47.7mm |
| Compatible telecentric led lighting | LS-VCL-48-XW-Y |
Sensor and imaging
| Max sensor size (dia. mm) | 29(1.75") |
|---|---|
| Sensor format | 1.75" |

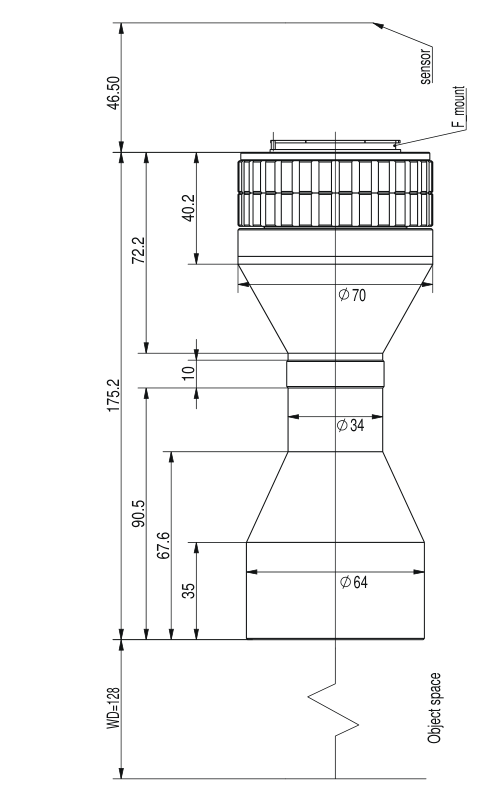

Mechanical
| Mount | F-Mount/Other |
|---|---|
| Length (mm) | 173.8 |
| Weight (kg) | 0.9 |
Other models in the Bi-telecentric lens for 1.75" cameras (VCM175 series) series
See all 20 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM175-26-AL | 1.115x, WD 72 mm, 1.75" | from $999.00 | 10 in stock | View |
| LS-VCM175-36-AL | 0.798x, WD 111 mm, 1.75" | from $1,169.00 | 11 in stock | View |
| LS-VCM175-42-AL | 0.686x, WD 119 mm, 1.75" | from $1,279.00 | 10 in stock | View |
| LS-VCM175-48S-AL | 0.604x, WD 138 mm, 1.75", F or Other-mount | $1,379.00 | 3 in stock | View |
| LS-VCM175-56-AL | 0.517x, WD 138 mm, 1.75" | from $1,519.00 | 10 in stock | View |
| LS-VCM175-64-AL | 0.456x, WD 187 mm, 1.75" | from $1,639.00 | 10 in stock | View |
| LS-VCM175-64P-AL | 0.452x, WD 159 mm, 1.75" | from $1,649.00 | 12 in stock | View |
| LS-VCM175-72-AL | 0.401x, WD 178 mm, 1.75" | from $1,789.00 | 13 in stock | View |
| LS-VCM175-80-AL | 0.36x, WD 229 mm, 1.75" | from $1,929.00 | 12 in stock | View |
| LS-VCM175-90-AL | 0.322x, WD 208 mm, 1.75", F or Other-mount | $2,099.00 | 4 in stock | View |
| LS-VCM175-100-AL | 0.312x, WD 254 mm, 1.75" | from $2,149.00 | 13 in stock | View |
| LS-VCM175-110-AL | 0.261x, WD 251 mm, 1.75" | from $2,459.00 | 11 in stock | View |
| LS-VCM175-120-AL | 0.242x, WD 280 mm, 1.75", F or Other-mount | $2,609.00 | 2 in stock | View |
| LS-VCM175-136-AL | 0.214x, WD 288 mm, 1.75" | from $2,889.00 | 13 in stock | View |
| LS-VCM175-150-AL | 0.193x, WD 301 mm, 1.75" | from $3,129.00 | 15 in stock | View |
| LS-VCM175-170-AL | 0.171x, WD 318 mm, 1.75" | from $3,439.00 | 10 in stock | View |
| LS-VCM175-190-AL | 0.153x, WD 330 mm, 1.75", F or Other-mount | $3,819.00 | 2 in stock | View |
| LS-VCM175-240-AL | 0.12x, WD 410 mm, 1.75" | from $4,669.00 | 12 in stock | View |
| LS-VCM175-300-AL | 0.097x, WD 465 mm, 1.75", F or Other-mount | $5,699.00 Quote | Ships in 2-3 weeks | View |
