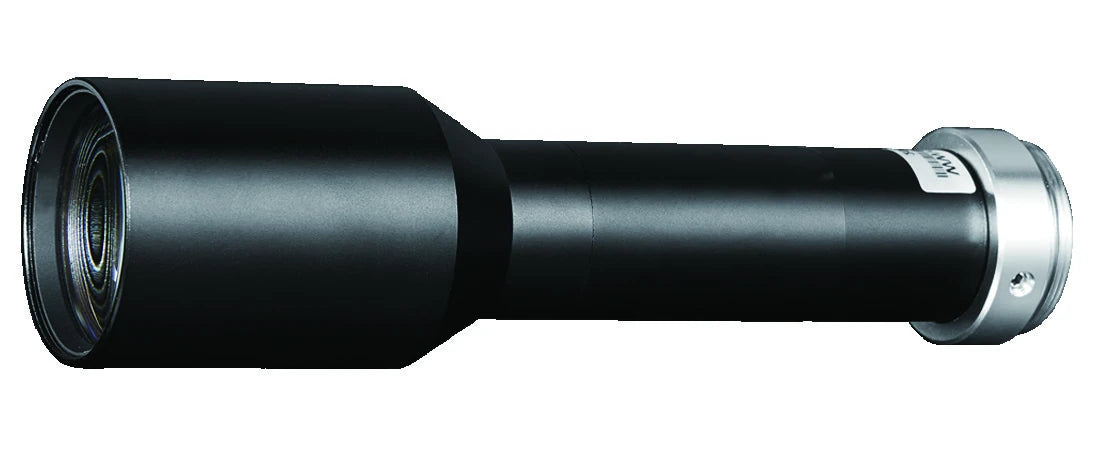

Telecentric lens for AOI inspection, WD 110-220 mm, 1x, WD 110 mm, 1.1", C-Mount (LS-TCL-2904)
  • Telecentric lens for AOI inspection, WD 110-220 mm, 1x, WD 110 mm, 1.1", C-Mount (LS-TCL-2904)

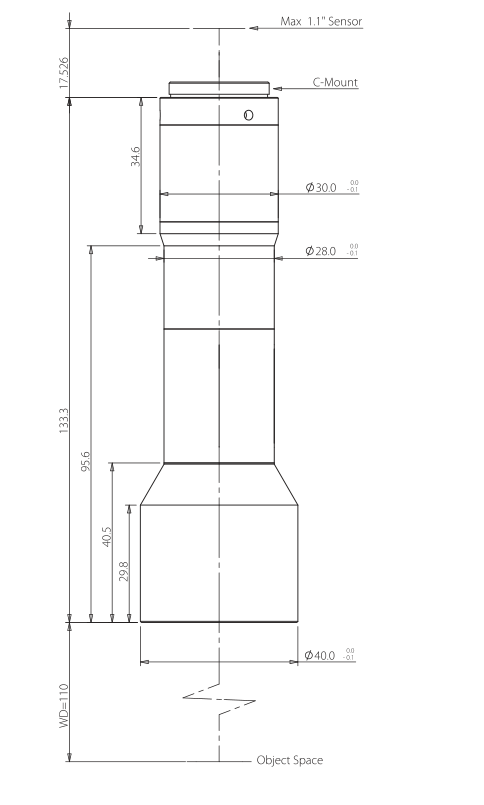

  • LS-TCL-2904 dimensions (mm)

Telecentric lenses

Telecentric lens for AOI inspection, WD 110-220 mm, 1x, WD 110 mm, 1.1", C-Mount (LS-TCL-2904)

Model LS-TCL-2904

  • Magnification1.0x
  • MountC-mount
  • Sensor1.1"
  • Working distance110±2
  • Field of view14.2x10.4
$1,129.00

Ships in 2-3 weeks

0.63 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Telecentric lens for AOI inspection, WD 110-220 mm, 1x, WD 110 mm, 1.1", C-Mount (LS-TCL-2904)LS-TCL-2904

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Large target area, high resolution object-side telecentric lenses for AOI: large FOV with low magnification and long working distance, supporting up to 1.1" 12M class high-speed cameras.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2904

Optics

F/#7
MTF30 (lp/mm)>105
Distortion (% max)<0.13
Telecentricity (deg max)<0.18
Coaxial lightNO
Magnification (x)1.0
Working distance (mm)110±2
Depth of field (mm)±0.6@F16
Best Aperture (F/#)7
Field of view with IMX253 (14.19x10.38 sensor) (mm x mm)14.2x10.4
IrisNo

Sensor and imaging

Max sensor size (dia. mm)18.0(1.1")
Sensor format1.1"

Interfaces and I/O

Length of I/O (mm)261±2

Mechanical

MountC-Mount
Length (mm)133.3
Shipping weight0.63 kg
