Macro/megapixel telecentric lens, WD 65 mm
  • Macro/megapixel telecentric lens, WD 65 mm

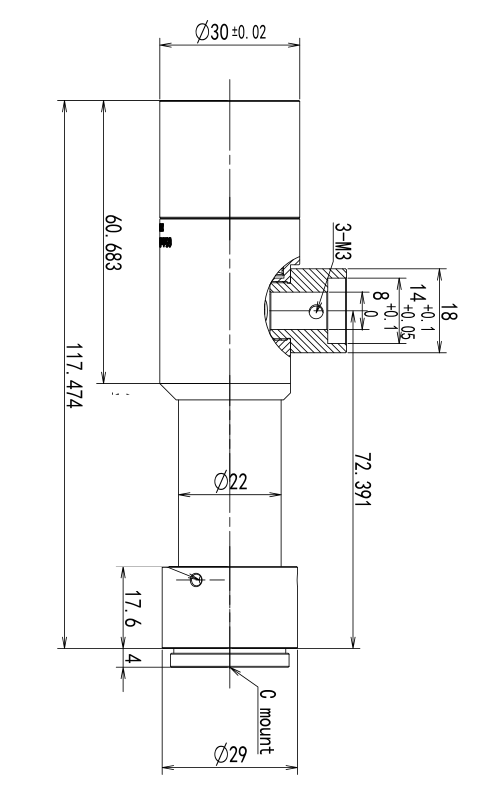

  • LS-TCL-2827 dimensions (mm)

Representative photo of this series

Telecentric lenses

Macro/megapixel telecentric lens, WD 65 mm, 6x, 2/3", C-mount, 117.47 mm long (LS-TCL-2827)

Model LS-TCL-2827

  • Magnification6x
  • MountC-mount
  • Sensor2/3"
  • Working distance65 mm
  • Resolution5
  • Field of view1x0.8
$849.00

Ships in 2-3 weeks

0.47 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Macro/megapixel telecentric lens, WD 65 mm, 6x, 2/3", C-mount, 117.47 mm long (LS-TCL-2827)LS-TCL-2827

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Full range of object-side telecentric fixed-magnification lenses with multiple working distances, magnifications and CCD sizes to select. High contrast, low distortion and high resolution in a compact design, with coaxial illumination options.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2827

Optics

Working distance (mm)65
Distortion (% max)<0.05
Coaxial lightYes
Magnification (x)6
WFNO (working F/#)24.6
Depth of field (mm)0.027
Field of view on 1/2" (6.4x4.8) (mm x mm)1x0.8
Field of view on 1/1.8" (7.13x5.37) (mm x mm)1.1x0.8
Field of view on 2/3" (8.8x6.6) (mm x mm)1.4x1.1

Sensor and imaging

Max sensor size (dia. mm)11.0(2/3")
Resolution (μm)5
Sensor format2/3"

Mechanical

MountC-mount
Length (mm)117.47
Shipping weight0.47 kg
