Macro/megapixel telecentric lens, WD 65 mm
  • Macro/megapixel telecentric lens, WD 65 mm

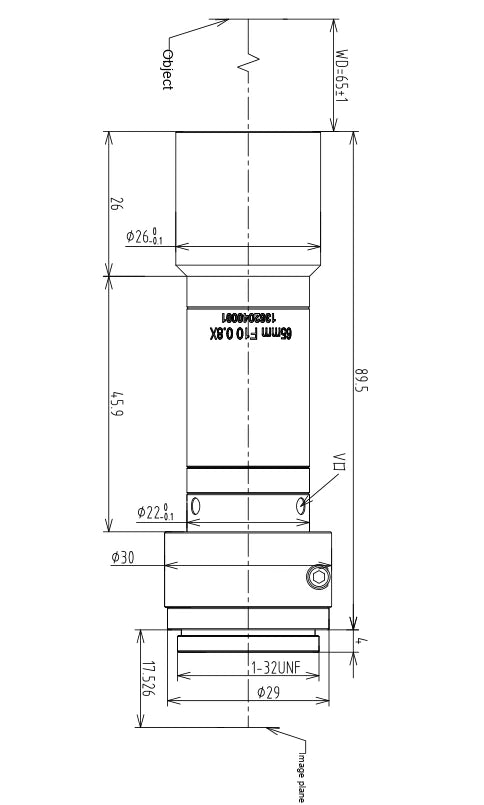

  • LS-TCL-2814 dimensions (mm)

Representative photo of this series

Telecentric lenses

Macro/megapixel telecentric lens, WD 65 mm, 0.8x, 2/3", C-mount, 89.50 mm long (LS-TCL-2814)

Model LS-TCL-2814

  • Magnification0.8x
  • MountC-mount
  • Sensor2/3"
  • Working distance65 mm
  • Resolution6.25
  • Field of view8x6
$1,199.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.55 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Macro/megapixel telecentric lens, WD 65 mm, 0.8x, 2/3", C-mount, 89.50 mm long (LS-TCL-2814)LS-TCL-2814

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Full range of object-side telecentric fixed-magnification lenses with multiple working distances, magnifications and CCD sizes to select. High contrast, low distortion and high resolution in a compact design, with coaxial illumination options.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2814

Optics

Working distance (mm)65
Distortion (% max)<0.05
Coaxial lightNo
Magnification (x)0.8
WFNO (working F/#)10
Depth of field (mm)2
Field of view on 1/2" (6.4x4.8) (mm x mm)8x6
Field of view on 1/1.8" (7.13x5.37) (mm x mm)8.9x6.7
Field of view on 2/3" (8.8x6.6) (mm x mm)11x8.2

Sensor and imaging

Max sensor size (dia. mm)11.0(2/3")
Resolution (μm)6.25
Sensor format2/3"

Mechanical

MountC-mount
Length (mm)89.50
Shipping weight0.55 kg

Other models in the Macro/megapixel telecentric lens, WD 65 mm (LS-TCL-S89) series

See all 18 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2826 6x, WD 65 mm, 2/3", C-mount $849.00 5 in stock View
LS-TCL-2827 6x, WD 65 mm, 2/3", C-mount $849.00 4 in stock View
LS-TCL-2812 0.5x, WD 65 mm, 2/3", C-mount $1,099.00 2 in stock View
LS-TCL-2813 0.5x, WD 65 mm, 2/3", C-mount $1,099.00 4 in stock View
LS-TCL-2815 0.8x, WD 65 mm, 2/3", C-mount $1,199.00 5 in stock View
LS-TCL-2824 4x, WD 65 mm, 2/3", C-mount $1,219.00 2 in stock View
LS-TCL-2825 4x, WD 65 mm, 2/3", C-mount $1,219.00 2 in stock View
LS-TCL-2822 3x, WD 65 mm, 2/3", C-mount $1,229.00 3 in stock View
LS-TCL-2823 3x, WD 65 mm, 2/3", C-mount $1,229.00 2 in stock View
LS-TCL-2816 1x, WD 65 mm, 2/3", C-mount $1,239.00 3 in stock View
LS-TCL-2817 1x, WD 65 mm, 2/3", C-mount $1,239.00 3 in stock View
LS-TCL-2818 1.5x, WD 65 mm, 2/3", C-mount $1,239.00 4 in stock View
LS-TCL-2819 1.5x, WD 65 mm, 2/3", C-mount $1,239.00 5 in stock View
LS-TCL-2820 2x, WD 65 mm, 2/3", C-mount $1,239.00 4 in stock View
LS-TCL-2821 2x, WD 65 mm, 2/3", C-mount $1,239.00 4 in stock View
LS-TCL-2810 0.3x, WD 65 mm, 2/3", C-mount $1,529.00 2 in stock View
LS-TCL-2811 0.3x, WD 65 mm, 2/3", C-mount $1,529.00 4 in stock View
