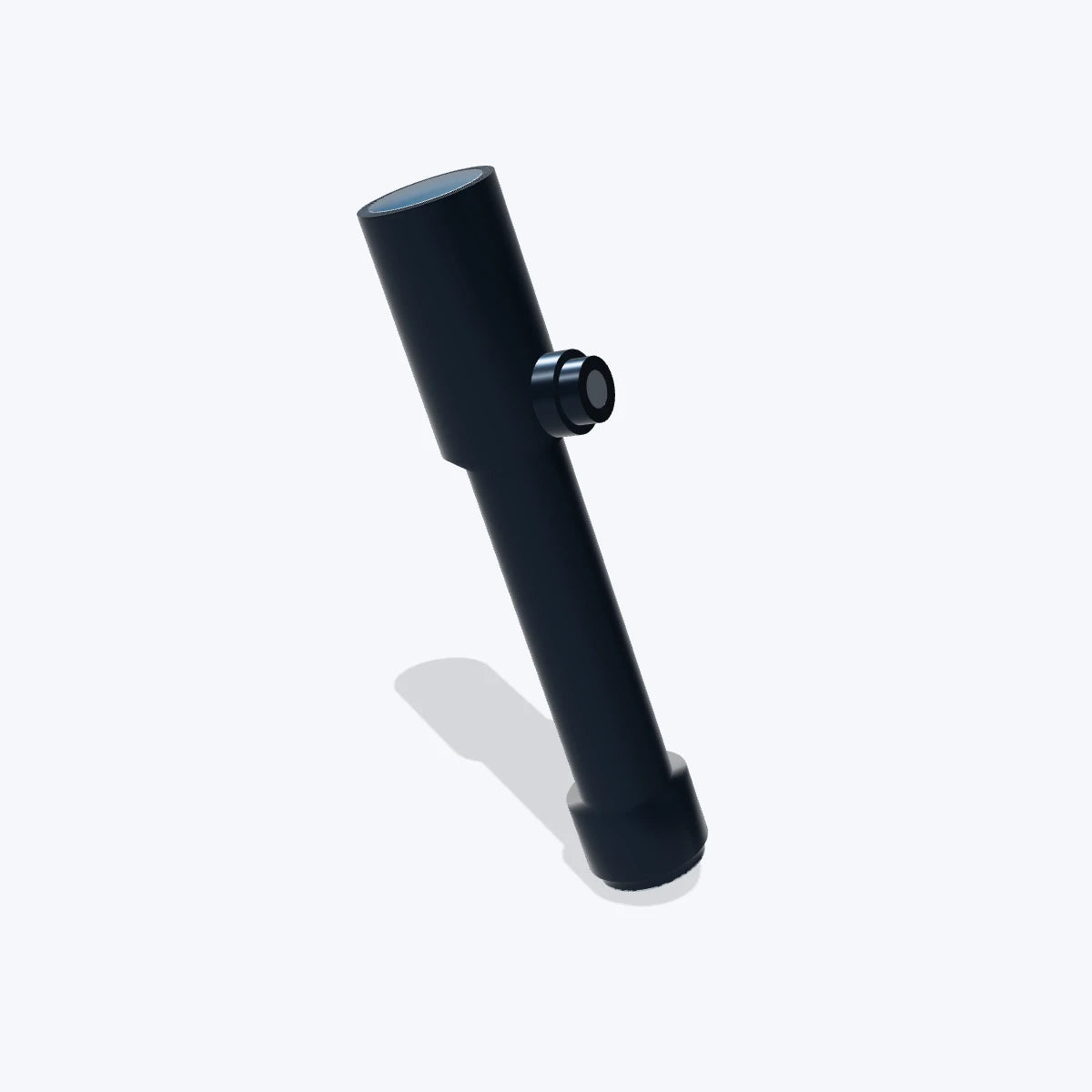

LS-TCL-2809 — Telecentric lenses. Dimension-based illustration; details and finish are representative.
  • LS-TCL-2809 — Telecentric lenses. Dimension-based illustration; details and finish are representative.

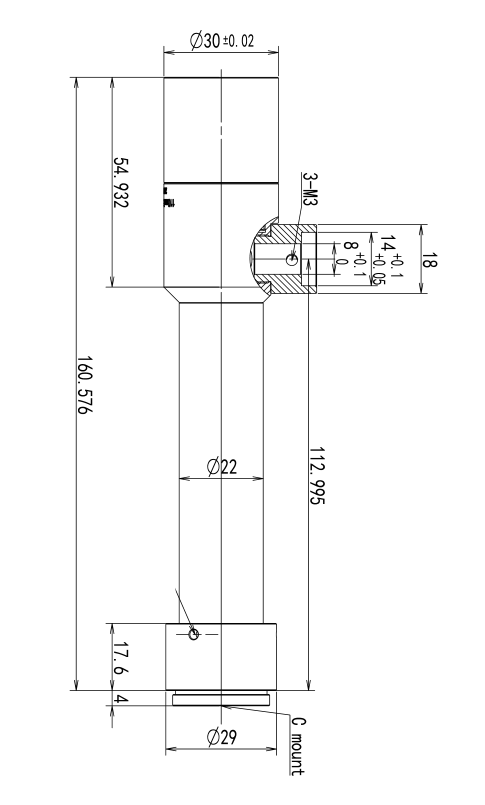

  • LS-TCL-2809 dimensions (mm)

Drawing-based illustration. Exterior profile follows this model's own dimensioned drawing; traced contours and port reach are approximate. Glass aperture, small surface details and finish are representative.

Telecentric lenses

Macro/megapixel telecentric lens, WD 110 mm, 6x, 2/3", C-mount, 160.576 mm long (LS-TCL-2809)

Model LS-TCL-2809

  • Magnification6x
  • MountC-mount
  • Sensor2/3"
  • Working distance110 mm
  • Resolution5
  • Field of view1x0.8
$849.00

Ships in 2-3 weeks

0.47 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Macro/megapixel telecentric lens, WD 110 mm, 6x, 2/3", C-mount, 160.576 mm long (LS-TCL-2809)LS-TCL-2809

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Full range of object-side telecentric fixed-magnification lenses with multiple working distances, magnifications and CCD sizes to select. High contrast, low distortion and high resolution in a compact design, with coaxial illumination options.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2809

Optics

Working distance (mm)110
Distortion (% max)<0.04
Coaxial lightYes
Magnification (x)6
WFNO (working F/#)38.7
Depth of field (mm)0.04
Field of view on 1/2" (6.4x4.8) (mm x mm)1x0.8
Field of view on 1/1.8" (7.13x5.37) (mm x mm)1.1x0.8
Field of view on 2/3" (8.8x6.6) (mm x mm)1.4x1.1

Sensor and imaging

Max sensor size (dia. mm)11.0(2/3")
Resolution (μm)5
Sensor format2/3"

Mechanical

MountC-mount
Length (mm)160.576
Shipping weight0.47 kg
