Macro/megapixel telecentric lens, WD 110 mm

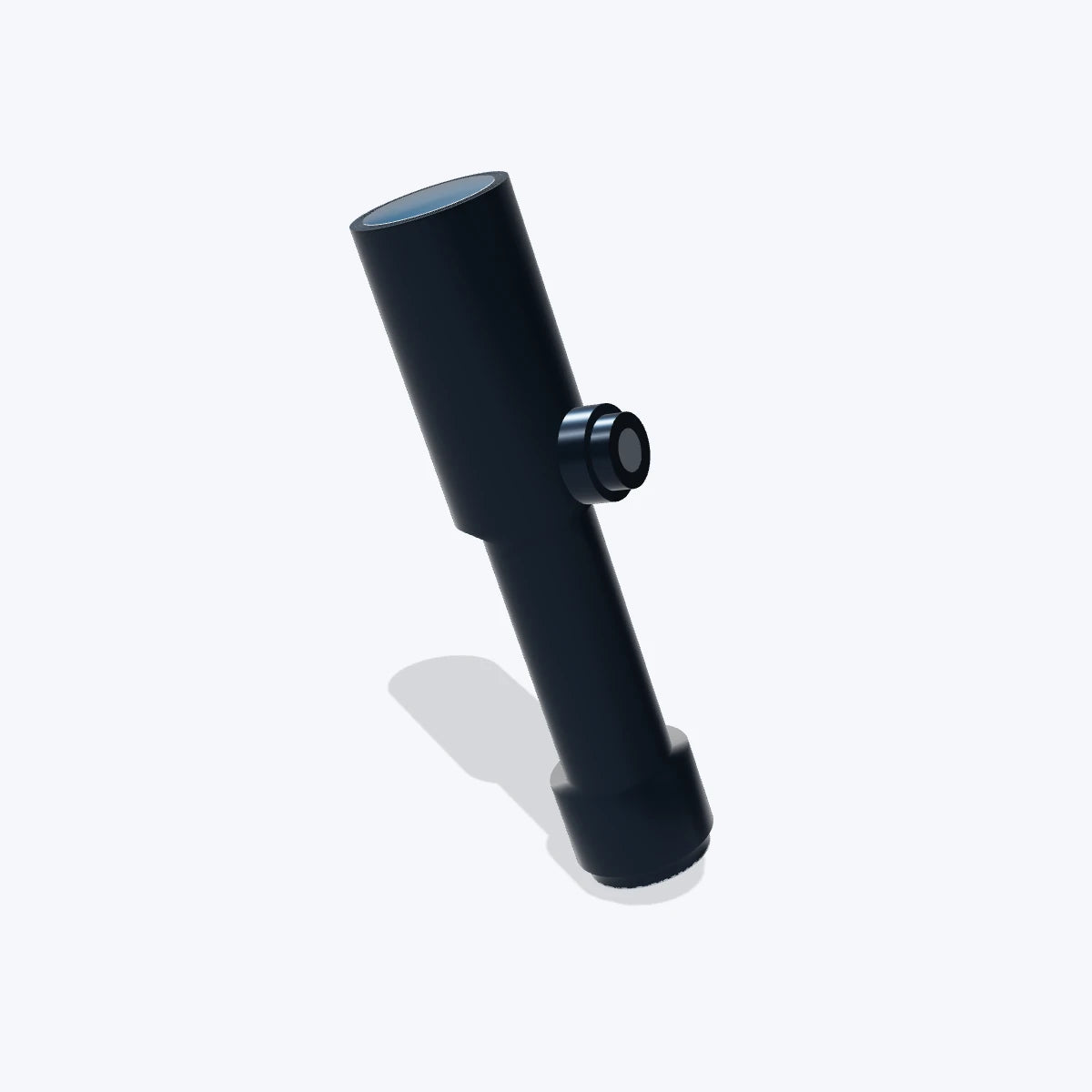

Representative photo of this series

Telecentric lenses

Macro/megapixel telecentric lens, WD 110 mm, 4x, 2/3", C-mount, 134.47 mm long (LS-TCL-2807)

Model LS-TCL-2807

Magnification4x
MountC-mount
Sensor2/3"
Working distance110 mm
Resolution5
Field of view1.6x1.2

$1,219.00

Ships in 2-3 weeks

0.47 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Full range of object-side telecentric fixed-magnification lenses with multiple working distances, magnifications and CCD sizes to select. High contrast, low distortion and high resolution in a compact design, with coaxial illumination options.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2807

Optics

Working distance (mm)	110
Distortion (% max)	<0.02
Coaxial light	Yes
Magnification (x)	4
WFNO (working F/#)	22
Depth of field (mm)	0.06
Field of view on 1/2" (6.4x4.8) (mm x mm)	1.6x1.2
Field of view on 1/1.8" (7.13x5.37) (mm x mm)	1.7x1.3
Field of view on 2/3" (8.8x6.6) (mm x mm)	2.2x1.6

Sensor and imaging

Max sensor size (dia. mm)	11.0(2/3")
Resolution (μm)	5
Sensor format	2/3"

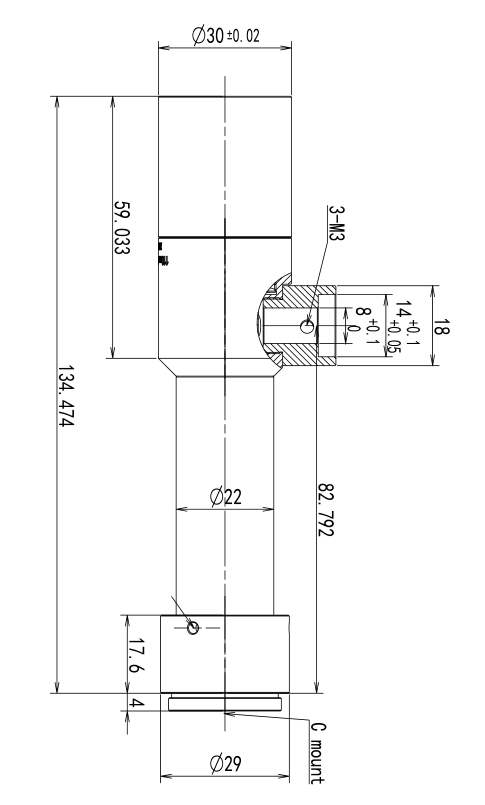

Mechanical

Mount	C-mount
Length (mm)	134.47
Shipping weight	0.47 kg

Downloads

Datasheet (PDF)LS-TCL-2807 · 1.8 MB

Features

Full range of object-side telecentric fixed magnification lenses
Multiple working distances / magnifications / sensor sizes for selection
Supports all kinds of megapixel cameras
High contrast, low distortion, high resolution
Compact design with coaxial illumination options
Full range of object side telecentric fixed magnification lenses, with multiple working distances / magnifications / CCD sizes for selection
Perfect image and supports all kinds of megapixel cameras
High contrast, low distortion, high resolution, compact design with coaxial illumination options

Applications

High-precision visual positioning
High-precision visual positioning and similar applications
