Telecentric lenses
2.7x, WD 110 mm, 2/3", C-mount Telecentric Lens (LS-TCL-2278)
Model LS-TCL-2278
- Magnification2.7x
- MountC-mount
- Sensor2/3"
- Working distance110 mm
- Aperture18.4
$1,239.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2.7x, WD 110 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 2.7x; working distance 110 mm; max sensor size 11.0 mm (2/3"); object-side resolution 4.6 µm; image-side f/# 18.4.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2278 |
|---|
Optics
| Magnification (x) | 2.7 |
|---|---|
| Working distance (mm) | 110 |
| Image-side F/# | 18.4 |
| Image-side MTF30 (lp/mm) | 50 |
| Theoretical depth of field (mm) | ±0.1@F18.4 |
| Object-side resolution (um) | 4.6 |
| Numerical aperture NA | 0.07356 |
| Image-side distortion (% max) | <0.02 |
| Object-side telecentricity (deg max) | <0.01 |

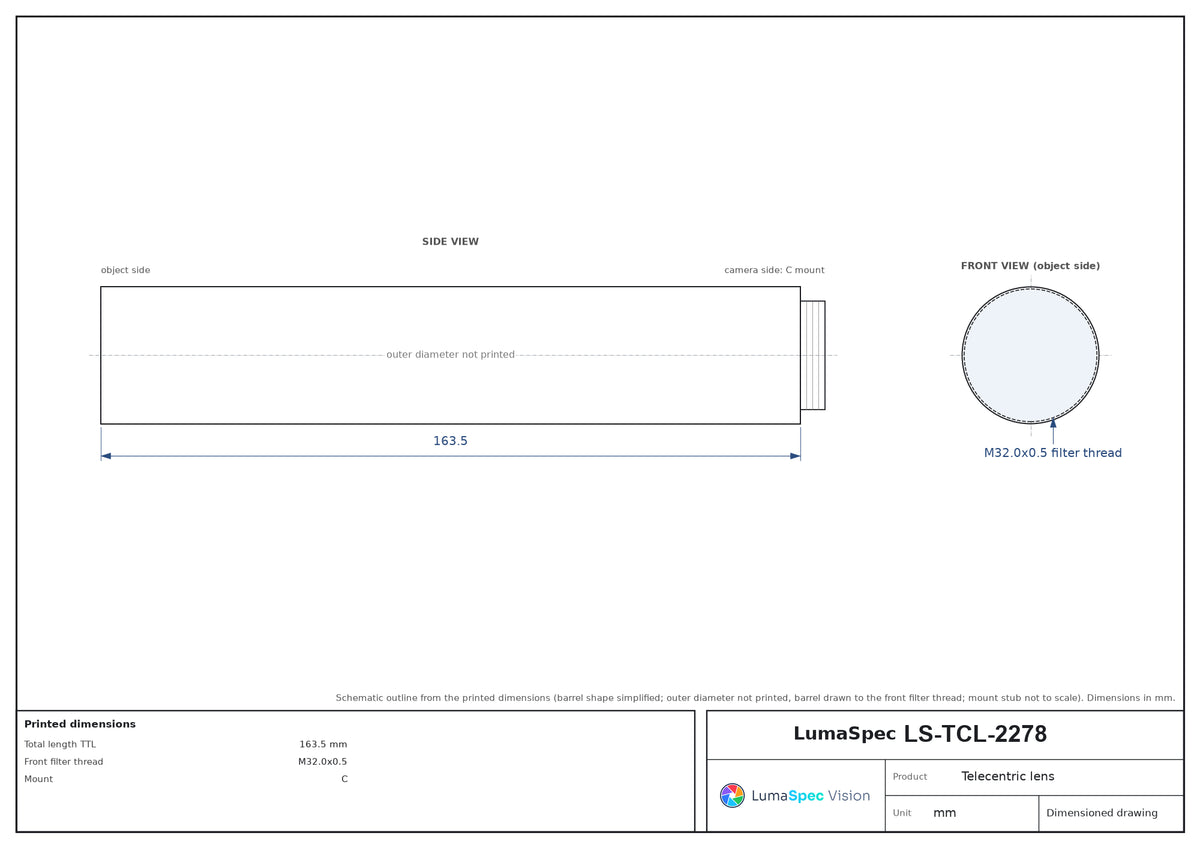

| Total length TTL (mm) | 163.5 |
| Coaxial illumination | Yes |
| Front filter thread | M32.0x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 11.0(2/3") |
|---|
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 0.50 kg |
Photo shows a representative model of this series; see the specifications for this model.
