Telecentric lenses
1.3x, WD 98 mm, 1.1", C-mount Telecentric Lens (LS-TCL-2227)
Model LS-TCL-2227
- Magnification1.3x
- MountC-mount
- Sensor1.1"
- Working distance98 mm
- Aperture8.4
$1,249.00
Ships in 2-3 weeks
0.62 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.3x, WD 98 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 1.3x; working distance 98 mm; max sensor size 18.0 mm (1.1"); object-side resolution 4.4 µm; image-side f/# 8.4.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2227 |
|---|
Optics
| Magnification (x) | 1.3 |
|---|---|
| Working distance (mm) | 98 |
| Image-side F/# | 8.4 |
| Image-side MTF30 (lp/mm) | 80 |
| Theoretical depth of field (mm) | ±0.25@F10.4 |
| Object-side resolution (um) | 4.4 |
| Numerical aperture NA | 0.07681 |
| Image-side distortion (% max) | 0.1 |
| Object-side telecentricity (deg max) | 0.1 |

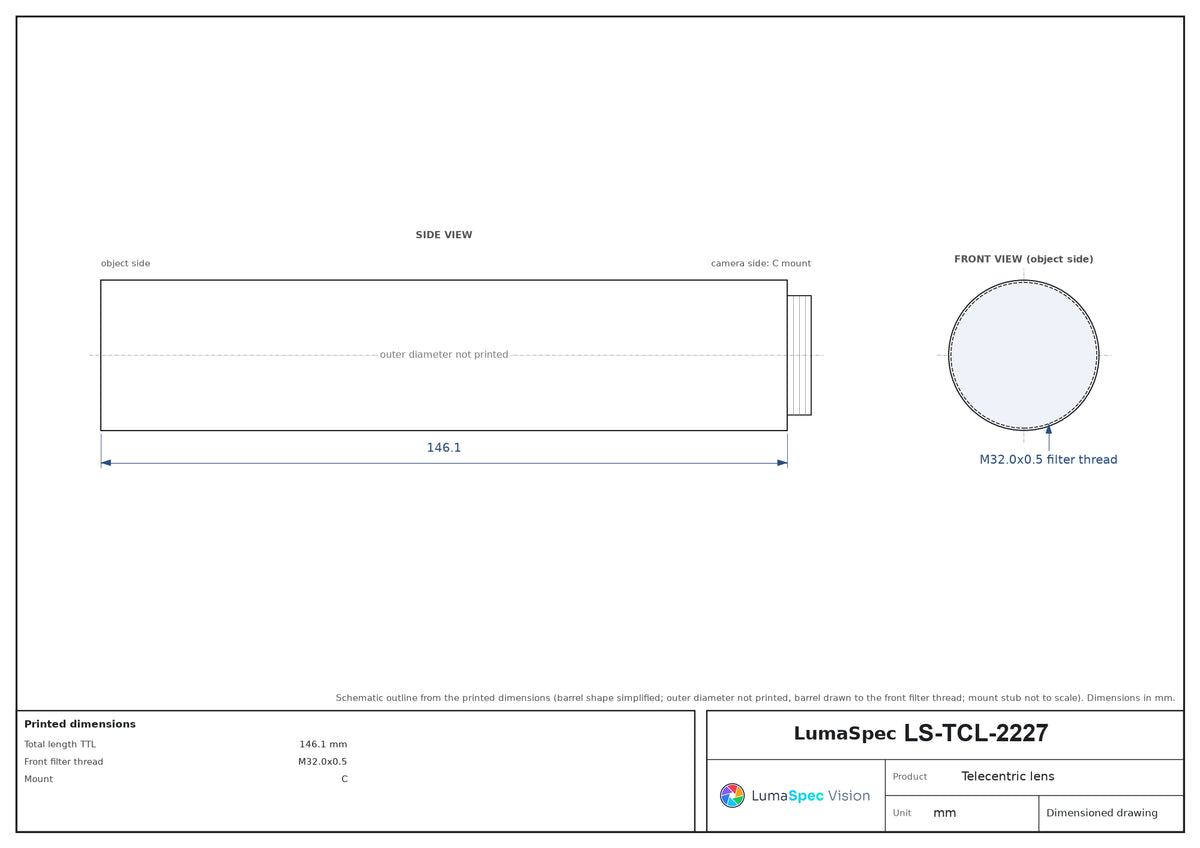

| Total length TTL (mm) | 146.1 |
| Coaxial illumination | No |
| Front filter thread | M32.0x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 18.0(1.1") |
|---|
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 0.62 kg |
Photo shows a representative model of this series; see the specifications for this model.
