Telecentric lenses

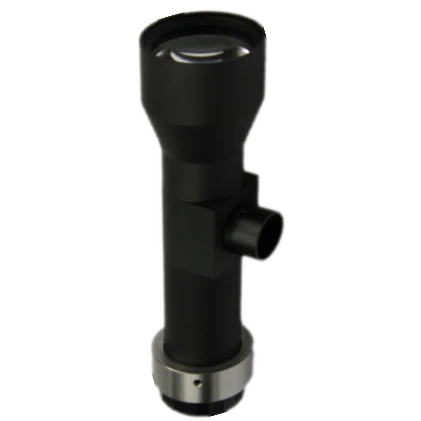

Object-Side Telecentric Lens, 0.45x, 135 mm WD, 2/3", coaxial light port (LS-TCL-0809)
Model LS-TCL-0809
- Magnification0.45
- MountC-mount
- Sensor2/3"
- Working distance135±2 mm
- ApertureF15.8
$1,149.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Object-Side Telecentric Lens, 0.45x, 135 mm WD, 2/3", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0809 |
|---|
Optics
| Magnification | 0.45 |
|---|---|
| Working distance | 135±2 mm |
| F-number | F15.8 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.1% |
| Depth of field | 6.24 mm |
| Object-side resolution | 23 μm |
| Object-side telecentricity | ≤ 0.1° |
| Coaxial light | Supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

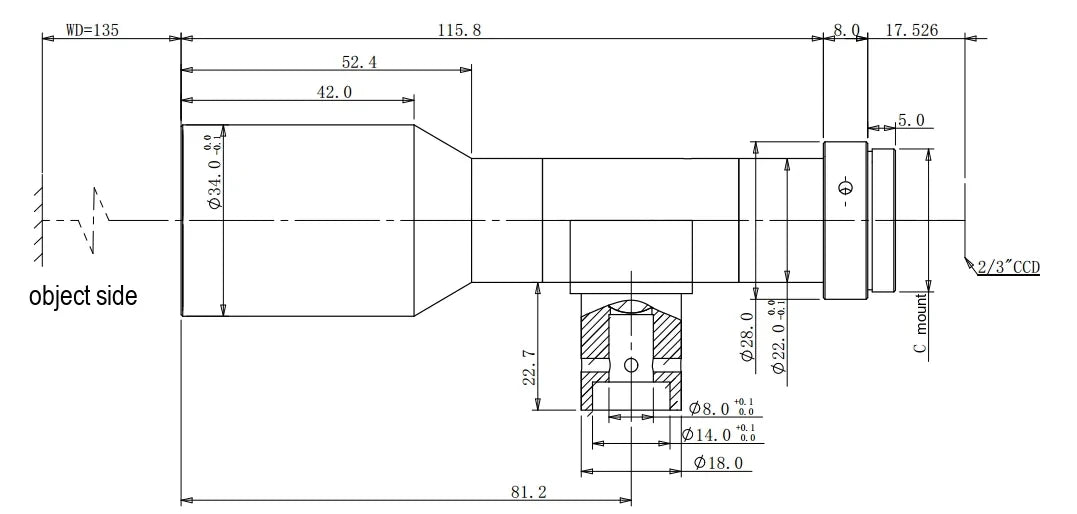

| Dimension | Φ34 mm × 123.8 mm |
|---|---|
| Weight | 150 g |
| Shipping weight (estimated) | 0.31 kg |
