Object-Side Telecentric Lens, 0.5x, 110 mm WD, 2/3" (LS-MY-05-110-V3)

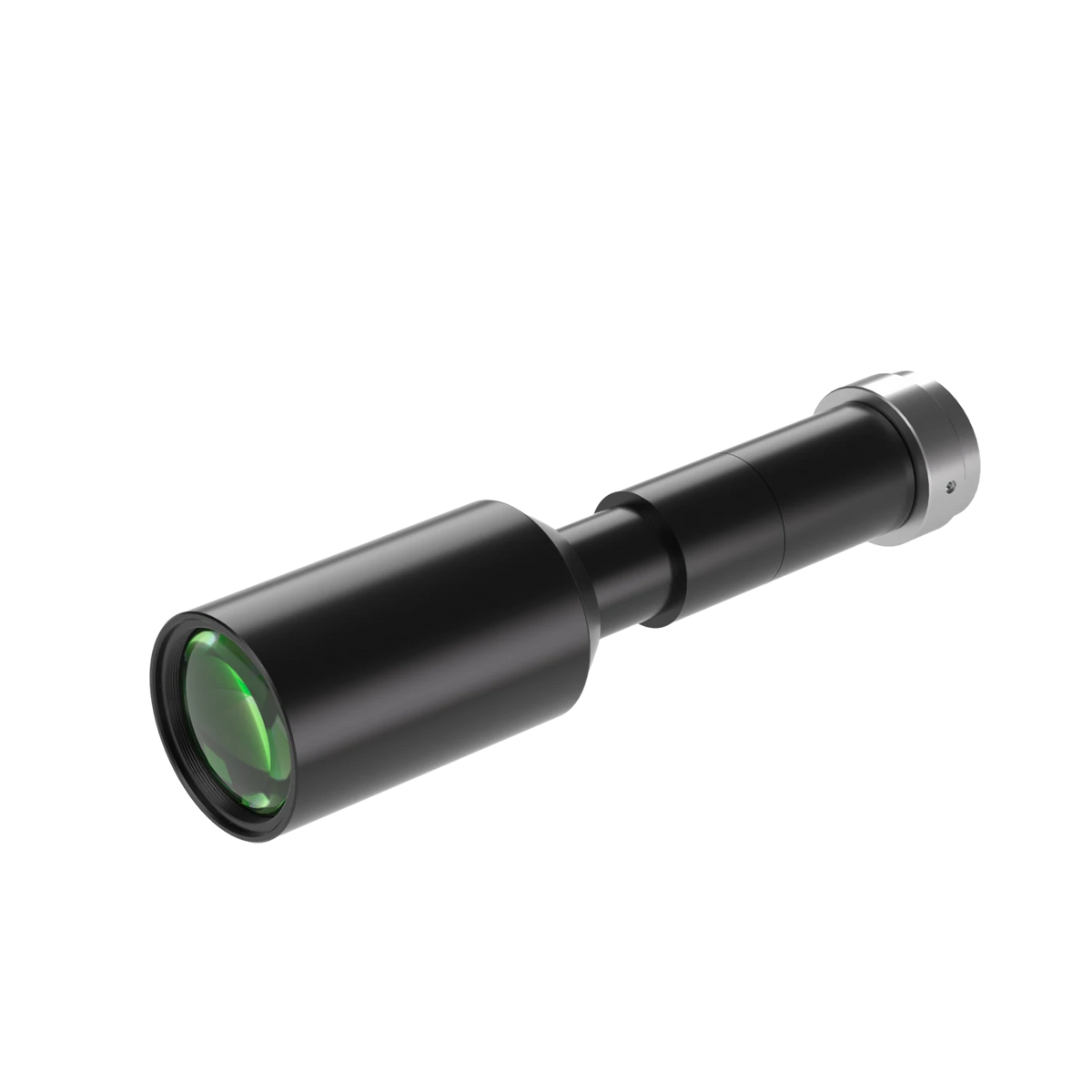

  • Object-Side Telecentric Lens, 0.5x, 110 mm WD, 2/3" (LS-MY-05-110-V3)

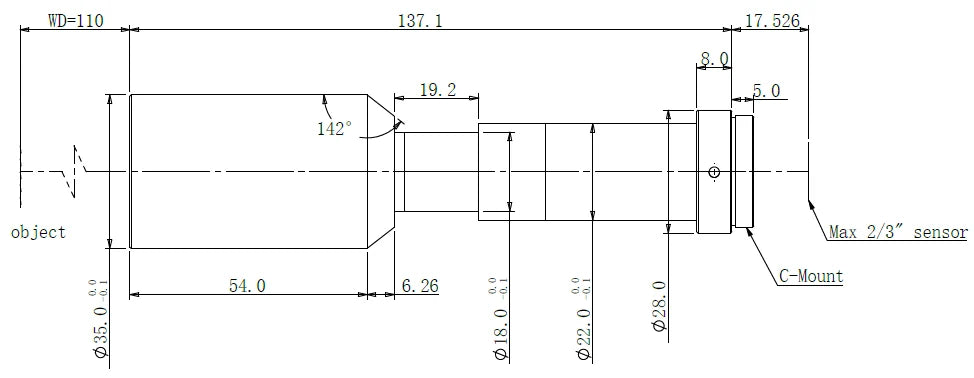

  • LS-MY-05-110-V3 dimensions (mm)

Telecentric lenses

Object-Side Telecentric Lens, 0.5x, 110 mm WD, 2/3", object-side resolution 12.9 μm (LS-TCL-0764)

Model LS-TCL-0764

  • Magnification0.5
  • MountC-mount
  • Sensor2/3"
  • Working distance110 mm
  • ApertureF9.6
$929.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Object-Side Telecentric Lens, 0.5x, 110 mm WD, 2/3", object-side resolution 12.9 μm (LS-TCL-0764)LS-TCL-0764

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Object-Side Telecentric Lens, 0.5x, 110 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0764

Optics

Magnification0.5
Working distance110 mm
F-numberF9.6
Image sizeΦ11 mm
Depth of field±1.5 mm @F9.6
Distortion≤0.2%
Object-side resolution12.9 μm
Object-side telecentricity≤0.2°
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10 ~ 50 °C
CertificationRoHS2.0

Mechanical

Dimension137.1 mm × Φ35 mm
Shipping weight (estimated)0.66 kg
