Telecentric lenses

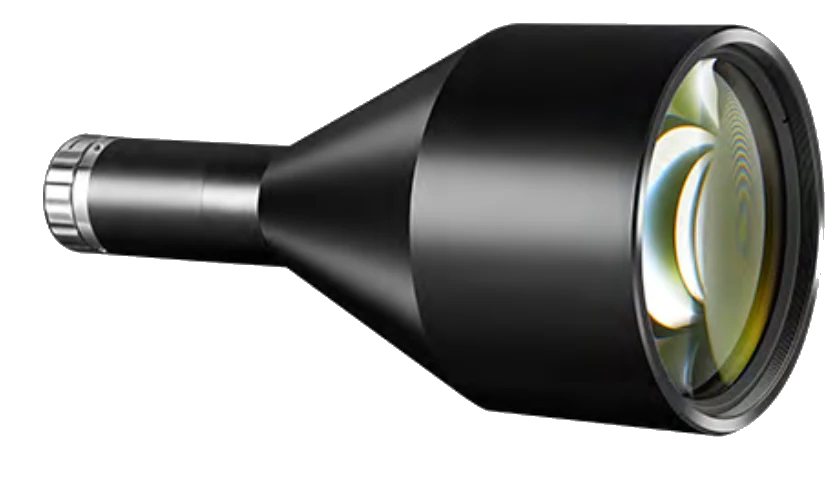

Object-Side Telecentric Lens, 0.23x, 220 mm WD, 1.1" (LS-TCL-0641)
Model LS-TCL-0641
- Magnification0.23
- MountC-mount
- Sensor1.1"
- Working distance220 mm
- ApertureF8
$1,609.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Object-Side Telecentric Lens, 0.23x, 220 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0641 |
|---|
Optics
| Magnification | 0.23 |
|---|---|
| Working distance | 220 mm |
| Image size | 1.1" |
| F-number | F8 |
| Depth of field | ±6 mm @F8 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 19.8 μm |
| Object-side telecentricity | ≤ 0.18° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

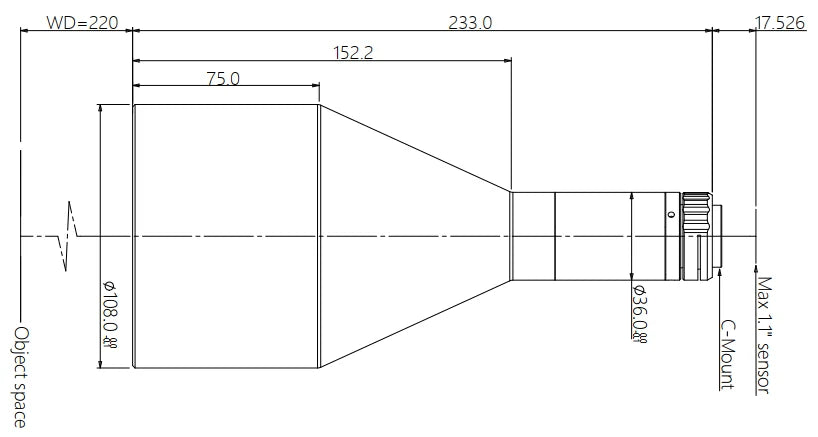

| Dimension | 233 mm × Φ108 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
