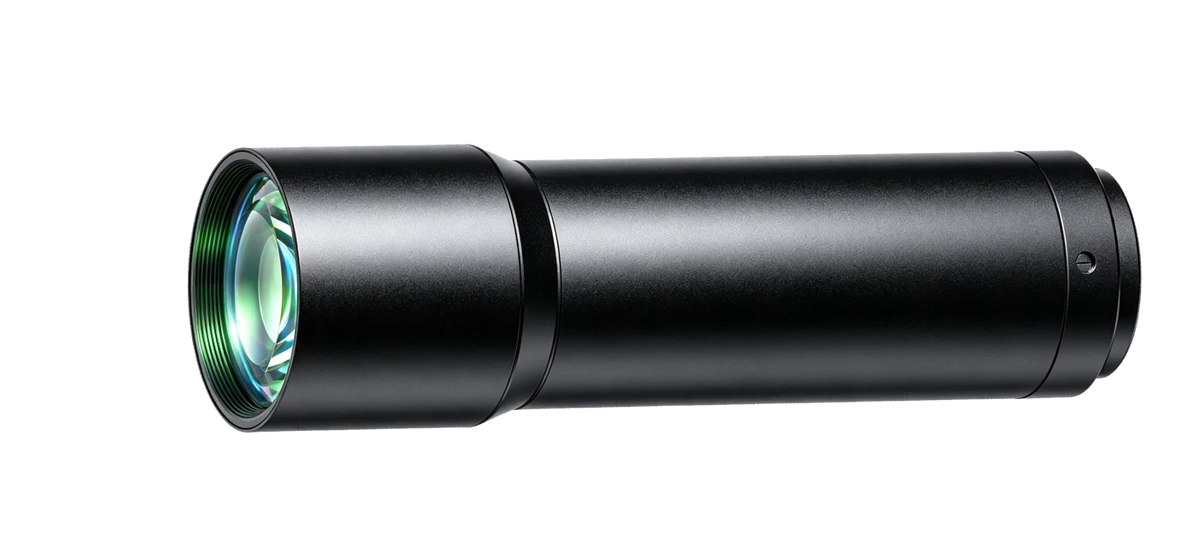

Object-Side Telecentric Lens, 0.3x, 534 mm WD, 1.1" (LS-KS-03-534)
  • Object-Side Telecentric Lens, 0.3x, 534 mm WD, 1.1" (LS-KS-03-534)

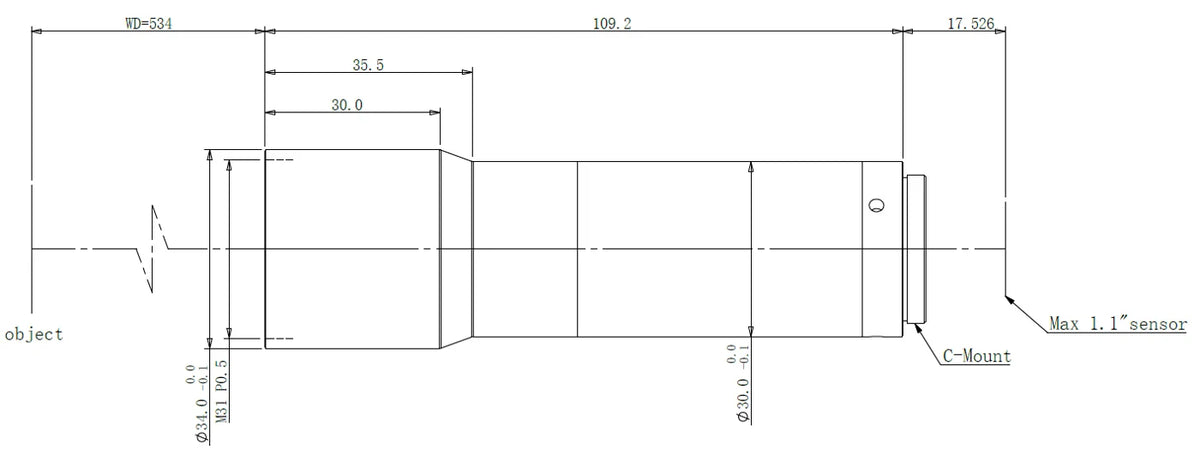

  • LS-TCL-0572 dimensions (mm)

Telecentric lenses

Quasi-Telecentric Lens, 0.3x, 534 mm WD, 1.1" (LS-TCL-0572)

Model LS-TCL-0572

  • Magnification0.3
  • MountC-mount
  • Sensor1.1"
  • Working distance534 mm
  • ApertureF7
$1,339.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Quasi-Telecentric Lens, 0.3x, 534 mm WD, 1.1" (LS-TCL-0572)LS-TCL-0572

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Object-Side Telecentric Lens, 0.3x, 534 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0572

Optics

Magnification0.3
Working distance534 mm
Image size1.1"
F-numberF7
Depth of field6.2 mm
Distortion≤ 0.2027%
Object-side resolution15.7 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension109.2 mm × Φ34 mm
Shipping weight (estimated)0.66 kg
