Telecentric lenses

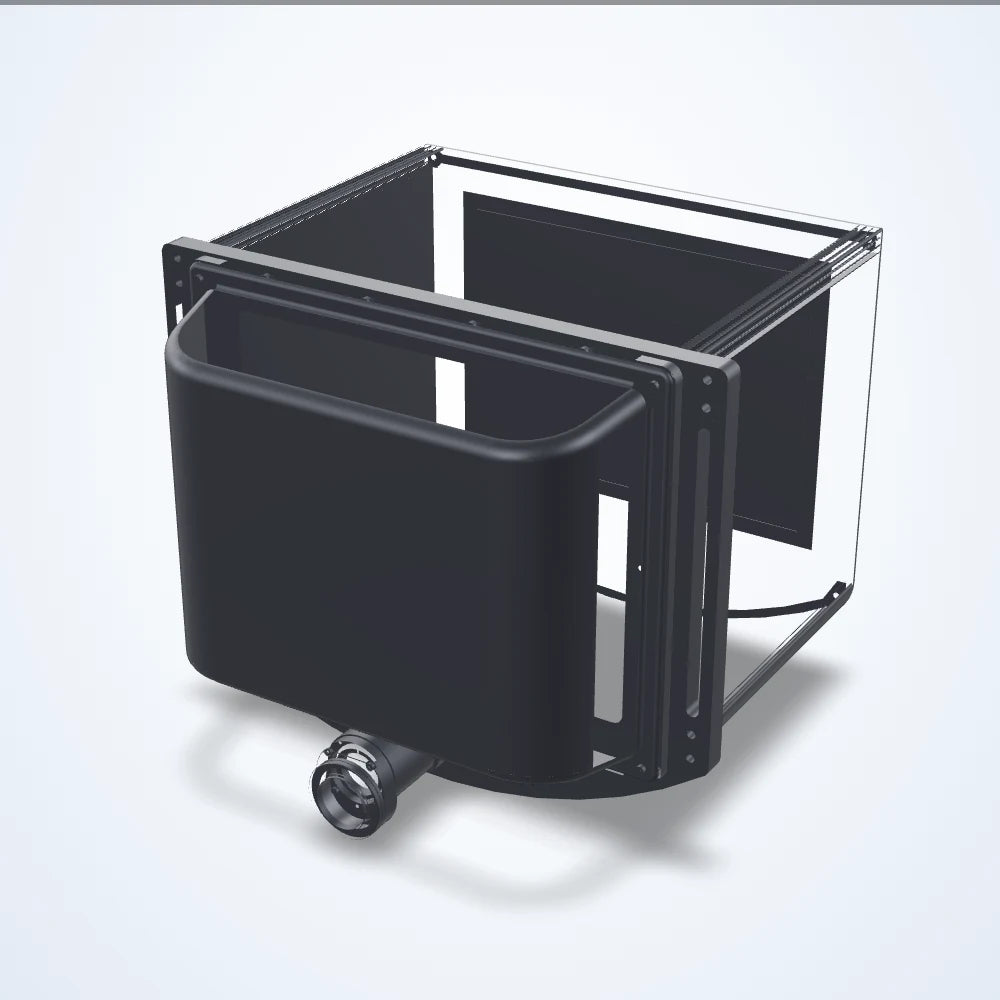

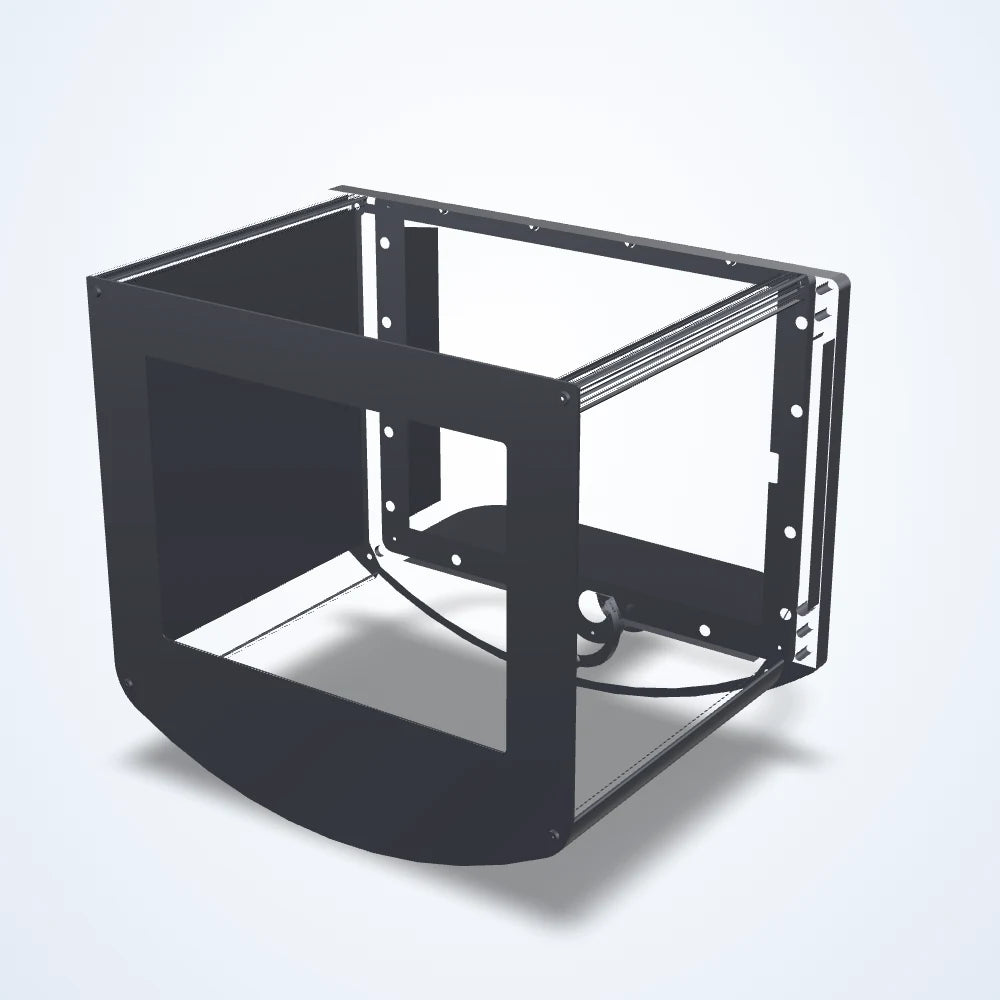

0.072× telecentric lens, 4/3", F-mount (LS-TCL-0358)
Model LS-TCL-0358
- Magnification0.072×
- MountF-mount
- Sensor4/3"
- Working distance346 mm
- Resolution106 μm
$20,339.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 346 mm; depth of field 119.8 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0358 |
|---|---|
| FOV @ 1.1″ | 196.67 x 144.03 mm |
| Fov @ 1.2″ | 157.64 x 99.03 mm |
| Fov @ 1.3″ | 200 x 200 mm |
| FOV @ 1″ | 197.08 x 104.31 mm |
| Fov @ 4/3″ | 262.92 x 147.36 |
| Lens type | Telecentric |
| Working ƒ/n | f/12 |
Optics
| Magnification | 0.072× |
|---|---|
| Working distance | 346 mm |
| Depth of field | 119.8 mm |
| Distortion maximum (%) | < 0.9 |
| Distortion typical (%) | < 0.9 |
| Filter thread | No Filter Threads |
| Image size dimensions | 19.82 x 14.88 mm |
| Residual distortion (%) | < 0.01 |
| Telecentricity maximum | 0.22° |
| Telecentricity typical | < 0.18° |
Sensor and imaging
| Sensor format | 4/3" |
|---|---|
| Resolution (pixel size) | 106 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | F-mount |
|---|---|

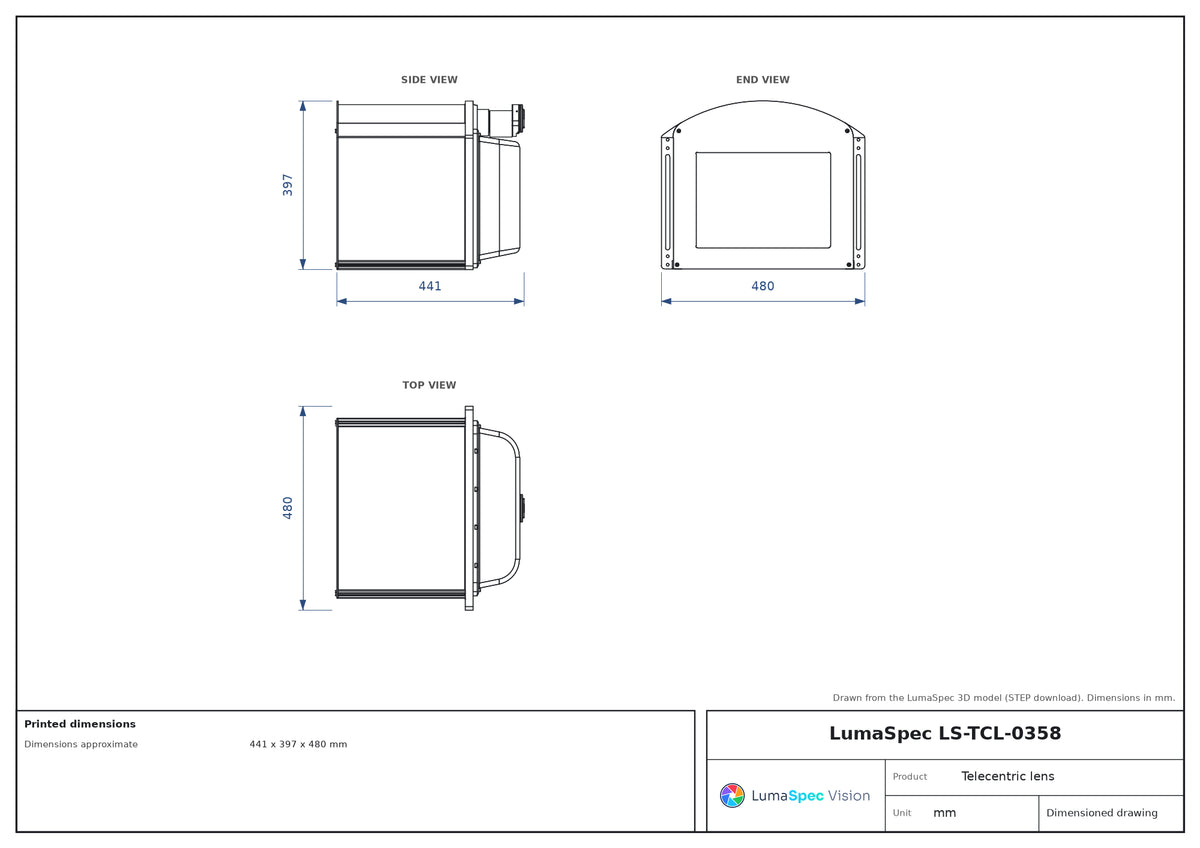

| Dimensions approximate | 441 x 397 x 480 mm |
| Weight | 12635 Grams |
