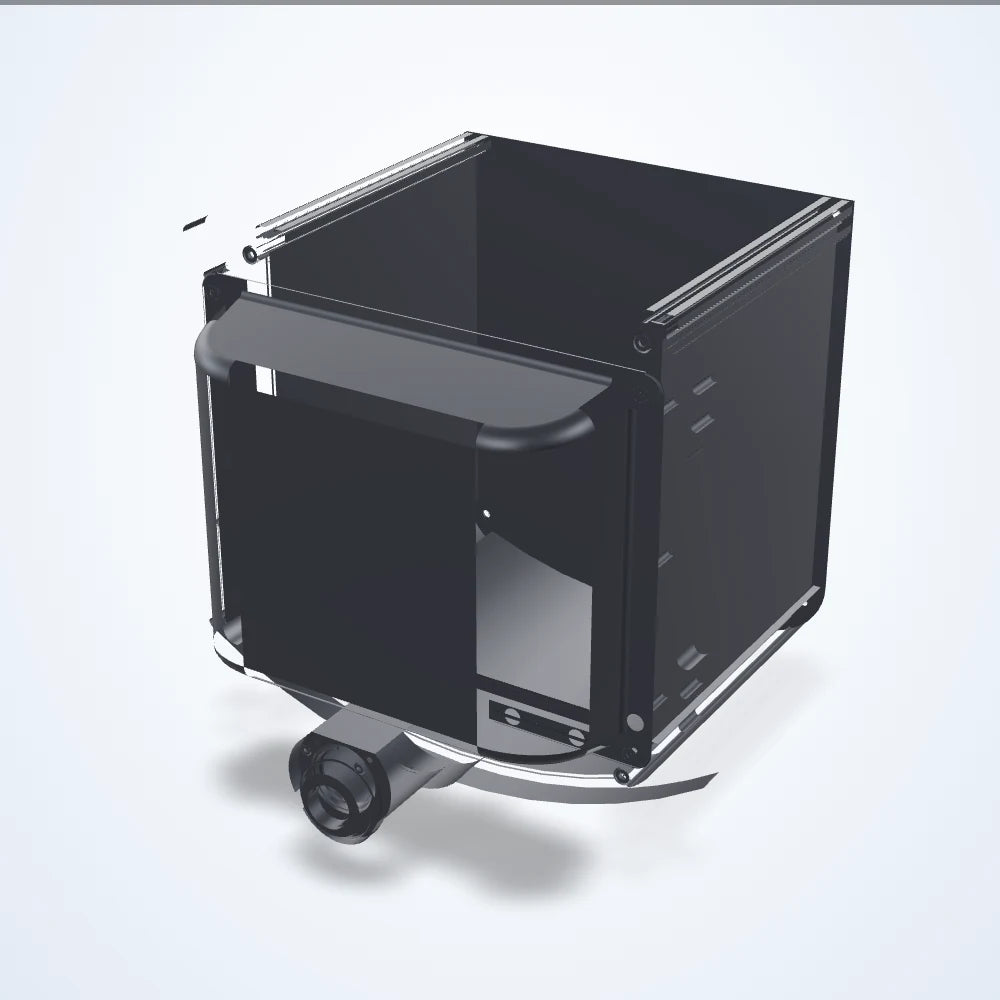

  • 0.086× telecentric lens, 1.1", C-mount (LS-TCL-0353)

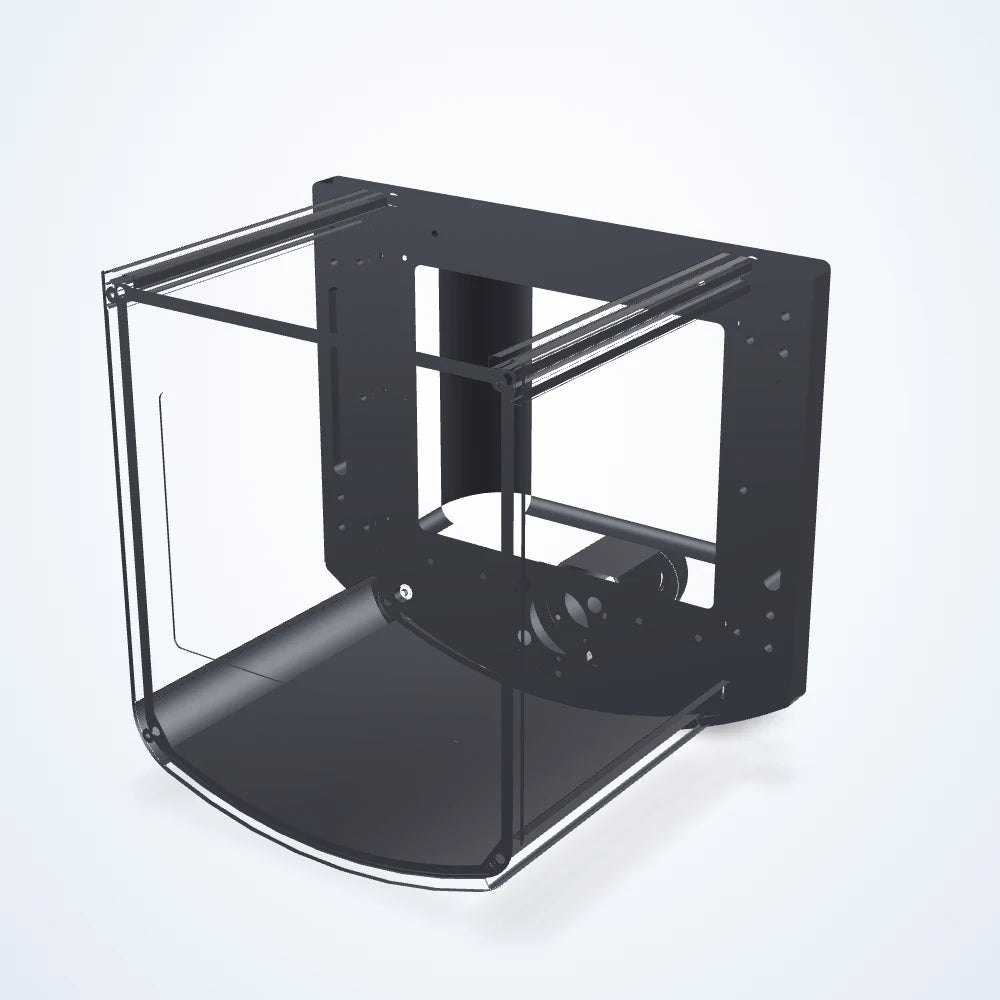

  • 0.086× telecentric lens, 1.1", C-mount (LS-TCL-0353) - view 2

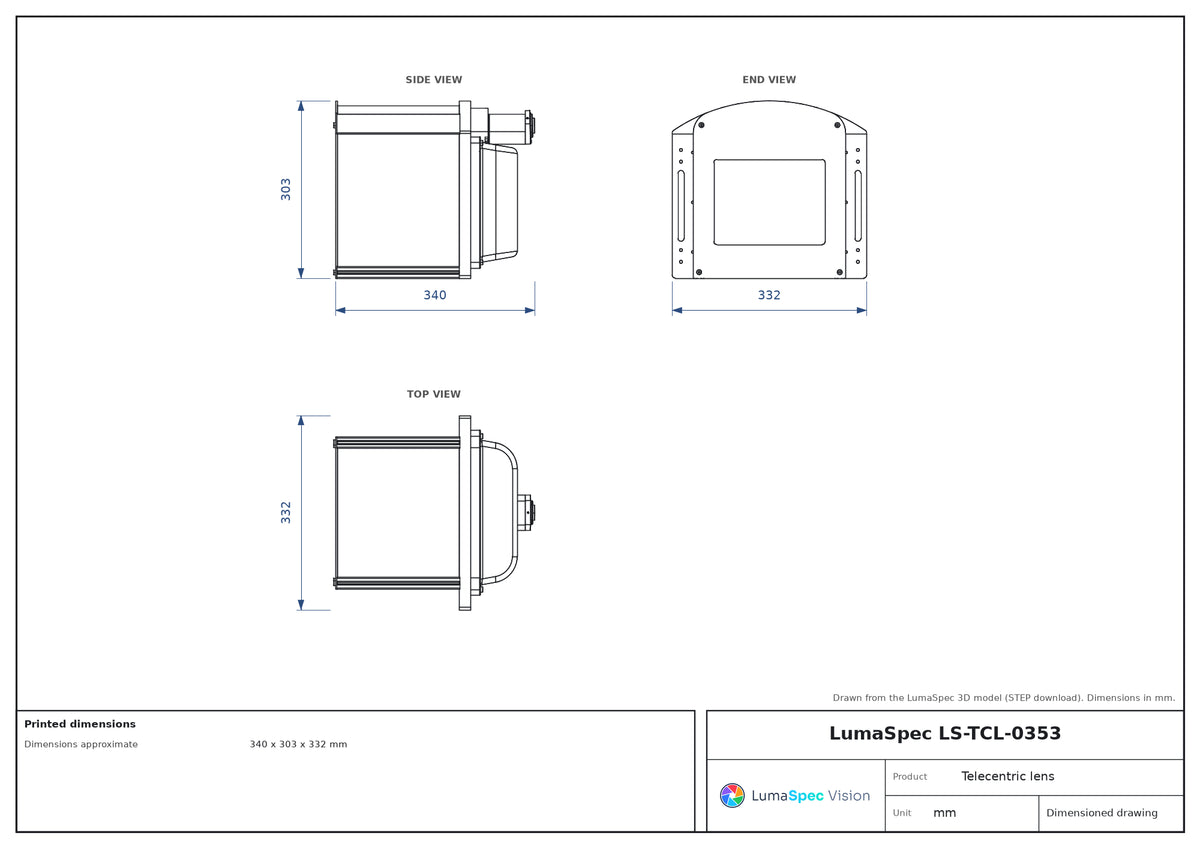

  • LS-TCL-0353 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.086× telecentric lens, 1.1", C-mount (LS-TCL-0353)

Model LS-TCL-0353

  • Magnification0.086×
  • MountC-mount
  • Sensor1.1"
  • Working distance232 mm
  • Resolution81 μm
$15,099.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.086× telecentric lens, 1.1", C-mount (LS-TCL-0353)LS-TCL-0353

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 232 mm; depth of field 77.3 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0353
FOV @ 1.1″165.03 x 120.86 mm
Fov @ 1.2″132.28 x 83.1 mm
FOV @ 1″165.38 x 87.53 mm
Lens typeTelecentric
Working ƒ/nf/11

Optics

Magnification0.086×
Working distance232 mm
Depth of field77.3 mm
Distortion maximum (%)< 0.8
Distortion typical (%)< 0.8
Filter threadNo Filter Threads
Image size dimensions14.9 x 10.9 mm
Residual distortion (%)< 0.01
Telecentricity maximum0.10°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format1.1"
Resolution (pixel size)81 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate340 x 303 x 332 mm
Weight7301 Grams
