Telecentric lenses

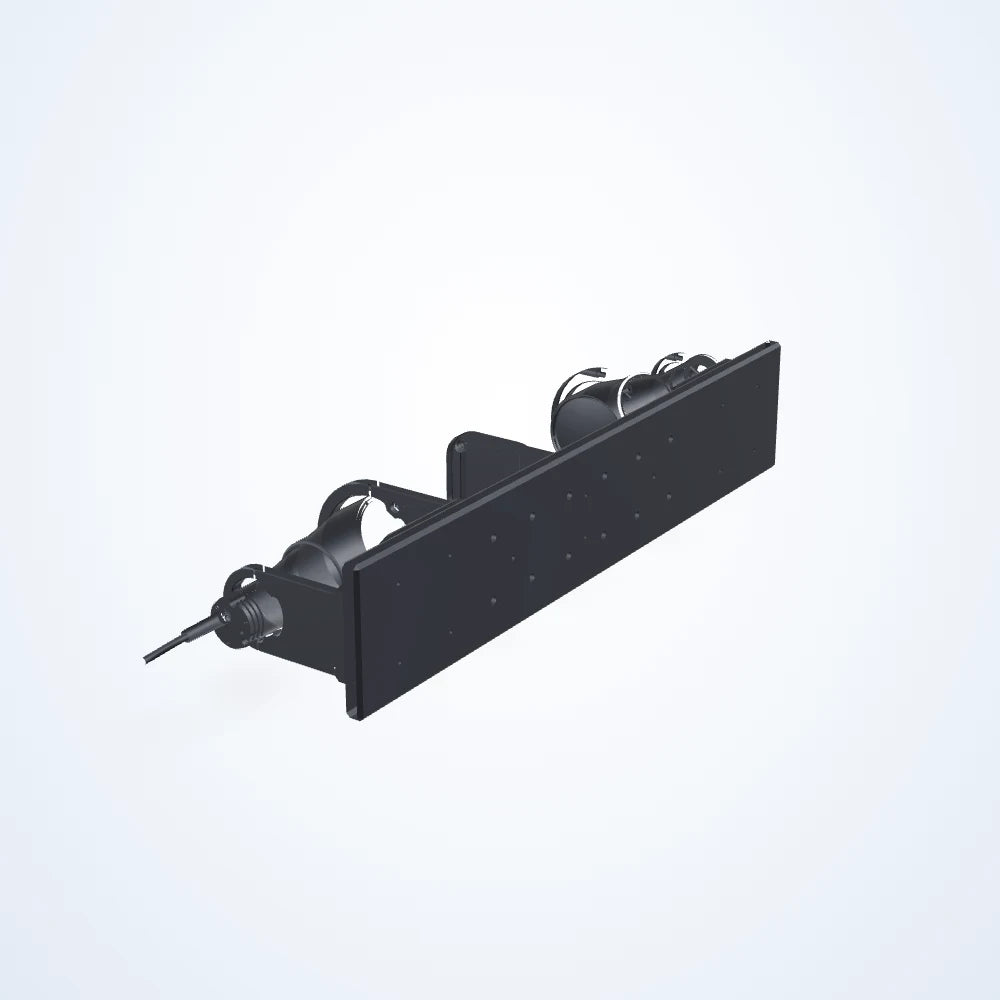

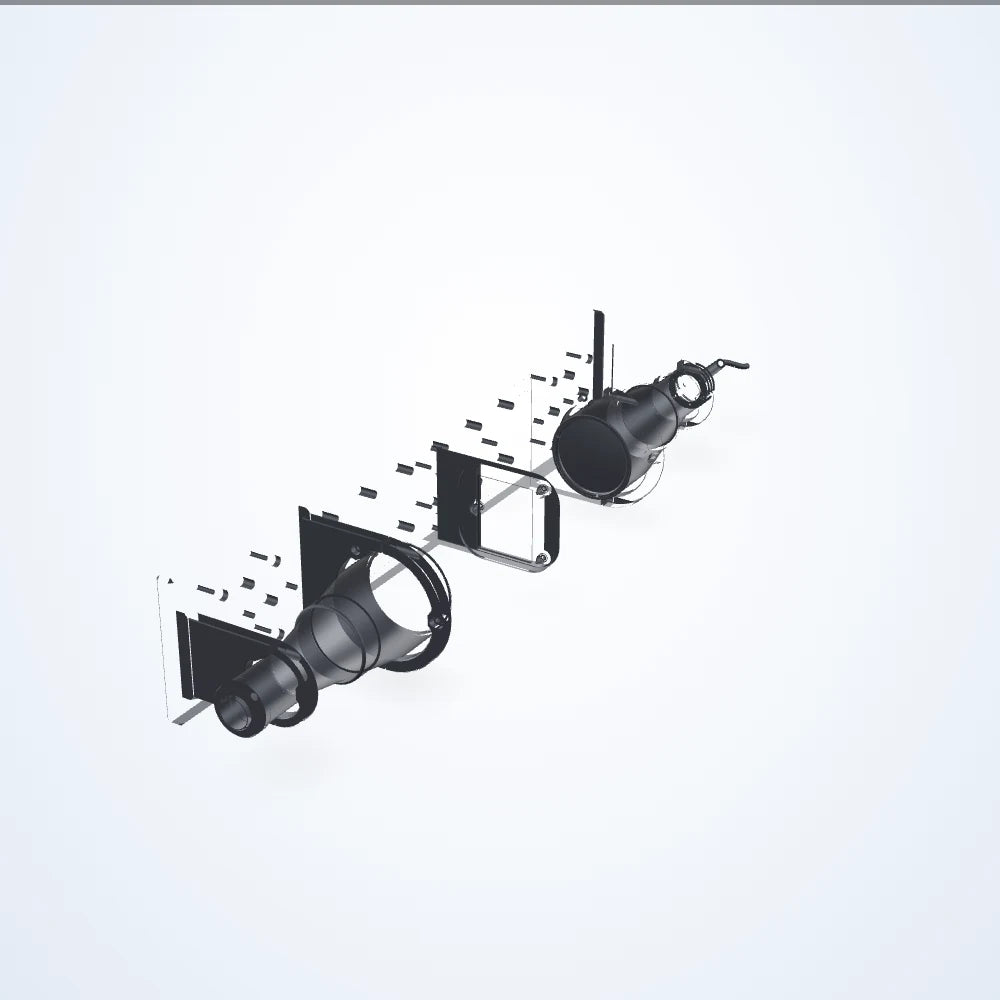

0.184× telecentric lens, 2/3", C-mount, wavelength 520 nm (LS-TCL-0342)
Model LS-TCL-0342
- Magnification0.184×
- MountC-mount
- Sensor2/3"
- Working distance132.9 mm
- Resolution28 μm
$6,539.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.9 mm; depth of field 12.2 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0342 |
|---|---|
| FOV @ 1/1.8″ | 38.75 x 28.97 mm |
| Fov @ 1/2.0″ | 34.78 x 26.09 mm |
| Fov @ 1/2.5″ | 30.98 x 23.26 mm |
| FOV @ 1/2″ | 34.78 x 26.09 mm |
| Fov @ 1/3.0″ | 26.09 x 19.57 mm |
| FOV @ 2/3″ | 46.20 x 38.53 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.184× |
|---|---|
| Working distance | 132.9 mm |
| Depth of field | 12.2 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Image circle | 11 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 28 μm |
Light
| LED current | 350 mA |
|---|---|
| LED voltage | 3.3 Volts |
| LED voltage maximum | 4 Volts |
| Light color | Green |
| Wavelength | 520 nm |
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Power consumption maximum | 2.5 Watts |
|---|---|
| Pulse current maximum | 2000 mA |
| Supply voltage | 12 - 24 Volts |
Mechanical
| Mount | C-mount |
|---|---|

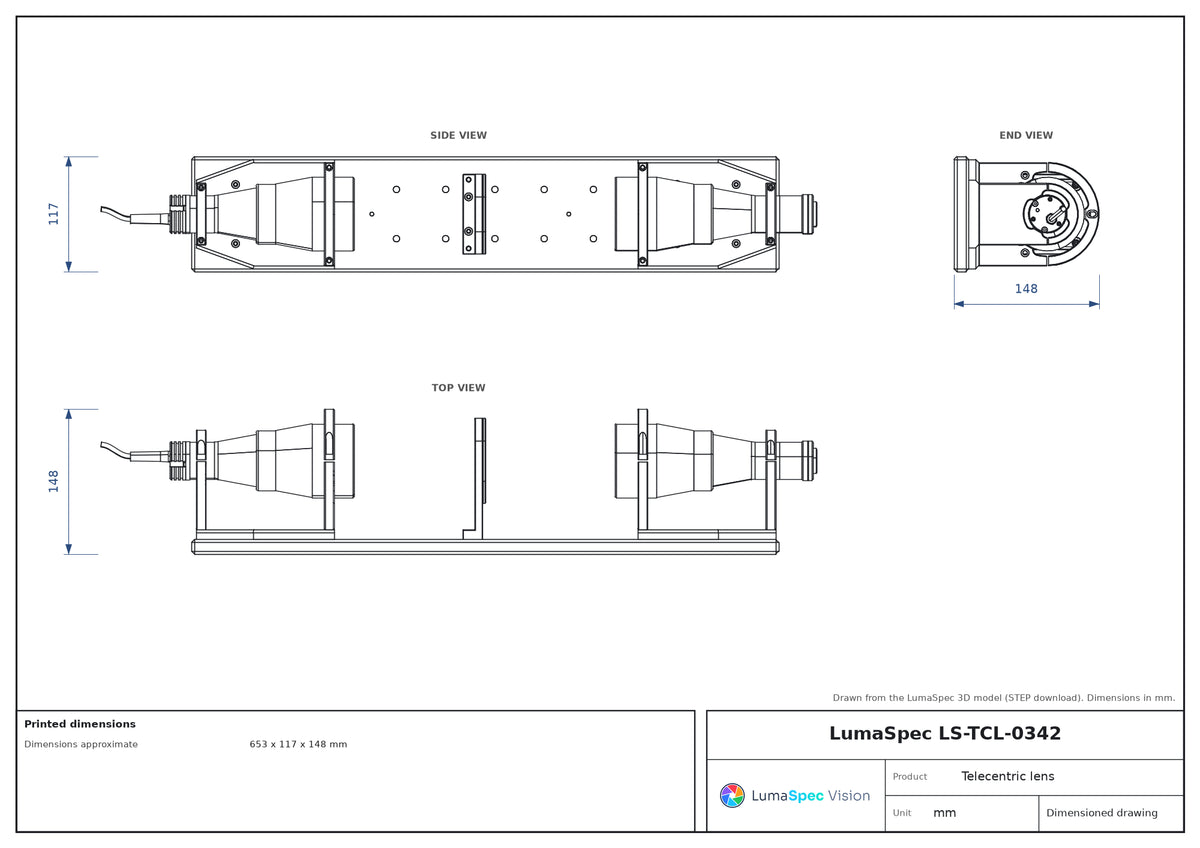

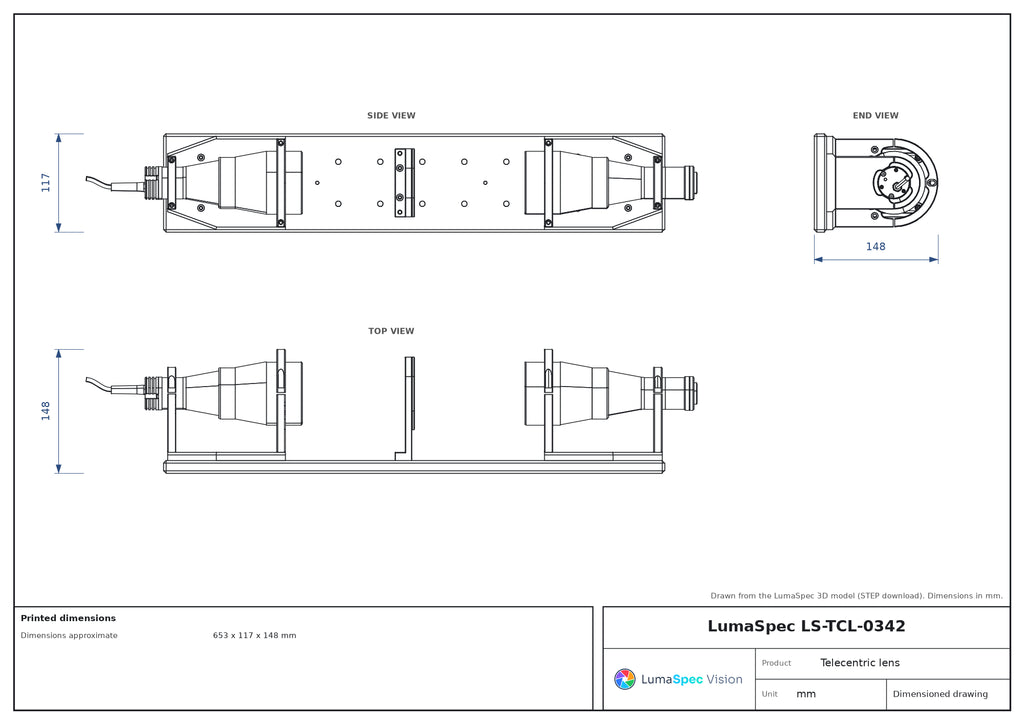

| Dimensions approximate | 653 x 117 x 148 mm |
| Installation location | Indoor Use Only |
| Weight | 5620 Grams |
Other models in the Telecentric lens series, 2/3", C-mount (S19) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0338 | 1× | $3,619.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0339 | 0.528× | $4,119.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0340 | 0.35× | $4,389.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0341 | 0.243× | $5,969.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0343 | 0.157× | $7,129.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0344 | 0.138× | $8,699.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0345 | 0.11× | $10,499.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0346 | 0.093× | $12,639.00 Quote | Lead time confirmed with your quote | View |
