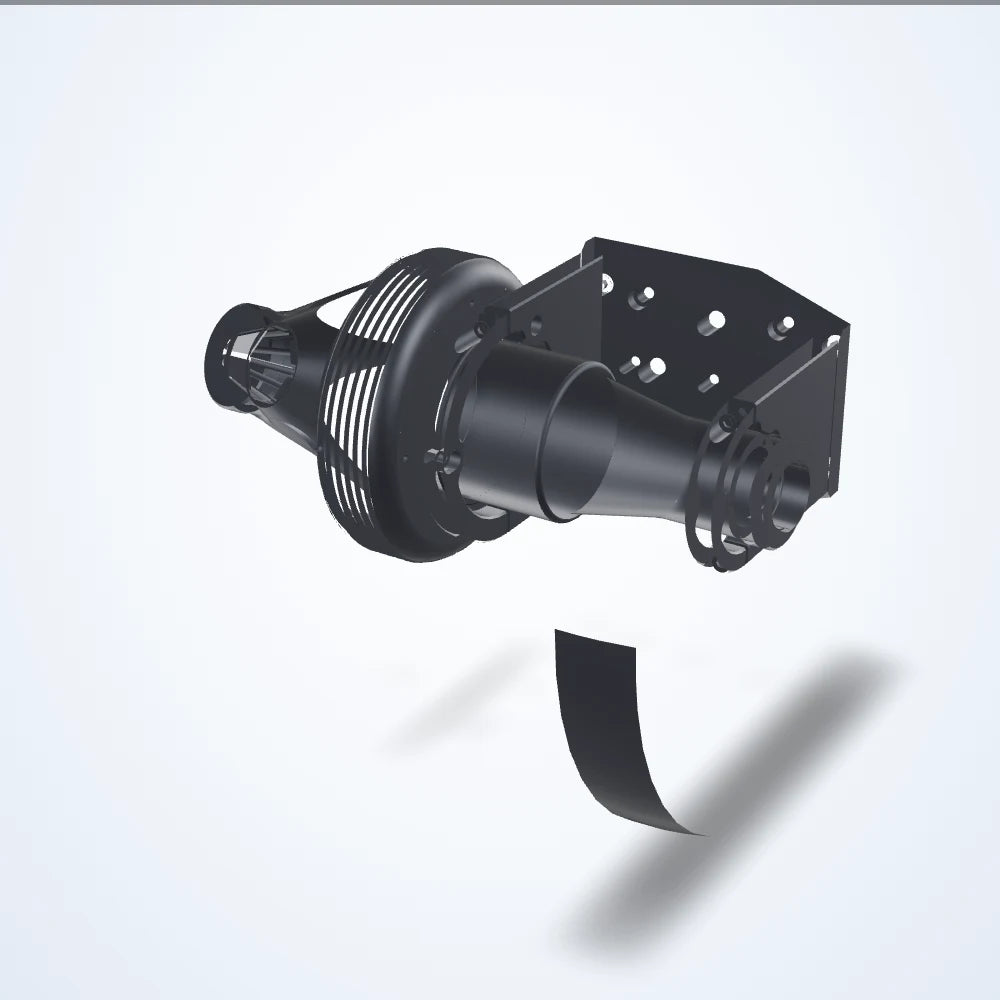

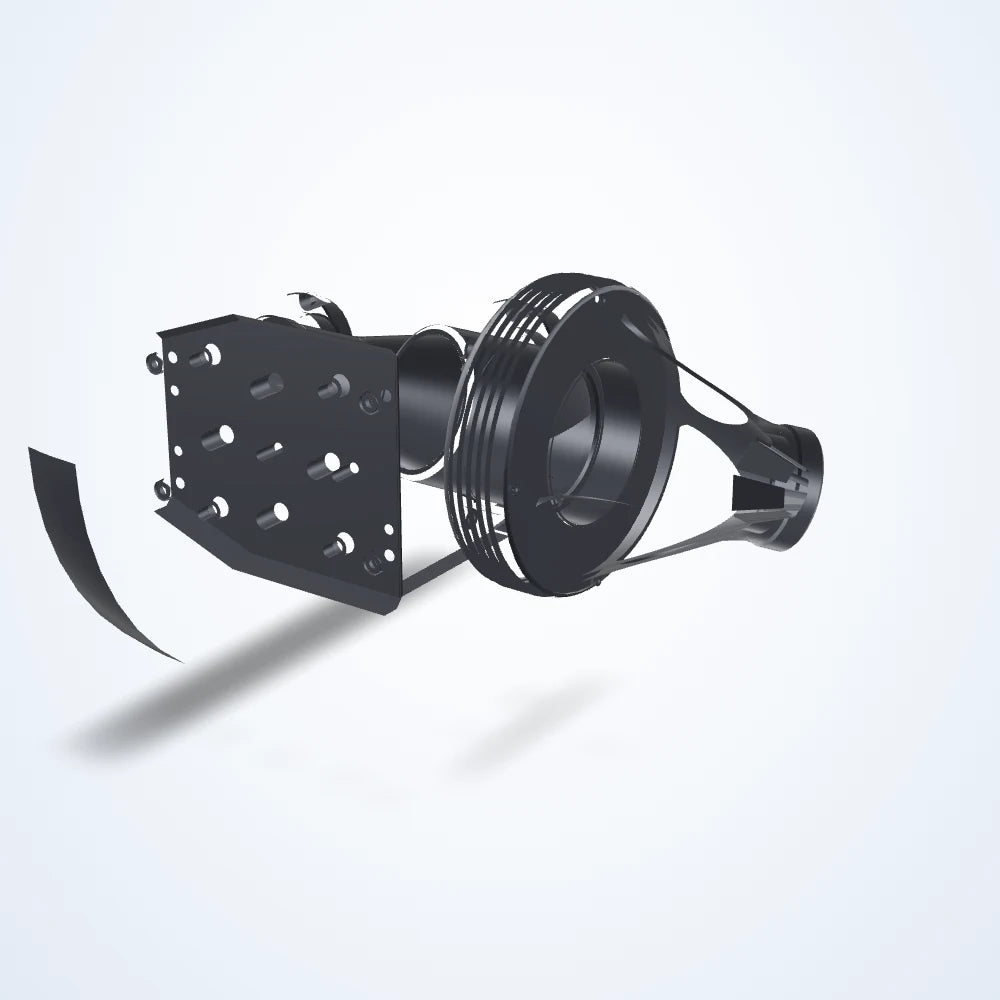

360° inspection lens, 1/2", C-mount (LS-TCL-0061)

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1/2", C-mount, 242.3 x 119 mm (LS-TCL-0061)

Model LS-TCL-0061

MountC-mount
Sensor1/2"
Working distance1.5 mm
Sensor format1/2"

$4,399.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Special inspection optics that image the sides or inner walls of a part in one shot. Connection: flying leads.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0061
Aov	37 °
Fov maximum	10
Fov minimum	2.5
Lens type	Multi-View
Working ƒ/n	f/8

Optics

Filter thread	No Filter Threads
Image circle	4.8 mm
Working distance @ fov maximum	1.5 mm
Working distance @ fov minimum	5 mm

Sensor and imaging

Sensor format	1/2"

Interfaces and I/O

Connector	Flying Leads

Light

LED current	750 mA
Light color	White

Environment and compliance

Operating relative humidity (%)	20-85 Non Condensing
Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Electrical

Power consumption maximum	18 Watts
Supply voltage	24 Volts

Mechanical

Mount	C-mount

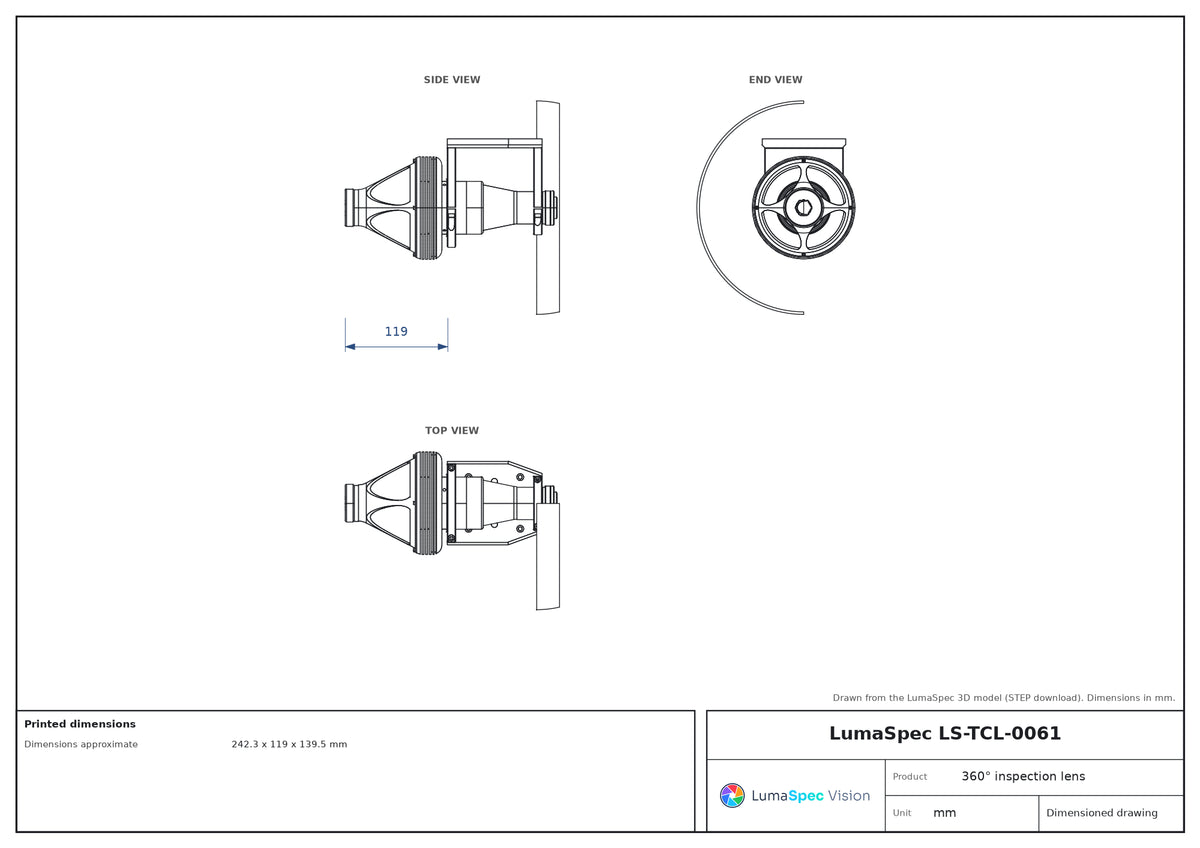

Dimensions approximate	242.3 x 119 x 139.5 mm
Installation location	Indoor Use Only
Weight	1485 Grams

Other models in the 360° inspection lens series, C-mount, Flying Leads series

See the category

Model	Size / key data	Price	Availability	Link
LS-TCL-0062	C-mount · 2/3"	$4,399.00 Quote	Lead time confirmed with your quote	View
