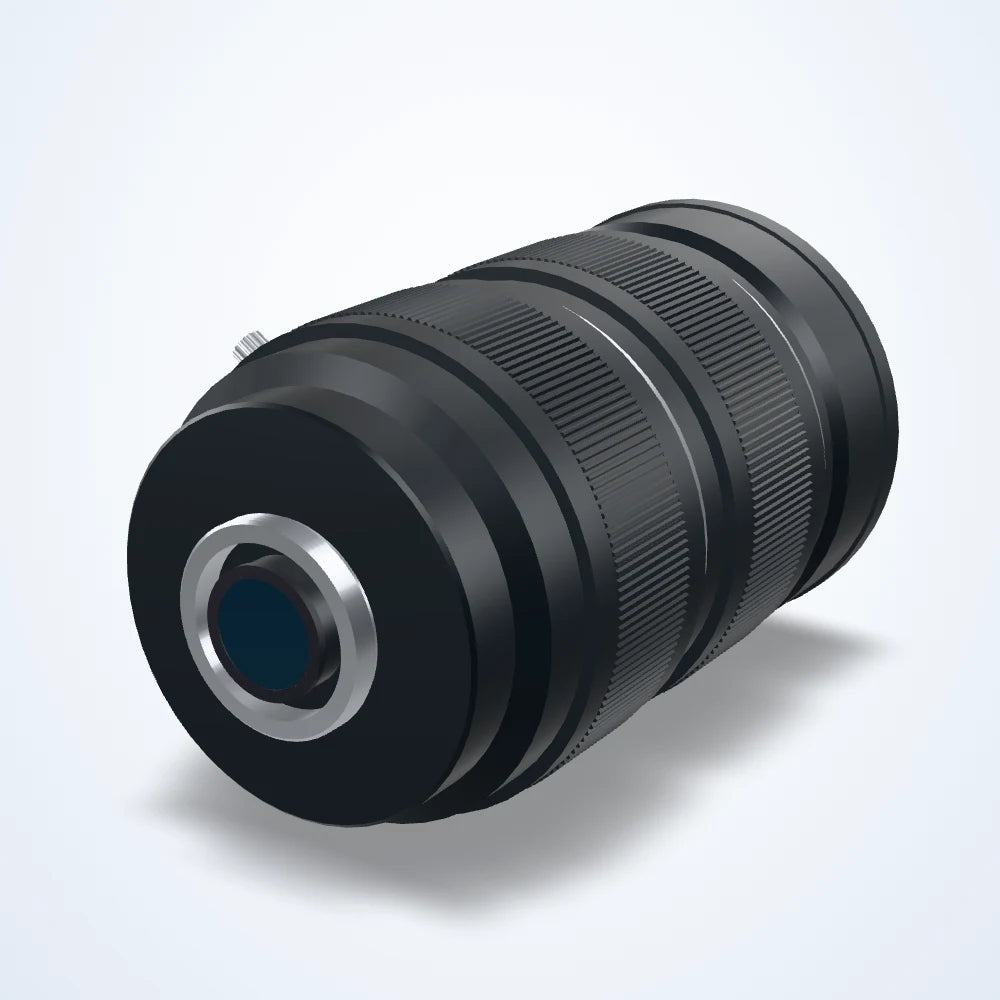

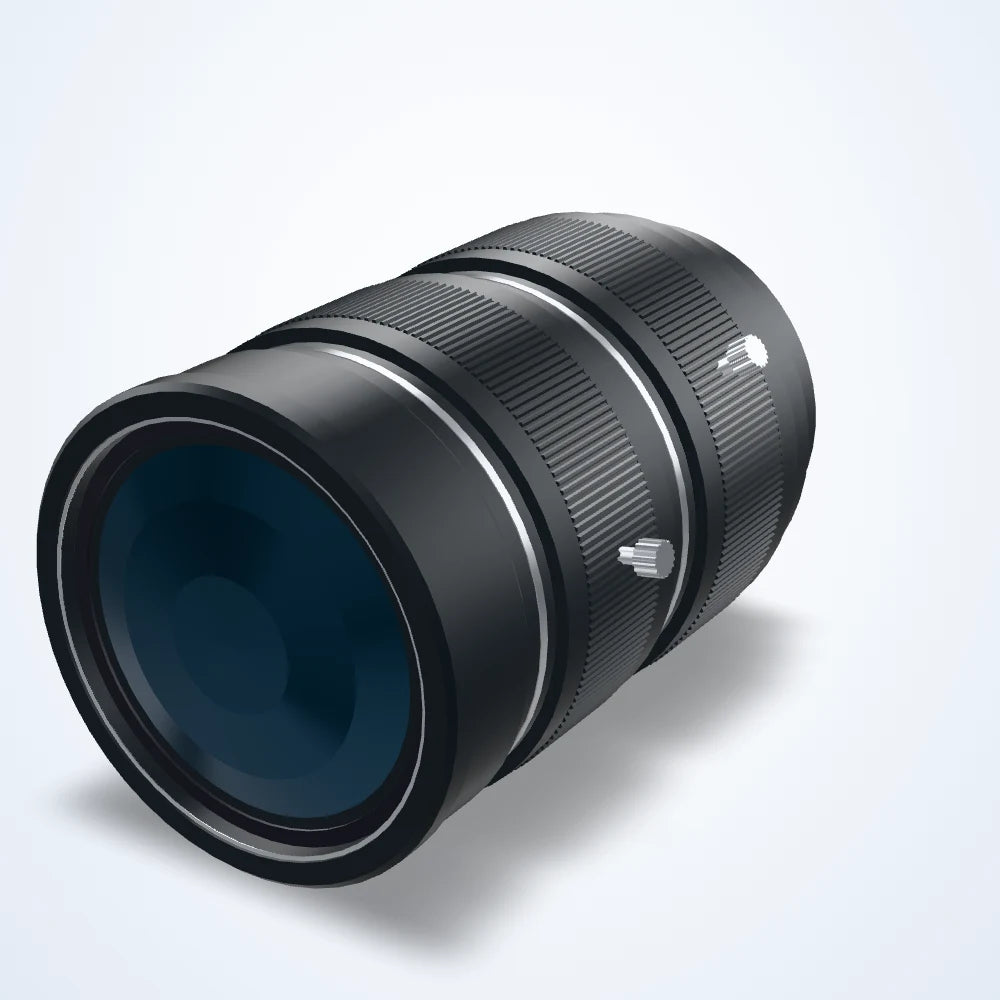

Rendered illustration: the actual product may differ in appearance.
Thermal, SWIR & UV lenses
75 mm UV lens, 200-1000 nm, 2/3", F3.8, F-mount (LS-SWL-0292)
Model LS-SWL-0292
- Focal length75 mm
- Magnification0.07X~-0.5X
- MountF-mount
- Sensor2/3"
- ApertureF2.8
- Resolution8MP
$1,540.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
75 mm UV lens for SWIR, NIR and UV cameras. Focal length 75 mm; covers sensors up to 2/3"; aperture F3.8; corrected for 200-1000 nm; F-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0292 |
|---|
Optics
| Focal length | 75 mm |
|---|---|
| Magnification | 0.07X~-0.5X |
| Aperture | F2.8 |
| Back focal length | 12.01 mm |
| Field of view | 7.2° x 5.76° x 4.32° |
| Distortion | <0.82% |
| Focus | Manual |
| Filter thread | M35.5 x 0.5 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution | 8MP |
Light
| Wavelength range | 200-1000 nm |
|---|
Mechanical
| Mount | F-mount |
|---|---|
| Flange back length | 17.526 mm |

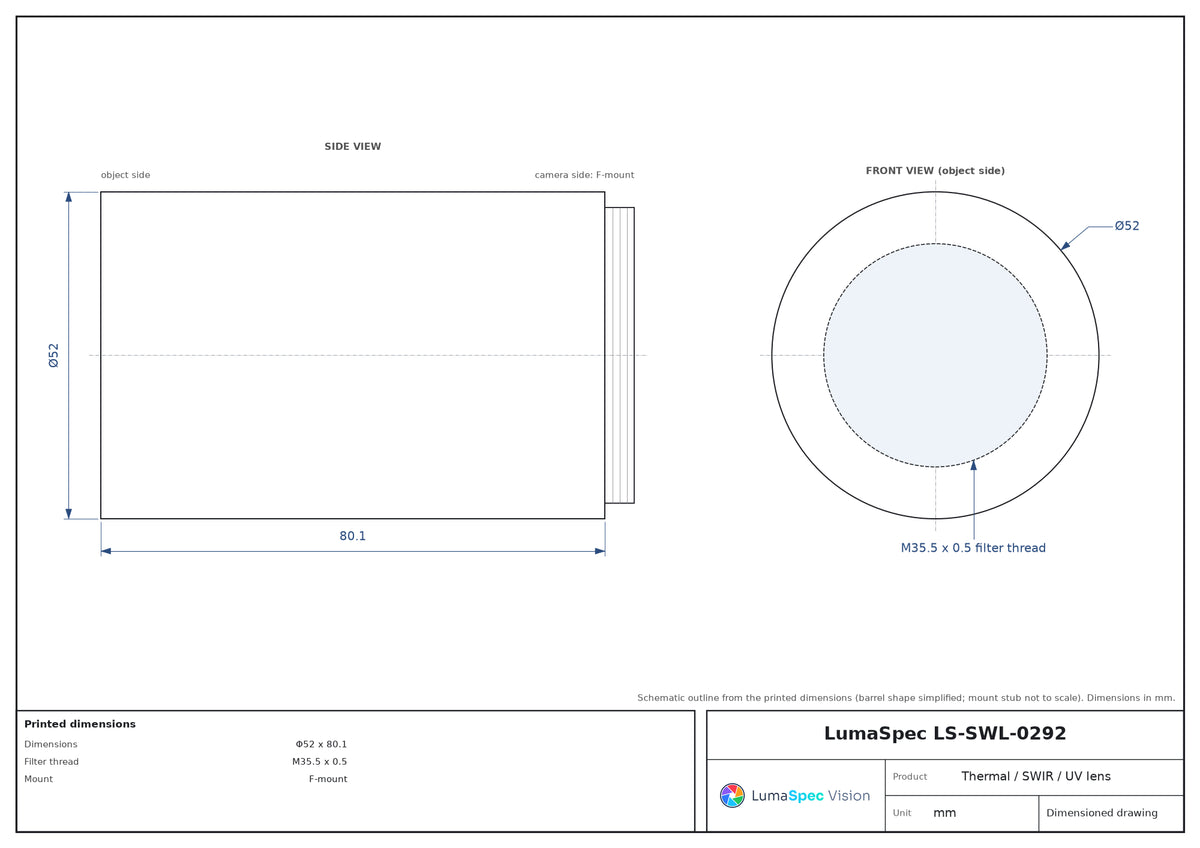

| Dimensions | Φ52 x 80.1 |
| Shipping weight | 0.50 kg |
Other models in the UV lenses (LS-SWL-S14) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SWL-0291 | 25 mm, 2/3", C-mount | $2,200.00 | Ships in 3-4 weeks | View |
| LS-SWL-0290 | 25 mm, 2/3", C-mount | $2,860.00 | Ships in 3-4 weeks | View |
