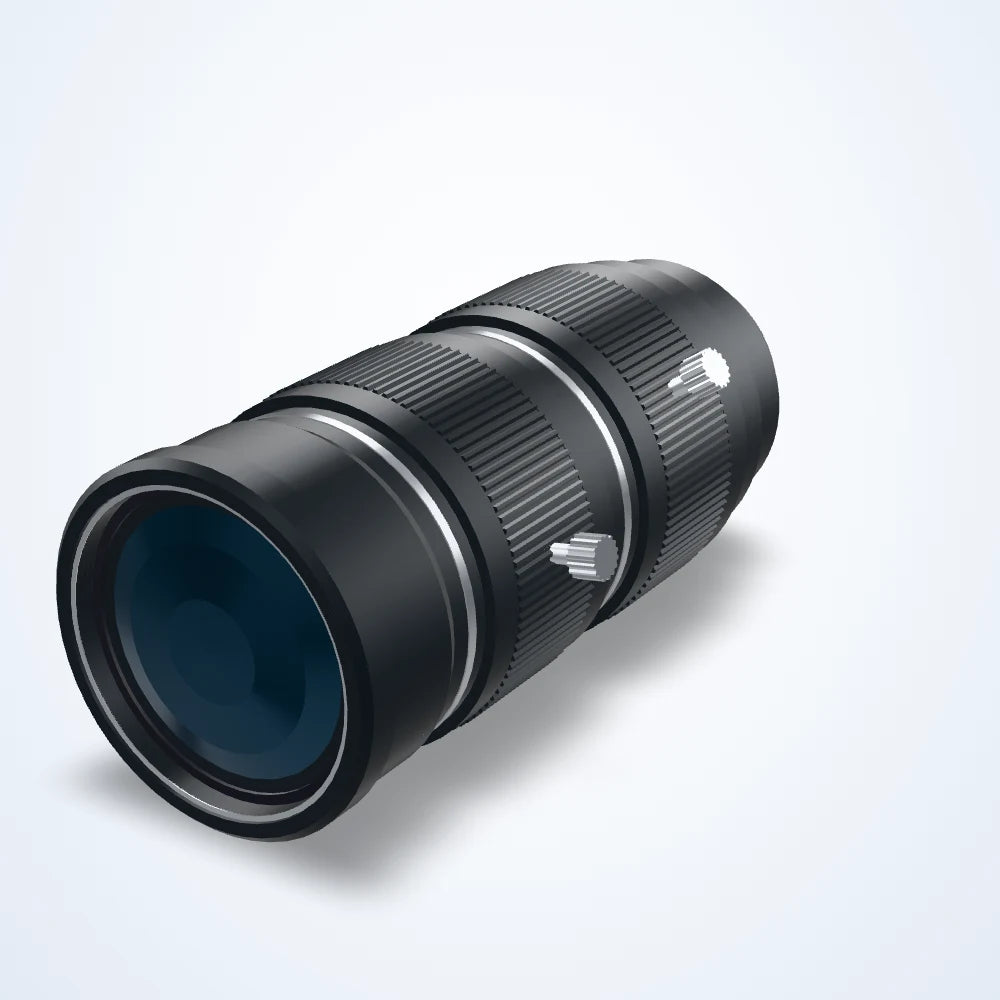

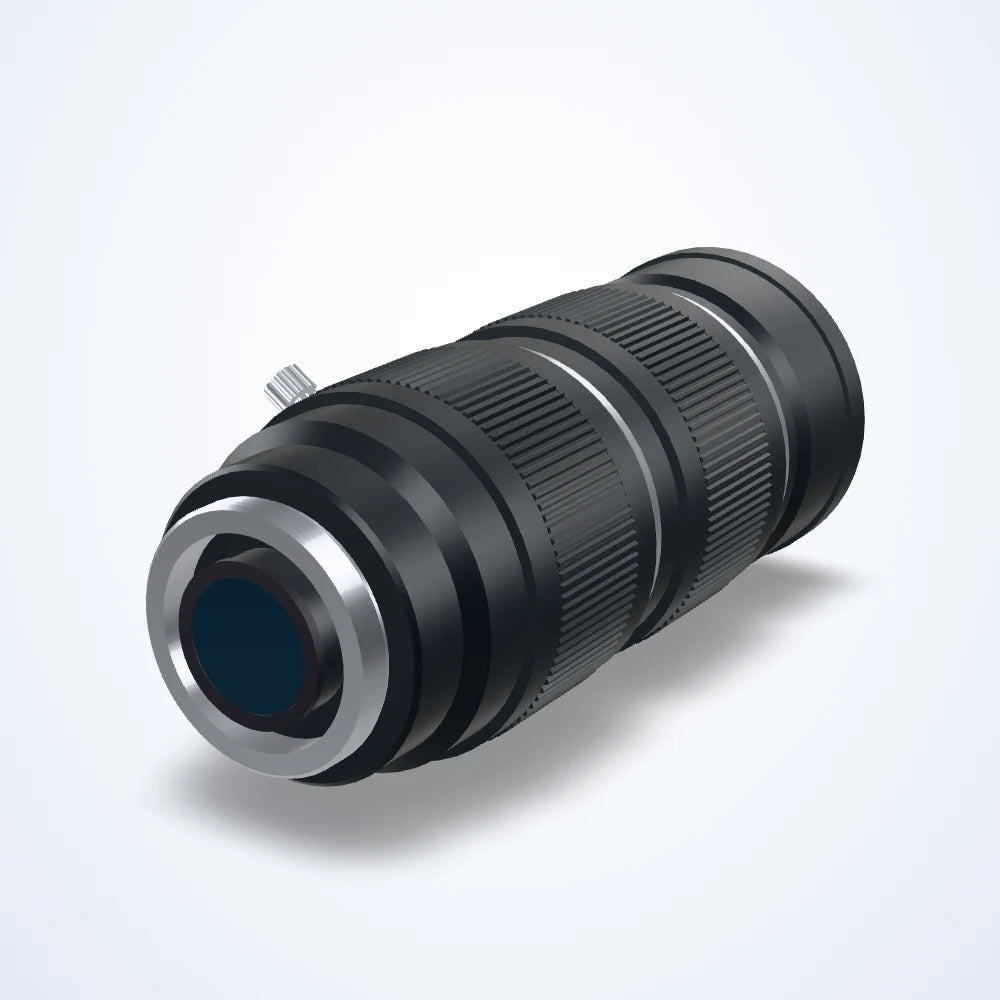

Rendered illustration: the actual product may differ in appearance.
Thermal, SWIR & UV lenses
25 mm UV lens, 2/3", F2.8, C-mount (LS-SWL-0290)
Model LS-SWL-0290
- Focal length25 mm
- Magnification-0.02X~-0.2X
- MountC-mount
- Sensor2/3"
- Aperture2.8
- Resolution8 MP
$2,860.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm UV lens for SWIR, NIR and UV cameras. Focal length 25 mm; covers sensors up to 2/3"; resolves 8 MP; aperture F2.8; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0290 |
|---|
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | 2.8 |
| Magnification | -0.02X~-0.2X |
| Back focal length | 11.84 mm |
| Field of view | 21.76° x 17.41° x 13.06° |
| Distortion | <0.8% |
| Focus | Manual |
| Filter thread | M40.5 x 0.5 |
Sensor and imaging
| Resolution | 8 MP |
|---|---|
| Sensor format | 2/3'' |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

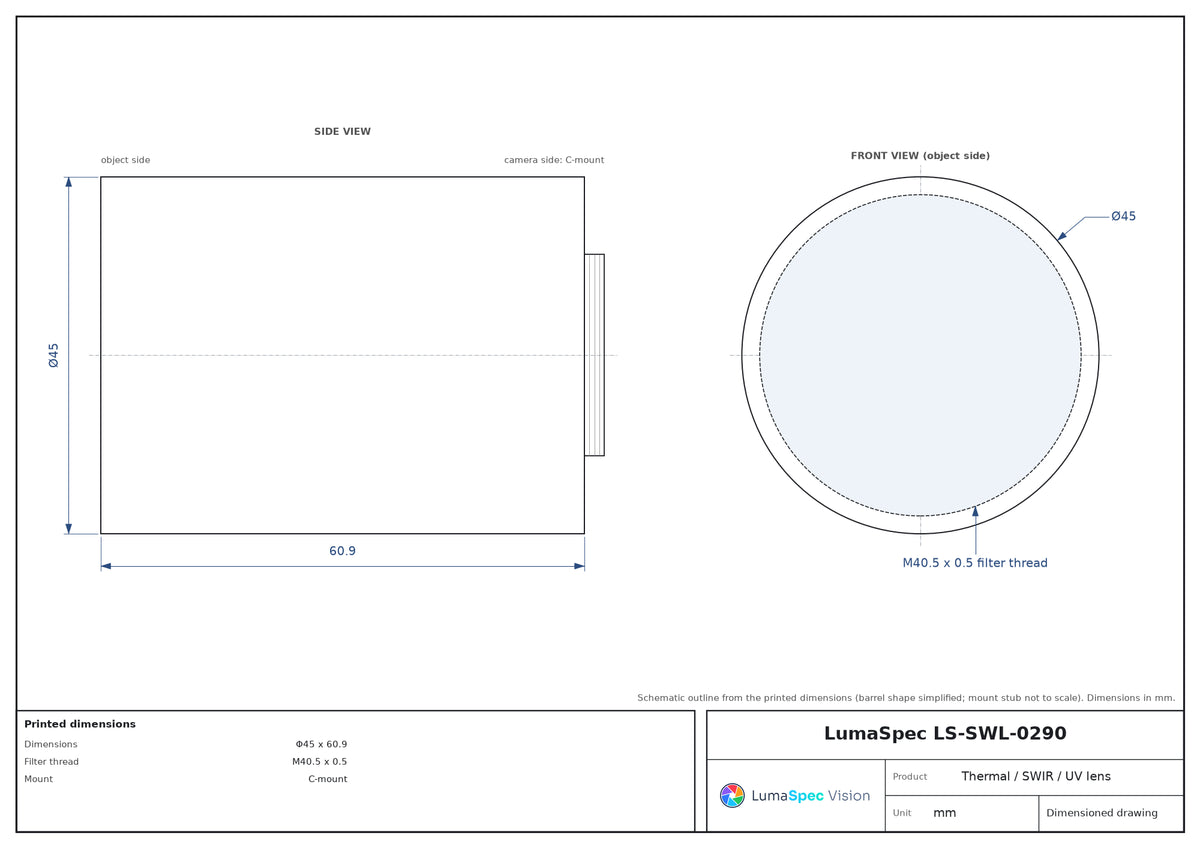

| Dimensions | Φ45 x 60.9 |
| Shipping weight | 0.50 kg |
Other models in the UV lenses (LS-SWL-S14) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SWL-0292 | 75 mm, 2/3", F-mount | $1,540.00 | Ships in 3-4 weeks | View |
| LS-SWL-0291 | 25 mm, 2/3", C-mount | $2,200.00 | Ships in 3-4 weeks | View |
