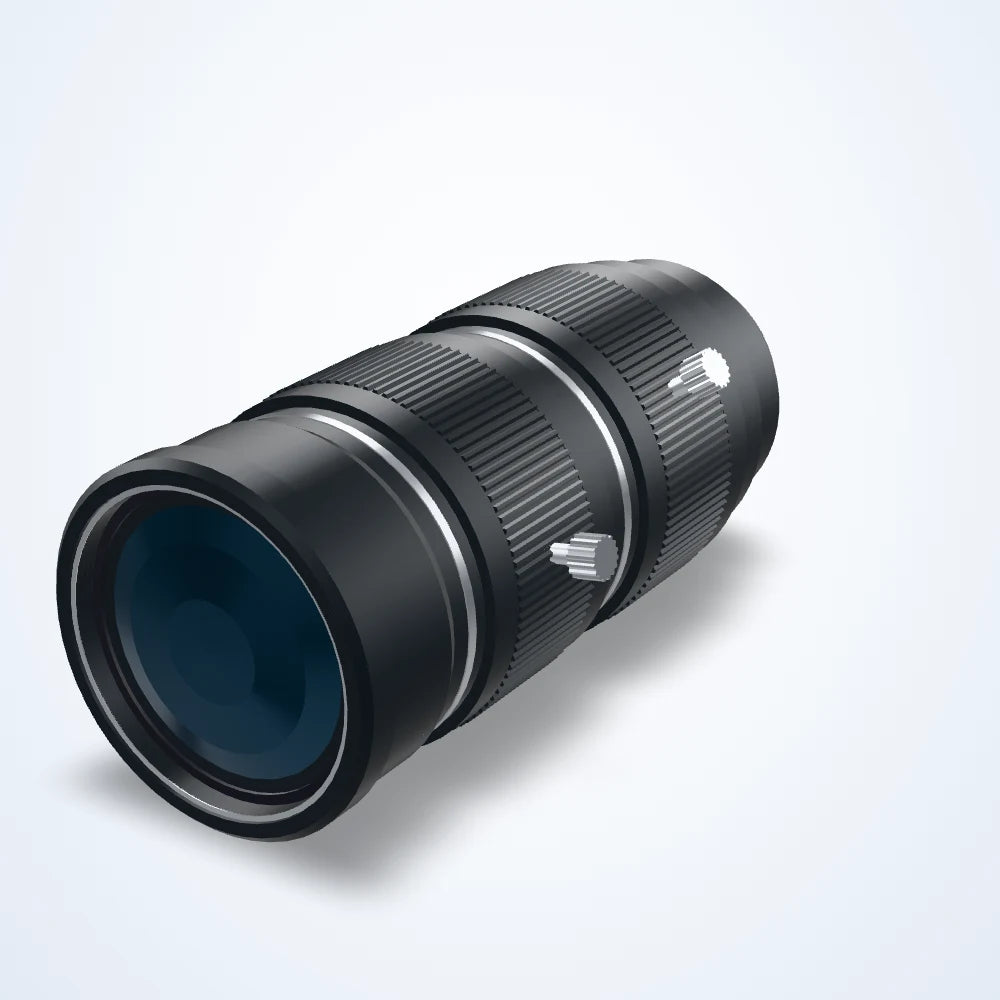

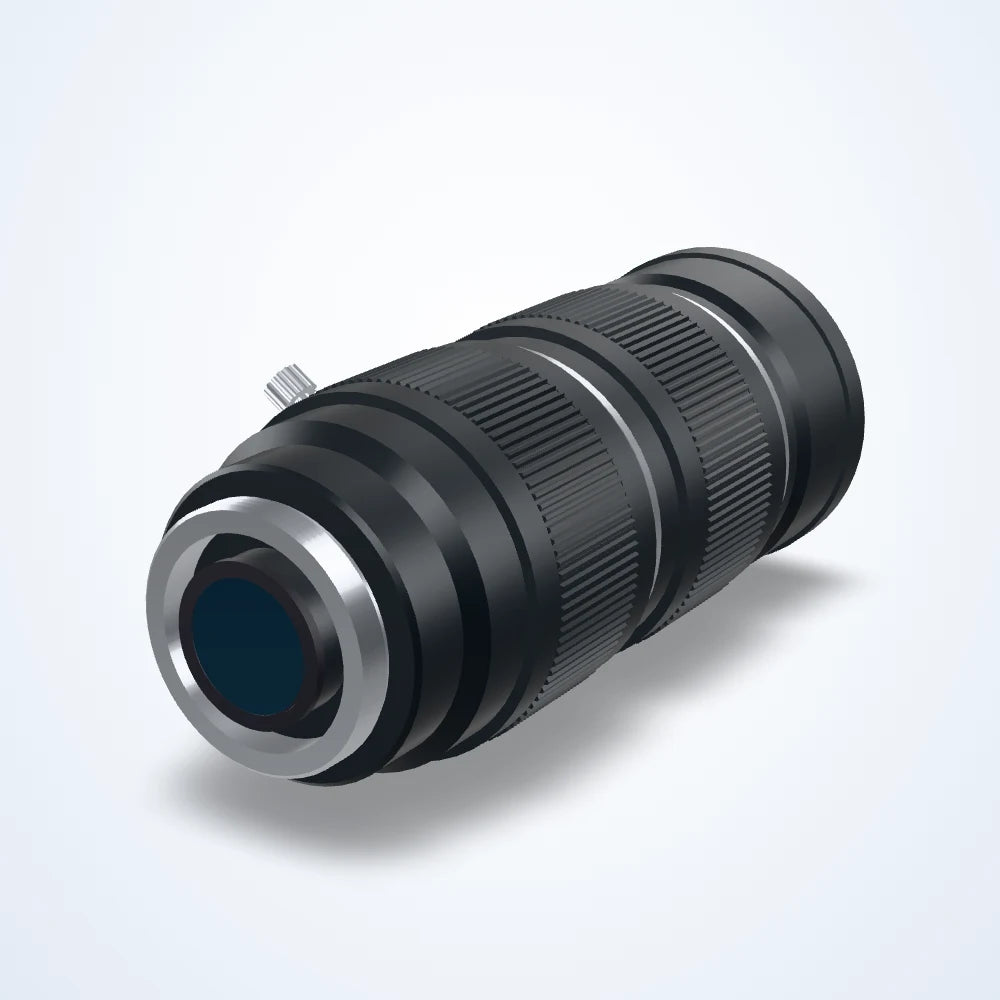

Thermal, SWIR & UV lens (series view)
  • Thermal, SWIR & UV lens (series view)
  • Thermal, SWIR & UV lens (series view)

Rendered illustration: the actual product may differ in appearance.

Thermal, SWIR & UV lenses

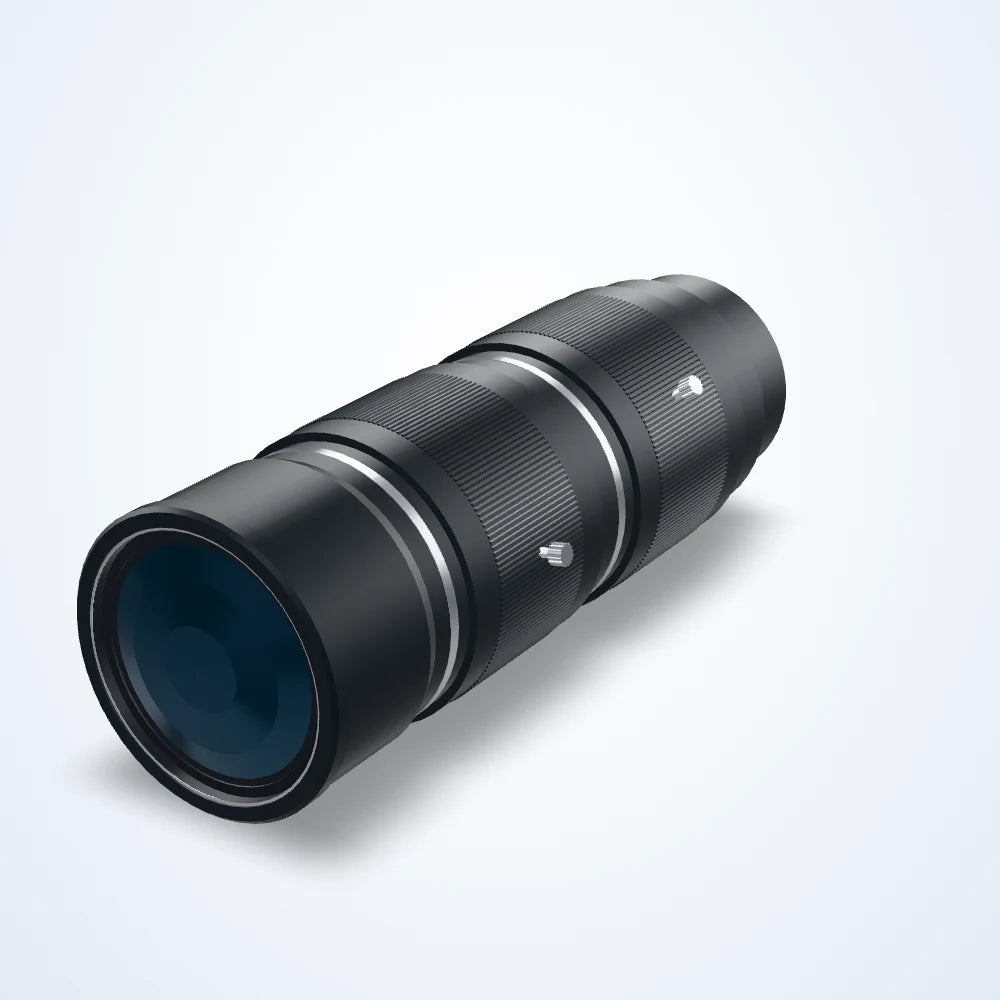

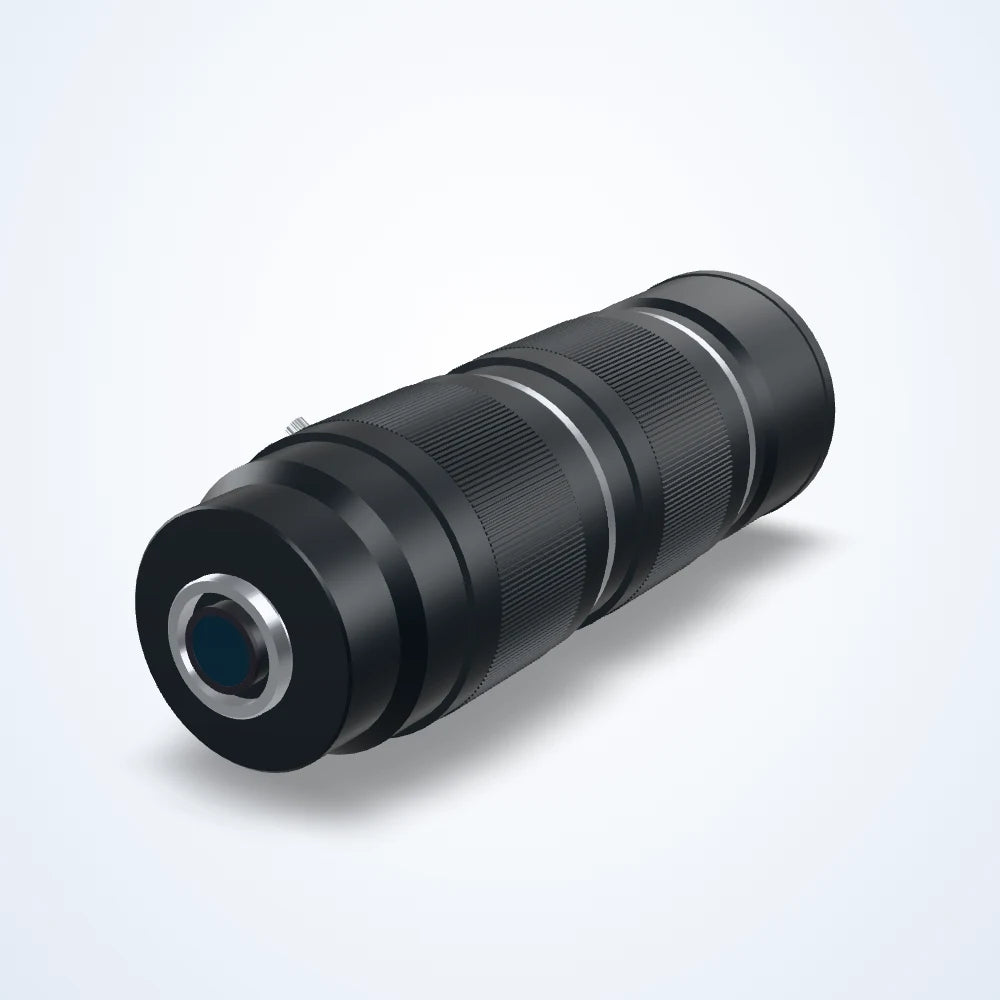

0.5 mm UV lens, 190-700 nm, Magnification:0.5-1.0x WD:180-94 mm (LS-SWL-0277)

Model LS-SWL-0277

  • Focal length0.5 mm
  • Magnification0.5x-1.0x
  • MountC-mount
  • Sensor1.2"
  • Working distance180-94 mm
  • ApertureF6.9 / F10.4
$16,900.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

0.5 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.5 mm UV lens, 190-700 nm, Magnification:0.5-1.0x WD:180-94 mm (LS-SWL-0277)LS-SWL-0277

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.5 mm UV lens for SWIR, NIR and UV cameras. Focal length 0.5 mm; magnification 0.5x; working distance 180 mm; corrected for 190-700 nm; image circle 20.5 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0277
Spectral Region190~700 nm

Optics

Focal length0.5 mm
Magnification0.5x-1.0x
Working distance180-94 mm
ApertureF6.9 / F10.4
Filter threadM43×0.75

Sensor and imaging

Sensor formatΦ20.5 mm

Light

Wavelength range190-700 nm

Mechanical

Flange back length17.526 mm
MountC-Mount
DimensionsΦ59×171.6 /?59×214.7 mm
Weight780g

Other models in the UV lenses (LS-SWL-S11) series

See all 12 models
ModelSize / key dataPriceAvailabilityLink
LS-SWL-0284 25 mm, C-mount $1,610.00 Ships in 3-4 weeks View
LS-SWL-0285 50 mm, M27 $1,760.00 Ships in 3-4 weeks View
LS-SWL-0287 100 mm, M38 $1,925.00 Ships in 3-4 weeks View
LS-SWL-0286 78 mm, F-mount $2,805.00 Ships in 3-4 weeks View
LS-SWL-0282 11.5 mm, M36 $3,740.00 Ships in 3-4 weeks View
LS-SWL-0279 1 mm $13,300.00 Quote Ships in 3-4 weeks View
LS-SWL-0280 1.4 mm $13,700.00 Quote Ships in 3-4 weeks View
LS-SWL-0281 2 mm $13,700.00 Quote Ships in 3-4 weeks View
LS-SWL-0276 0.5 mm $14,000.00 Quote Ships in 3-4 weeks View
LS-SWL-0278 0.7 mm $14,000.00 Quote Ships in 3-4 weeks View
LS-SWL-0283 14.8 mm, M68 $18,700.00 Quote Ships in 3-4 weeks View
