Rendered illustration: the actual product may differ in appearance.
Thermal, SWIR & UV lenses

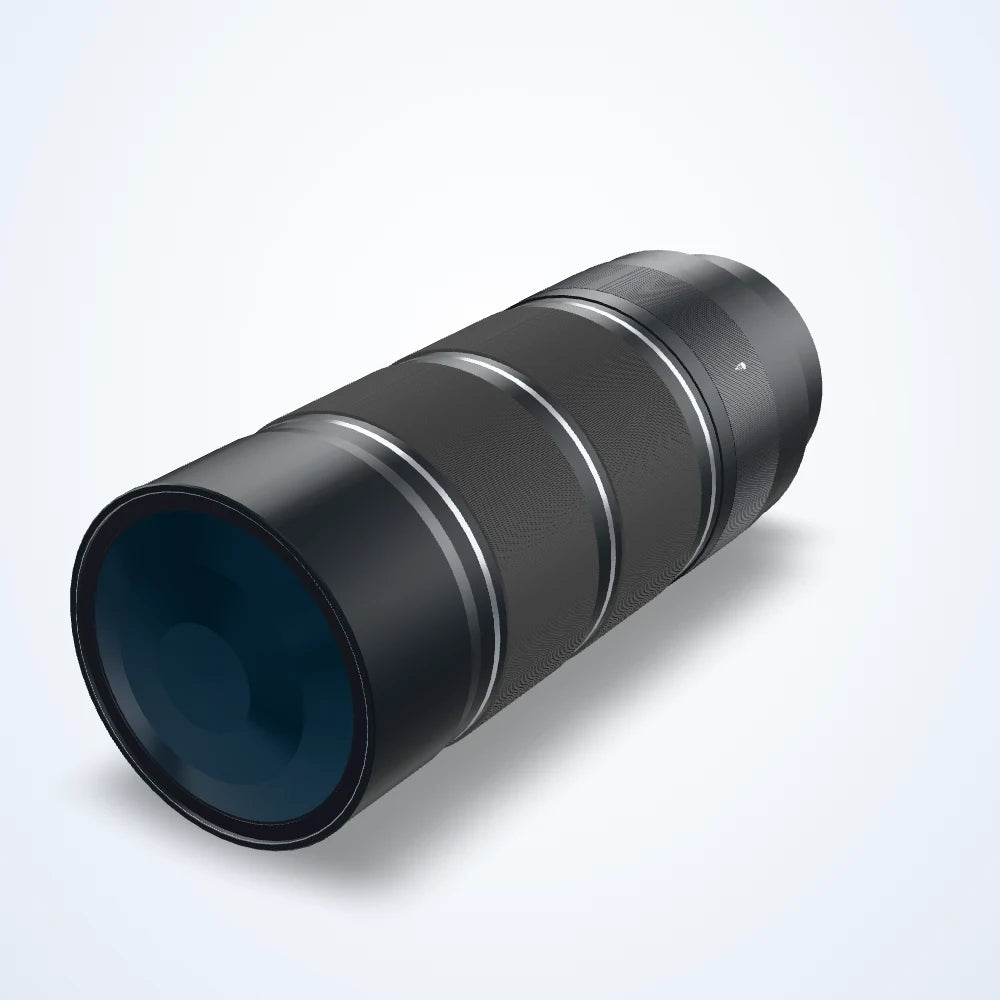

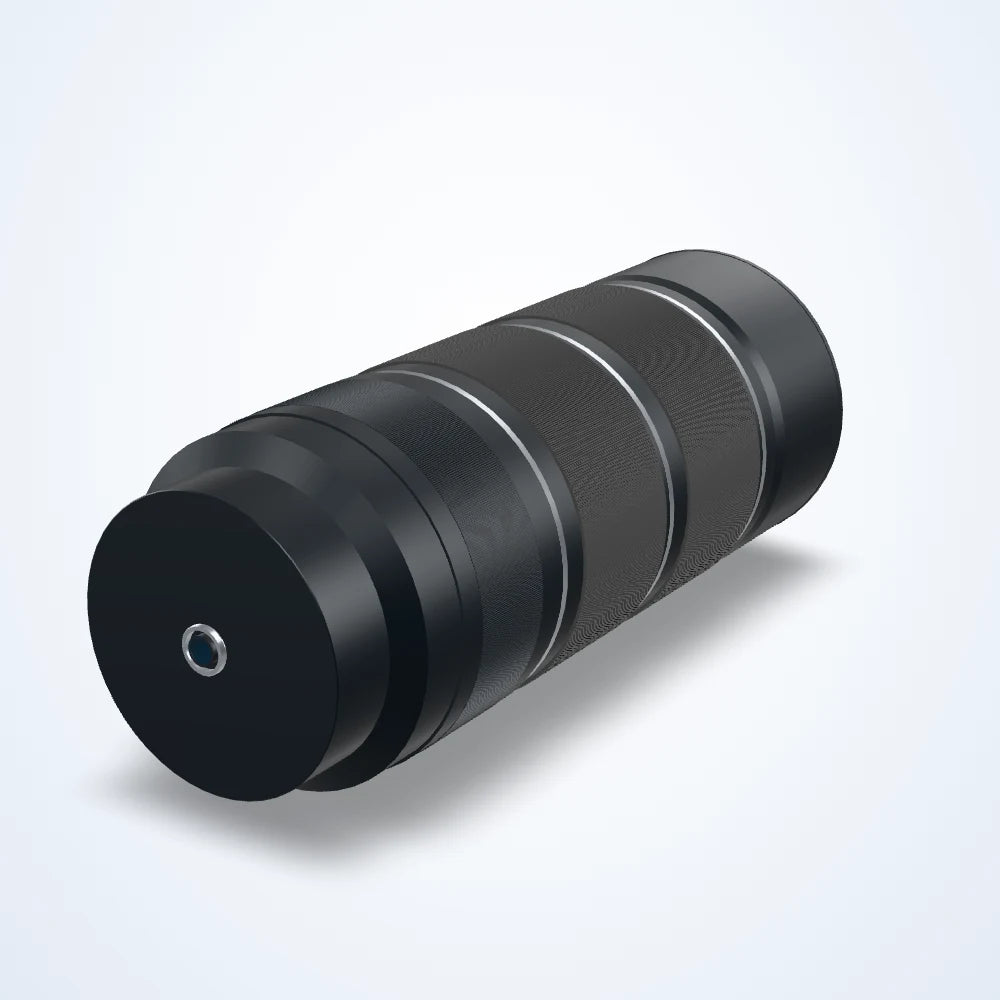

25-1200 mm SWIR zoom lens, 400-1700 nm, 1/1.8", F4.8, C-mount (LS-SWL-0266)
Model LS-SWL-0266
- Focal length25 - 1200 mm
- Magnification48X
- MountC-mount
- Sensor1/1.8"
- ApertureF4.8 - 10
- Field of view0.34 X 0.2° . at 1200 mm
$67,450.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 3-4 weeks
1.0 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
25-1200 mm SWIR zoom lens for SWIR, NIR and UV cameras. Focal length 25-1200 mm; covers sensors up to 1/1.8"; aperture F4.8; corrected for 400-1700 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0266 |
|---|---|
| Angle of view | 0.34 X 0.2°. at 1200 mm |
| Min. object distance | 15 m |
| Zoom | Motorized |
Optics
| Focal length | 25 - 1200 mm |
|---|---|
| Aperture | F4.8 - 10 |
| Field of view | 0.34 X 0.2° . at 1200 mm |
| Focus | Motorized |
| Magnification | 48X |
Sensor and imaging
| Sensor format | 1/1.8" |
|---|
Light
| Wavelength range | 400-1700 nm |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimensions | 178X139X429 mm |
| Shipping weight | 1.00 kg |
Other models in the SWIR lenses (LS-SWL-S09) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SWL-0264 | 20 mm, 1/1.8", C-mount | $54,550.00 Quote | Ships in 3-4 weeks | View |
