10 mm, F1 LWIR Thermal Lens, BFL 6.44 mm, dia. 31 x L26.22 mm (LS-SWL-0144)
Model LS-SWL-0144
- Focal length10 mm
- MountM45x1.0
- Sensor1/2"
- ApertureF1
$289.00
Ships in 2-3 weeks
0.19 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
10 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 10 mm; sensor 384×288 17μm; aperture F1; mount M45×1.0; distortion -8.3%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0144 |
|---|---|
| Angle of view (deg) | 46.84(D)x36.5(H)×27(V) |
| Front lens coating | AR |
Optics
| Focal length | 10 mm |
|---|---|
| Aperture | F1 |
| Distortion | -8.3% |
| Relative illumination | 0.9 |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 6.44 mm |
| Focus method | Adjustable focus |
| Image circle (derived) | dia. 8.2 mm, from the 384 x 288 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 384×288 17μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M45×1.0 |
|---|---|

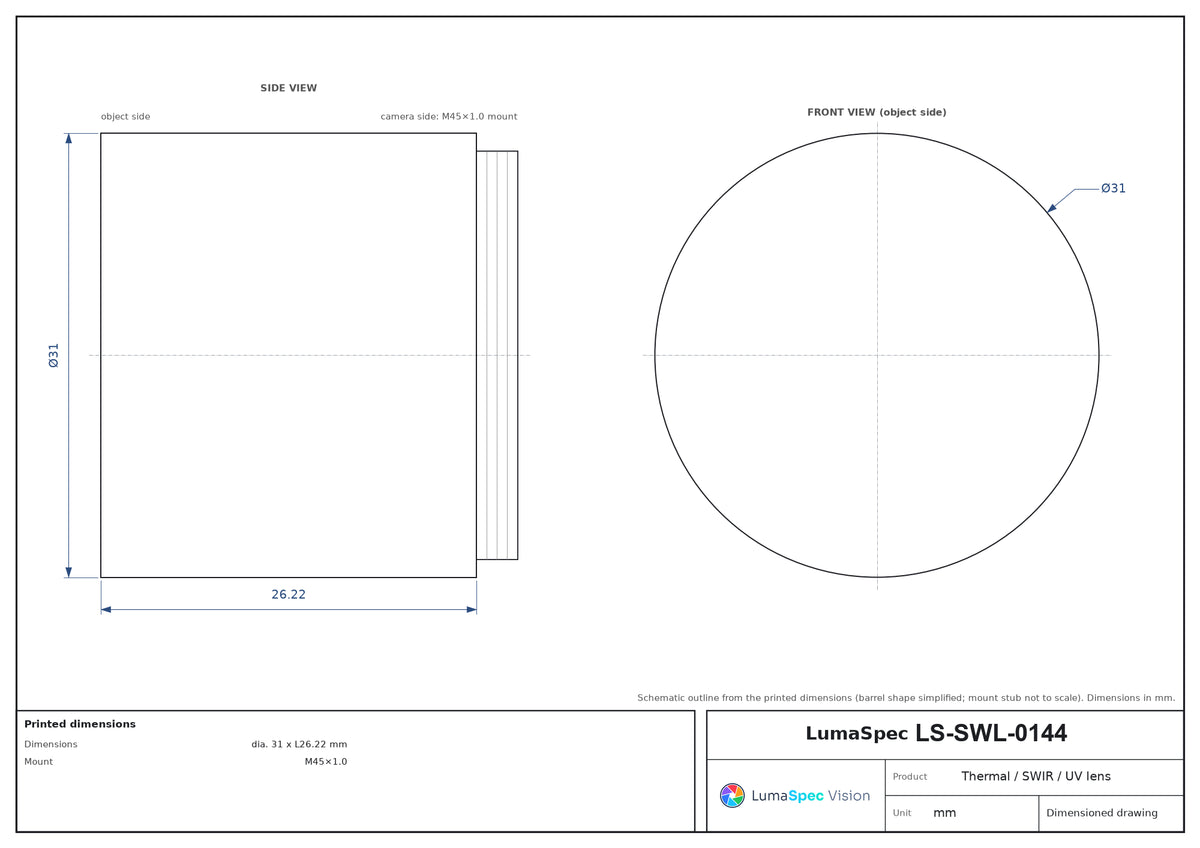

| Dimensions | dia. 31 x L26.22 mm |
| Weight | <65g |
| Shipping weight (estimated) | 0.19 kg |
Photo shows a representative model of this series; see the specifications for this model.
