13 mm, F1 LWIR Thermal Lens, BFL 7.5 mm, dia. 26 x L13.5 mm (LS-SWL-0047)
Model LS-SWL-0047
- Focal length13 mm
- MountM25x0.5
- Sensor1/2"
- ApertureF1
$329.00
Ships in 2-3 weeks
0.36 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
13 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 13 mm; sensor 384×288 17μm; aperture F1; mount M25×0.5; distortion 0.14%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0047 |
|---|---|
| Angle of view (deg) | 34.87°(D)×28.2°(H)×21.35°(V) |
Optics
| Focal length | 13 mm |
|---|---|
| Aperture | F1 |
| Distortion | 0.14% |
| Relative illumination | 0.87 |
| Focus method | Fixed |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 7.5 mm |
| Image circle (derived) | dia. 8.2 mm, from the 384 x 288 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 384×288 17μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M25×0.5 |
|---|---|

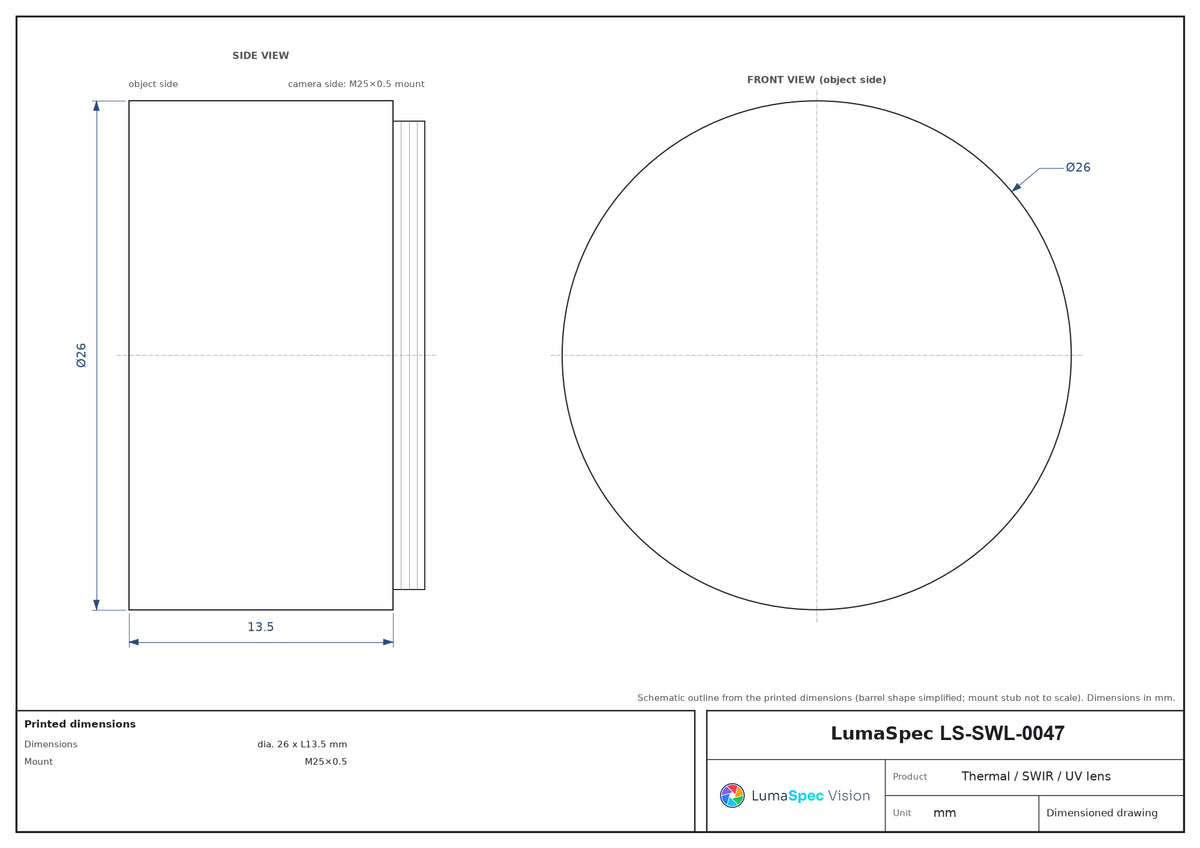

| Dimensions | dia. 26 x L13.5 mm |
| Shipping weight (estimated) | 0.36 kg |
Photo shows a representative model of this series; see the specifications for this model.
