Machine vision lenses
7-36 mm, 1/1.8", 6 MP, C-mount Machine Vision Zoom Lens (LS-SVFA0736-6M)
Model LS-SVFA0736-6M
- Focal length7-36mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 Manual iris
- Resolution6 Megapixel
$329.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
7-36 mm, 1/1.8", 6 MP, C-mount Machine Vision Zoom Lens. 7-36 mm F2.8 manual-iris varifocal machine vision lens for 1/1.8" 6 megapixel cameras, compact, TV distortion -3.2% to -0.8%, for measurement and positioning. At a glance: focal length 7-36mm; format 1/1.8"; resolution 6 Megapixel; aperture F2.8 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SVFA0736-6M |
|---|---|
| Format | 1/1.8" |
| Angle of view (1/1.8") | W: 58 x 38 T:12 x 8 |
| Angle of view (1/2") | W: 48 x 38 T:10 x 8 |
| Angle of view (1/2.8") | W:44 x 25 T:9 x 5 |
Optics
| Focal length | 7-36mm |
|---|---|
| Aperture | F2.8 Manual iris |
| M.O.D. | 150mm |
| Distortion (TV) | -3.2% ~ -0.8% |
| Filter thread | M35.5 x P0.5 |
Sensor and imaging
| Resolution | 6 Megapixel |
|---|
Environment and compliance
| Operating temperature | -20°~+60° |
|---|

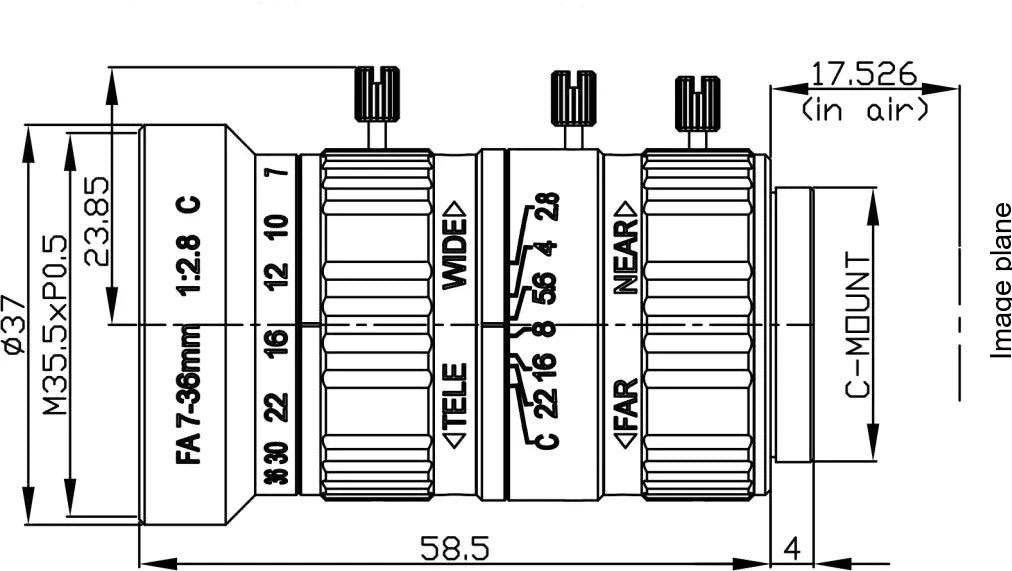

Mechanical
| Filter size | M35.5 x P0.5 |
|---|---|
| Size | dia. 37 x 58.5mm |
| Mount | C |
| Weight | 110g |
| Optical total length | 76 mm |
| Shipping weight (estimated) | 0.25 kg |
