50 mm, F1.2 LWIR Thermal Lens, BFL 7.02 mm (LS-STRLW20L2)
Model LS-STRLW20L2
- Focal length50 mm
- Sensor1/1.2"
- ApertureF1.2
- TypeThermal (LWIR)
$529.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.41 kg shipping weight
Volume pricing, Net 30 or a formal quote?
50 mm, F1.2 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 50 mm; sensor 640x512 17um; aperture F1.2; distortion -2.0%; angle of view 15.6° (D)x12.42(H)x9.95(V).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-STRLW20L2 |
|---|---|
| Angle of view (deg) | 15.6(D)x12.42(H)x9.95(V) |
| Sealing | Front IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F1.2 |
| Distortion | -2.0% |
| Relative illumination | 0.91 |
| Focus range | 3m~∞ |
| Mechanical back focal length | 7.02 mm |
| Focus method | Manual focus |
| Image circle (derived) | dia. 13.9 mm, from the 640 x 512 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 640x512 17um |
|---|
Environment and compliance
| Operating temperature | Non-athermalized |
|---|
Mechanical

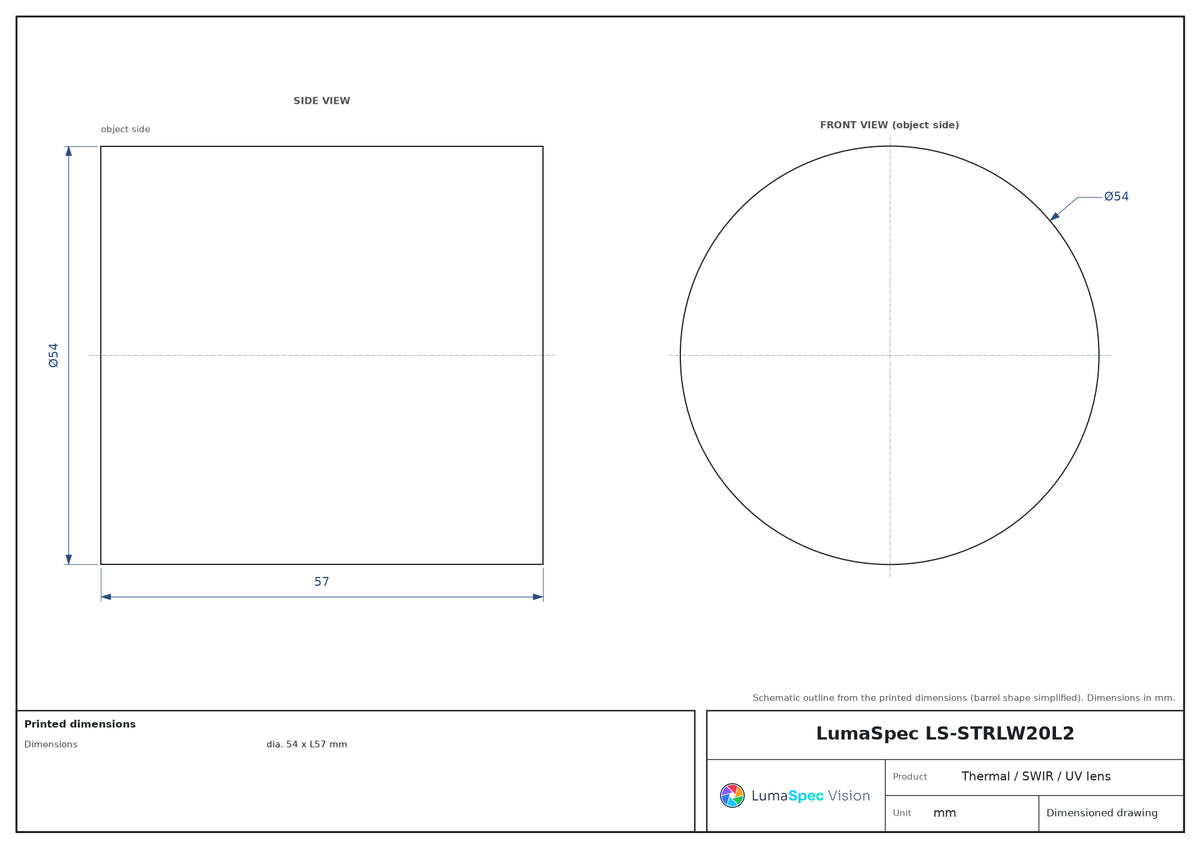

| Dimensions | dia. 54 x L57 mm |
|---|---|
| Weight | <220g |
| Shipping weight (estimated) | 0.41 kg |
Photo shows a representative model of this series; see the specifications for this model.
