25 mm, F1.2 LWIR Thermal Lens, BFL 8.5 mm (LS-STRFA66K2L3)
Model LS-STRFA66K2L3
- Focal length25 mm
- MountM34x1.5
- Sensor1/2.7"
- ApertureF1.2
$309.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25 mm, F1.2 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 25 mm; sensor 320×240 17μm; aperture F1.2; mount M34×1.5; distortion -3.08%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-STRFA66K2L3 |
|---|---|
| Angle of view (deg) | 15.54(D)x12.4(H)×9.3(V) |
| Front lens coating | HD |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F1.2 |
| Distortion | -3.08% |
| Relative illumination | 0.9 |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 8.5 mm |
| Focus method | Adjustable focus |
| Image circle (derived) | dia. 6.8 mm, from the 320 x 240 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 320×240 17μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M34×1.5 |
|---|---|

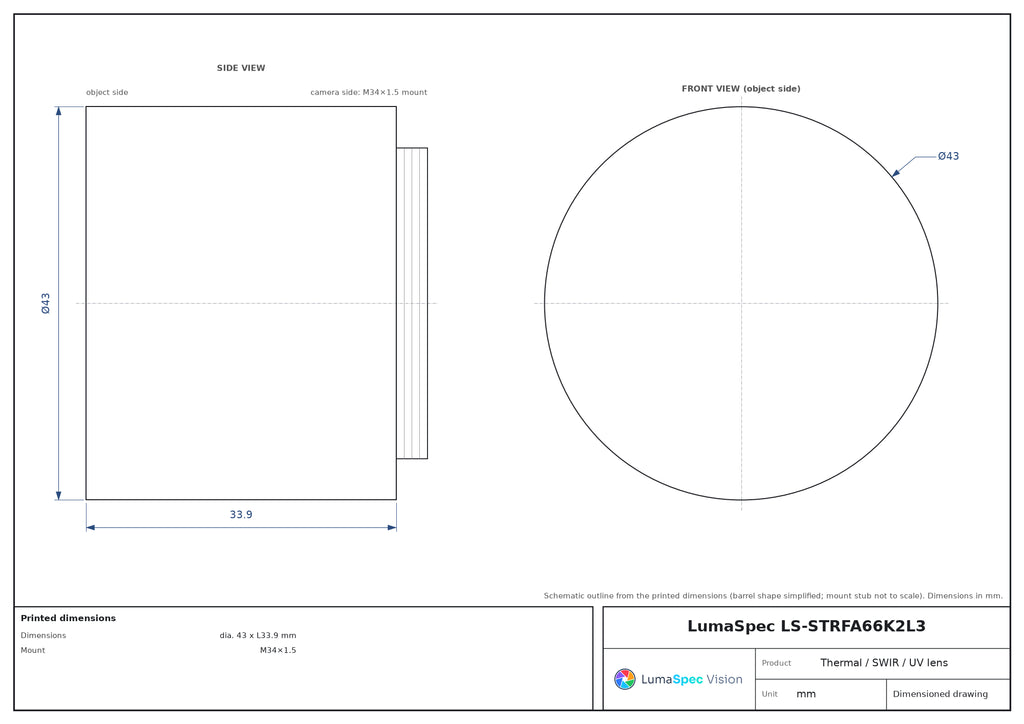

| Dimensions | dia. 43 x L33.9 mm |
| Weight | <105g |
| Shipping weight (estimated) | 0.25 kg |
Photo shows a representative model of this series; see the specifications for this model.
