Machine vision lenses
75 mm, 1.1", 12MP, C-mount Macro Lens (LS-SRW7511C)
Model LS-SRW7511C
- Focal length75 mm
- Magnification0.24-0.48
- MountC-mount
- Sensor1.1"
- Working distance202.88-344.28 mm
$259.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 or a formal quote?
75 mm, 1.1", 12MP, C-mount Macro Lens. 1.1 Inch 12MP Macro Lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SRW7511C |
|---|
Optics
| Focal length (mm) | 75 |
|---|---|
| Iris (F/#) | 2.8-16 |
| Magnification range (X) | 0.24-0.48 |
| Working distance (mm) | 202.88-344.28 |
| Distortion (%) | < 0.03 |
| Relative illumination (%) | > 90 |
| Filter screw size | M43 * P0.75 |
| Format size (") | 1.1 |
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 0.50 kg |

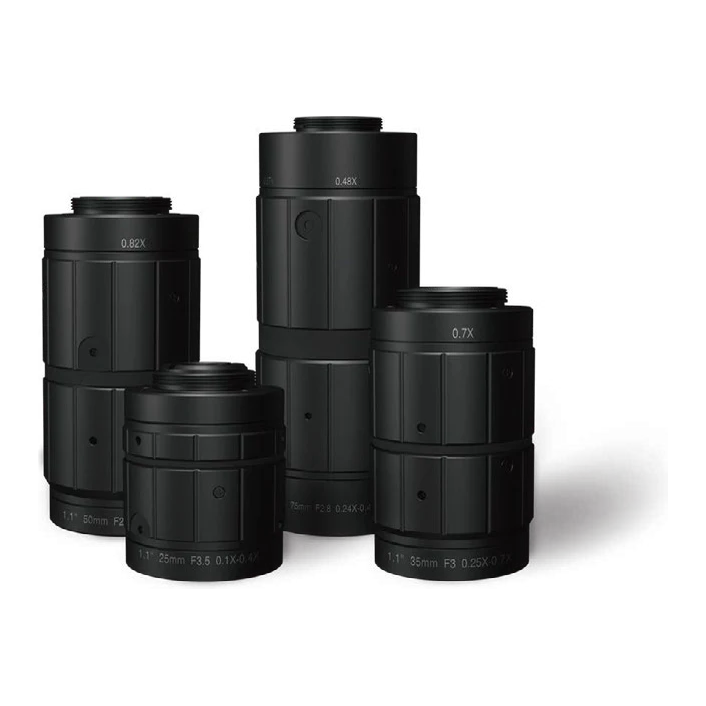

Other models in the 1.1 inch 12MP macro lens (SRW..11C) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SRW2511C | 25 mm, 1.1", 12MP, C-mount | $209.00 | 5 in stock | View |
| LS-SRW3511C | 35 mm, 1.1", 12MP, C-mount | $219.00 | 4 in stock | View |
| LS-SRW5011C | 50 mm, 1.1", 12MP, C-mount | $239.00 | 5 in stock | View |
