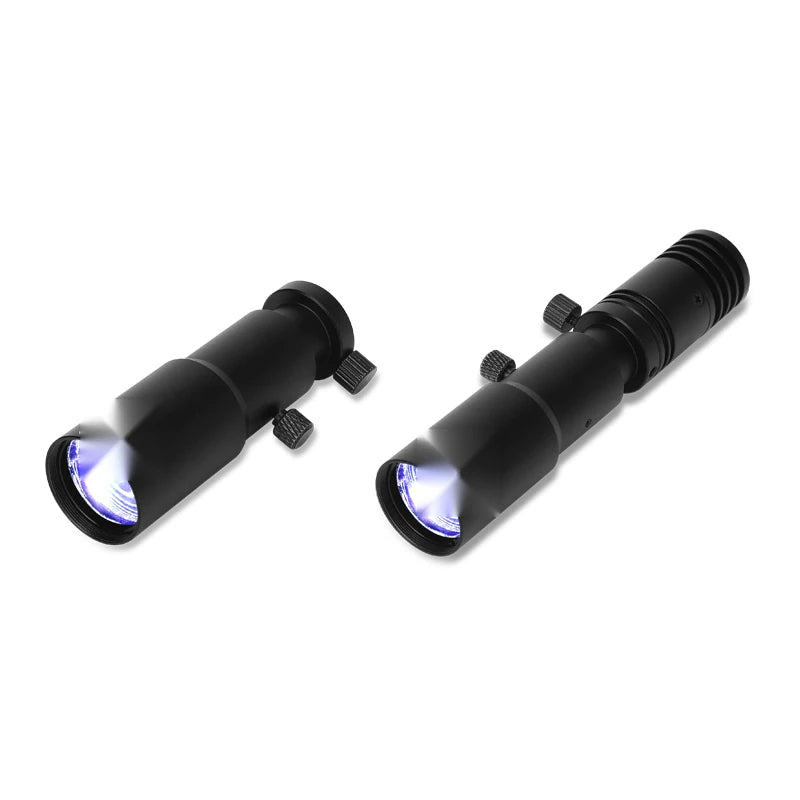

Representative photo of this series
Spot lights
Spot collector light, 144.1 x 51 mm (LS-SPT-0171)
Model LS-SPT-0171
- ColourWhite
- SizeL144.1xW51(mm)
- Power10W
- LED colourR(red)/W(white)
$529.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The collector lens adopts multi-lens and adjustable focal length design, which can be adjusted to the most suitable brightness and spot size under different working distances, and has a wider application range.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0171 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Light spot dia. by WD (mm) | WD 50: Ø20; WD 100: Ø22.5; WD 150: Ø25; WD 200: Ø27.5; WD 250: Ø33.5; WD 350: Ø48; WD 450: Ø63 |
| Spot adjustment | The irradiation distance and spot size can be adjusted by changing the length of the lens barrel |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: NC |
|---|---|

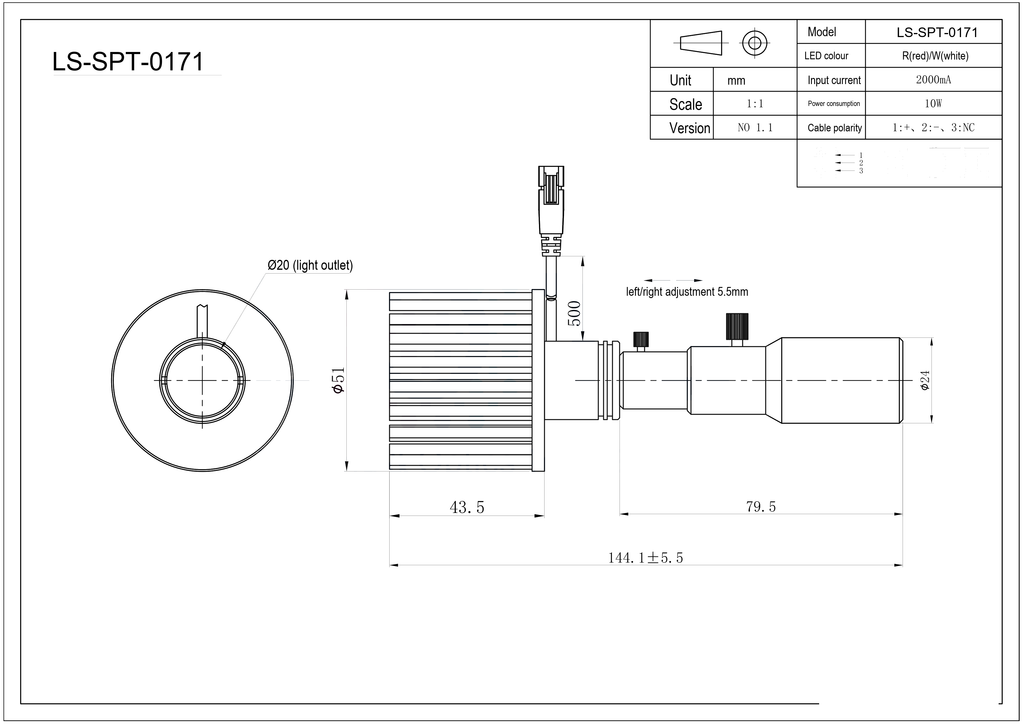

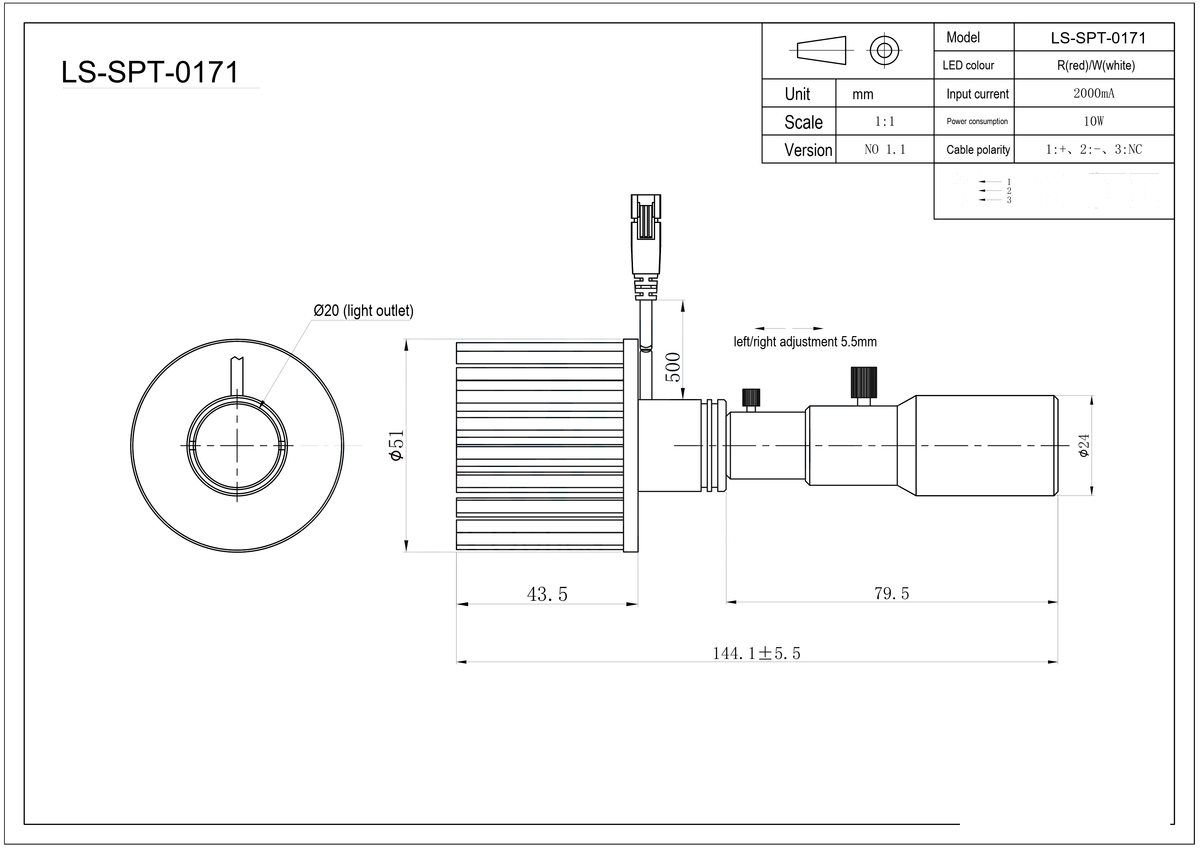

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting port dia. (mm) | 20 |
Electrical
| Power | 10W |
|---|
Mechanical
| Dimension | L144.1xW51(mm) |
|---|---|
| Shipping weight | 0.50 kg |
Other models in the Spot collector light (LS-SPT-S43) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0168 | White · L118.7xW24(mm) | $349.00 | 2 in stock | View |
| LS-SPT-0169 | White · L118.7xW24(mm) | $349.00 | 2 in stock | View |
| LS-SPT-0170 | White · L135.2xW24(mm) | $349.00 | 5 in stock | View |
| LS-SPT-0165 | White · L97.2xW25(mm) | $359.00 | 2 in stock | View |
| LS-SPT-0166 | White · L114.2xW25(mm) | $359.00 | 5 in stock | View |
| LS-SPT-0167 | White · L123.1xW25(mm) | $359.00 | 2 in stock | View |
