Representative photo of this series

Spot lights

Spot collector light, 123.1 x 25 mm (LS-SPT-0167)

Model LS-SPT-0167

ColourWhite
SizeL123.1xW25(mm)
Power10W
LED colourR(red)/W(white)

$359.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

The collector lens adopts multi-lens and adjustable focal length design, which can be adjusted to the most suitable brightness and spot size under different working distances, and has a wider application range.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SPT-0167
Note	UV & IR light can be customized as required.
Light spot dia. by WD (mm)	WD 50: Ø30; WD 100: Ø50; WD 150: Ø70; WD 200: Ø100; WD 250: Ø125; WD 350: Ø170; WD 450: Ø210

Interfaces and I/O

Cable polarity	1: +, 2: -, 3: NC

Light

LED colour	R(red)/W(white)

Electrical

Power	10W

Mechanical

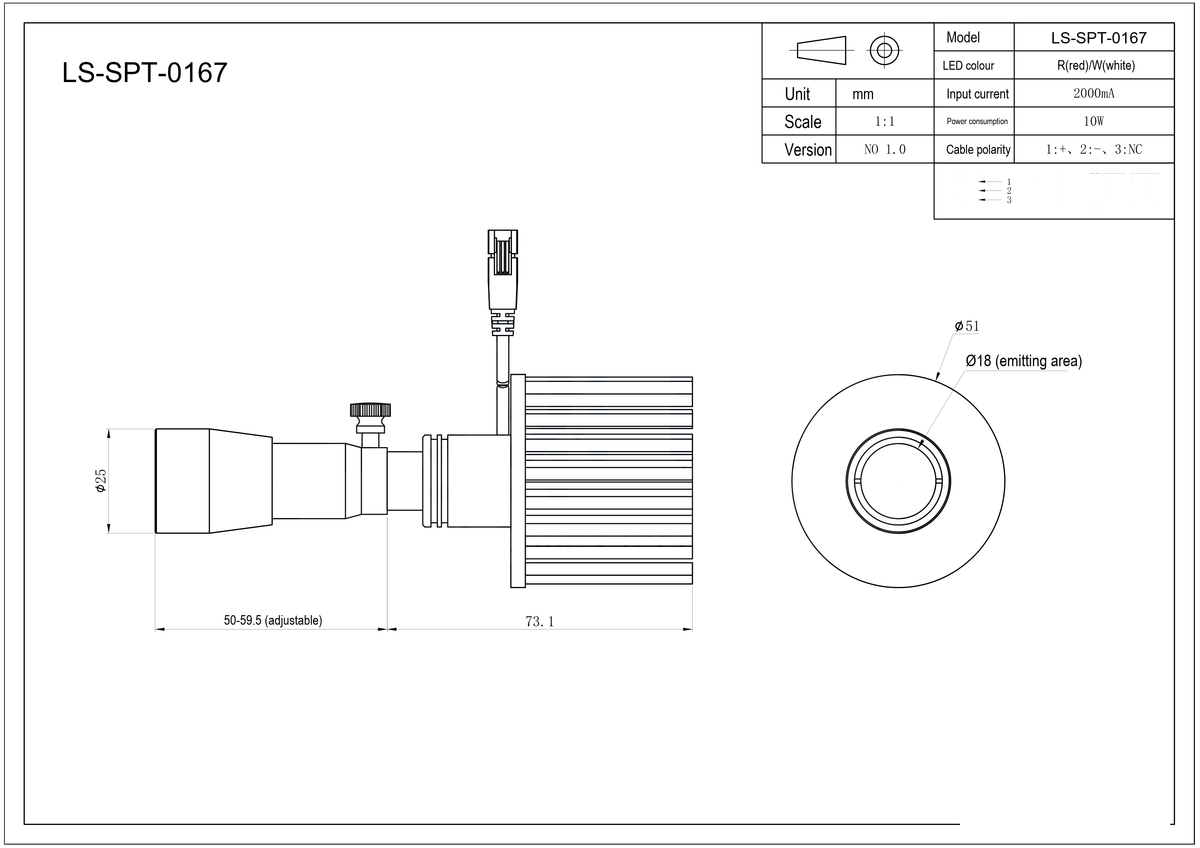

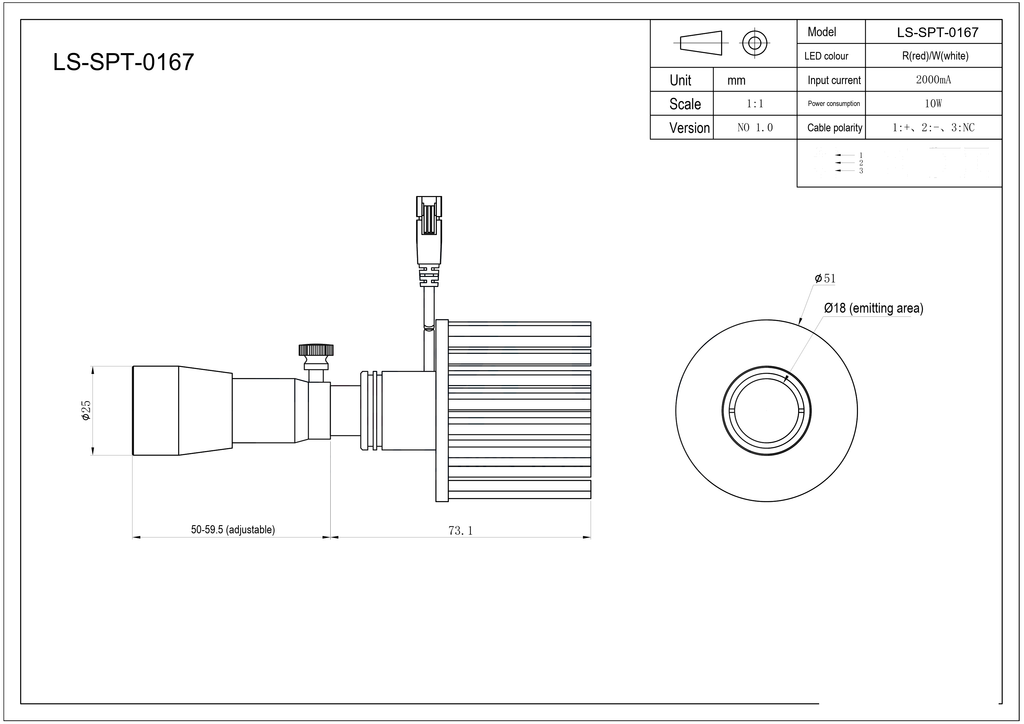

Dimension	L123.1xW25(mm)
Shipping weight	0.50 kg

Other models in the Spot collector light (LS-SPT-S43) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-SPT-0168	White · L118.7xW24(mm)	$349.00	Ships in 2-3 weeks	View
LS-SPT-0169	White · L118.7xW24(mm)	$349.00	Ships in 2-3 weeks	View
LS-SPT-0170	White · L135.2xW24(mm)	$349.00	Ships in 2-3 weeks	View
LS-SPT-0165	White · L97.2xW25(mm)	$359.00	Ships in 2-3 weeks	View
LS-SPT-0166	White · L114.2xW25(mm)	$359.00	Ships in 2-3 weeks	View
LS-SPT-0171	White · L144.1xW51(mm)	$529.00	Ships in 2-3 weeks	View
