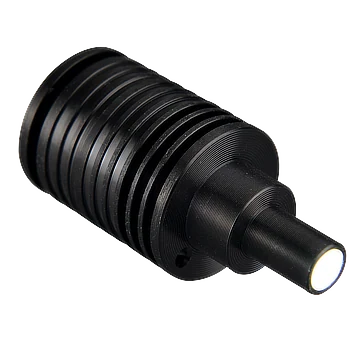

Spot Light, 30 mm dia., Blue (LS-SPT-0163)
  • Spot Light, 30 mm dia., Blue (LS-SPT-0163)

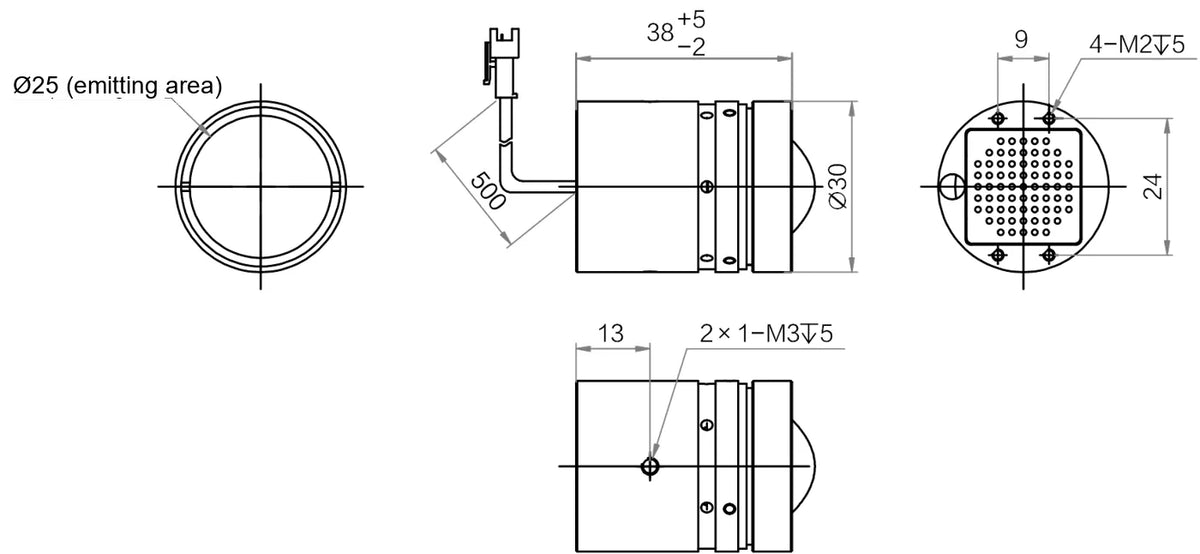

  • LS-SPT-0163 dimensions (mm)

Spot lights

Spot Light, 30 mm dia., Blue (LS-SPT-0163)

Model LS-SPT-0163

  • ColourBlue
  • Emitting areaΦ25 mm
  • SizeΦ30 mm × 38 mm
  • Power5 W
  • Wavelength465 nm
$399.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Spot Light, 30 mm dia., Blue (LS-SPT-0163)LS-SPT-0163

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Spot Light, 30 mm dia., Blue. High-power LEDs for high brightness One-piece aluminum alloy body for efficient heat dissipation

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPT-0163

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorBlue
Wavelength465 nm
Emitting area outer diameterΦ25 mm
Diffuse plate includedNo

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power5 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

DimensionΦ30 mm × 38 mm
Outer dimensionΦ30 mm
Shipping weight (estimated)0.66 kg

Other models in the Classic spot lights (LS-SPT-S42) series

See all 7 models
ModelSize / key dataPriceAvailabilityLink
LS-SPT-0161 24 mm dia., UV 365 nm $349.00 Ships in 2-3 weeks View
LS-SPT-0159 24 mm dia., IR 850 nm $349.00 Ships in 2-3 weeks View
LS-SPT-0160 24 mm dia., Red $349.00 Ships in 2-3 weeks View
LS-SPT-0162 24 mm dia., White $349.00 Ships in 2-3 weeks View
LS-SPT-0158 24 mm dia., Blue $349.00 Ships in 2-3 weeks View
LS-SPT-0164 30 mm dia., IR 740 nm $399.00 Ships in 2-3 weeks View
