Spot lights

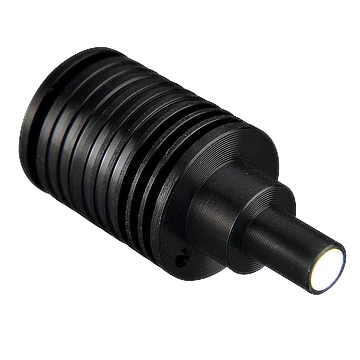

Spot Light, 24 mm dia., UV 365 nm (LS-SPT-0161)
Model LS-SPT-0161
- ColourUV
- Emitting areaΦ6 mm
- SizeΦ24 mm × 52 mm
- Power1.3 W
- Wavelength365 nm
$349.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Spot Light, 24 mm dia., UV 365 nm. High-power LEDs for high brightness One-piece aluminum alloy body for efficient heat dissipation
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0161 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | UV |
|---|---|
| Wavelength | 365 nm |
| Emitting area outer diameter | Φ6 mm |
| Diffuse plate included | No |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 1.3 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | Φ24 mm × 52 mm |
|---|---|
| Outer dimension | Φ24 mm |
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic spot lights (LS-SPT-S42) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0159 | 24 mm dia., IR 850 nm | $349.00 | Ships in 2-3 weeks | View |
| LS-SPT-0160 | 24 mm dia., Red | $349.00 | Ships in 2-3 weeks | View |
| LS-SPT-0162 | 24 mm dia., White | $349.00 | Ships in 2-3 weeks | View |
| LS-SPT-0158 | 24 mm dia., Blue | $349.00 | Ships in 2-3 weeks | View |
| LS-SPT-0163 | 30 mm dia., Blue | $399.00 | Ships in 2-3 weeks | View |
| LS-SPT-0164 | 30 mm dia., IR 740 nm | $399.00 | Ships in 2-3 weeks | View |
