Spot lights

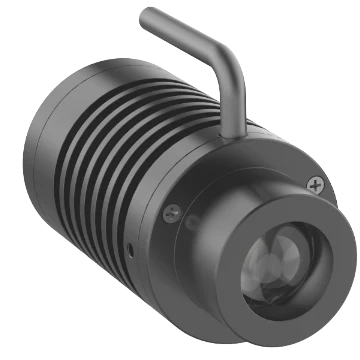

Spot Light, 20 x 10 mm, White (LS-SPT-0150)

Model LS-SPT-0150

ColourWhite
Size75.3 mm × Ø40 mm
Power9 W
Center illuminance> 400K lux@WD=100 mm

$329.00

Ships in 2-3 weeks

0.24 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Spot Light, 20 x 10 mm, White. Provides round direct light source to achieve uniform illumination in the center area. Adopts a high focusing design with high brightness, surface illuminance (center) > 2000K lux.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SPT-0150
Safety class	RG2
Safety distance	5.40 m
Cooling mode	Natural cooling

Optics

Best working distance	50 ~ 500 mm

Interfaces and I/O

Connector type	12M-5A
Cable length	1 m

Light

Color	White
Center illuminance	> 400K lux@WD=100 mm
Color temperature	6000 ~ 7000K

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 80°C (–4 °F to 176 °F)
Humidity	20% RH to 90% RH (no condensation)

Electrical

Power	9 W
Input current	3 A
Drive mode	Constant current

Mechanical

Dimension	75.3 mm × Ø40 mm
Optical outlet diameter	Ø18.5 mm
Weight	0.1 kg
Shipping weight (estimated)	0.24 kg

Other models in the High-brightness spot lights (LS-SPT-S38) series

See the category

Model	Size / key data	Price	Availability	Link
LS-SPT-0149	20 x 5 mm, IR 850 nm	$329.00	Ships in 2-3 weeks	View
