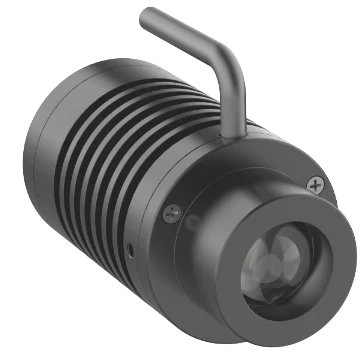

Spot Light, 20 x 5 mm, IR 850 nm (LS-SPT-0149)
Model LS-SPT-0149
- ColourInfrared
- Size75.3 mm × Ø40 mm
- Power5 W
- Wavelength850 nm
$329.00
Ships in 2-3 weeks
0.24 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Spot Light, 20 x 5 mm, IR 850 nm. Provides round direct light source to achieve uniform illumination in the center area. Adopts a high focusing design with high brightness, surface illuminance (center) > 2000K lux.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0149 |
|---|---|
| Safety class | RG2 |
| Safety distance | 5.40 m |
| Cooling mode | Natural cooling |
Optics
| Best working distance | 50 ~ 500 mm |
|---|
Interfaces and I/O
| Connector type | 12M-5A |
|---|---|
| Cable length | 1 m |
Light
| Color | Infrared |
|---|---|
| Center illuminance | > 150m W/cm2@WD=100 mm |
| Wavelength | 850 nm |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 80°C (–4 °F to 176 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 5 W |
|---|---|
| Input current | 1.5 A |
| Drive mode | Constant current |
Mechanical
| Dimension | 75.3 mm × Ø40 mm |
|---|---|
| Optical outlet diameter | Ø18.5 mm |
| Weight | 0.1 kg |
| Shipping weight (estimated) | 0.24 kg |
Other models in the High-brightness spot lights (LS-SPT-S38) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SPT-0150 | 20 x 10 mm, White | $329.00 | Ships in 2-3 weeks | View |
