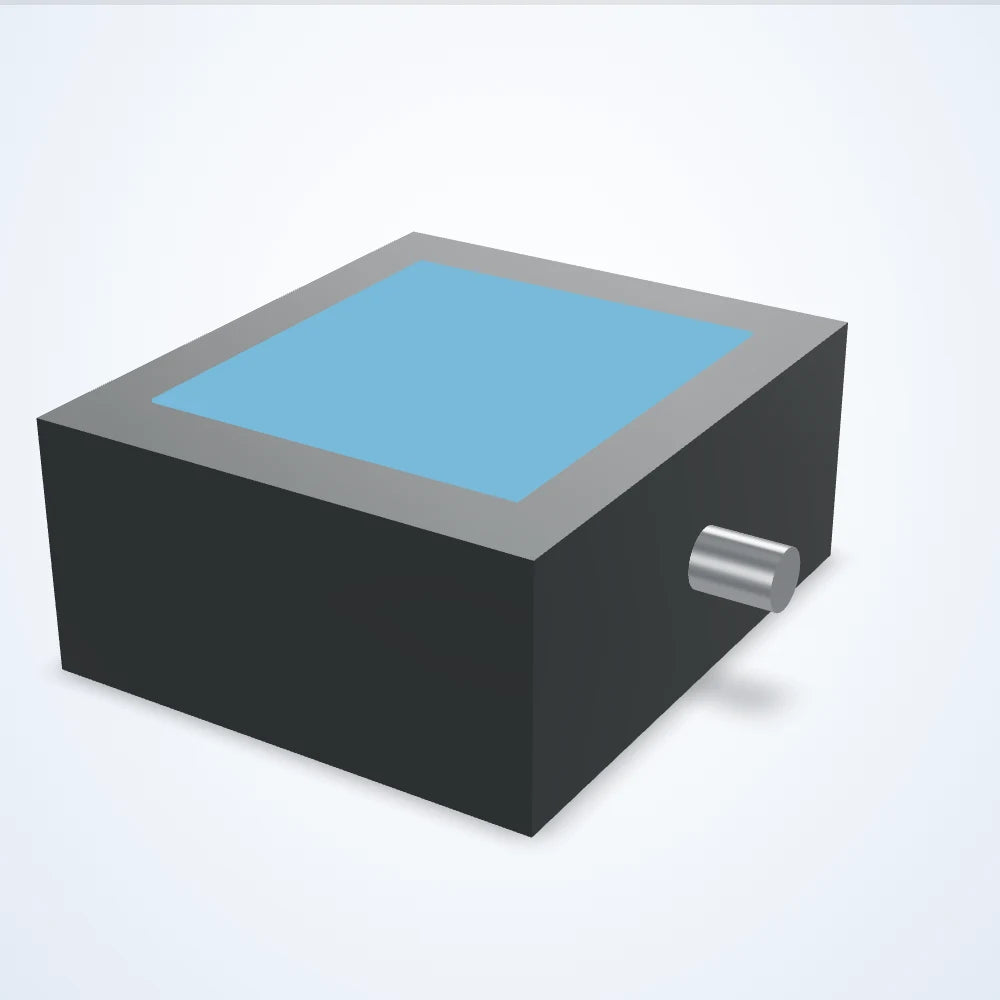

Spot light, 76.2 x 85.7 mm lit area, driver sold separately (LS-SPT-0112) - view 4
  • Spot light, 76.2 x 85.7 mm lit area, driver sold separately (LS-SPT-0112) - view 4

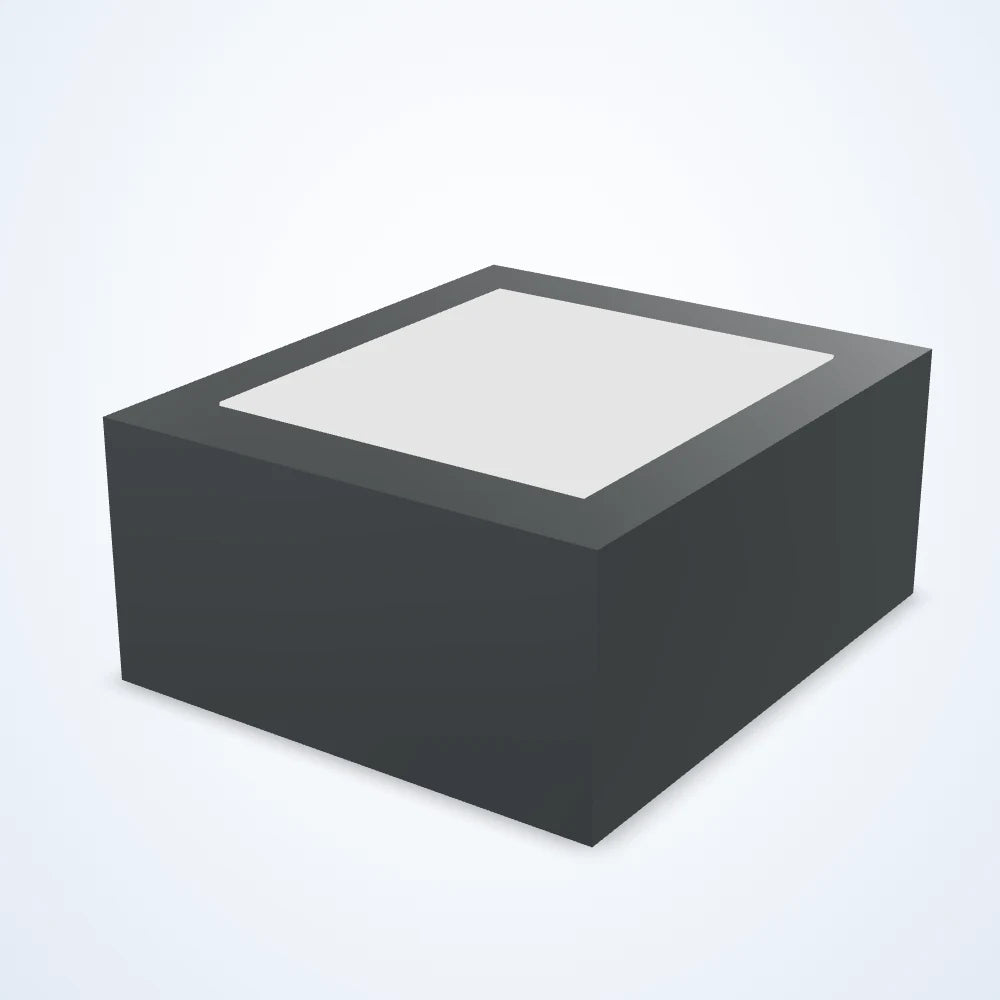

  • Spot light, 76.2 x 85.7 mm lit area, driver sold separately (LS-SPT-0112) - view 2
  • Spot light, 76.2 x 85.7 mm lit area, driver sold separately (LS-SPT-0112) - view 5
  • Spot light, 76.2 x 85.7 mm lit area, driver sold separately (LS-SPT-0112) - view 6

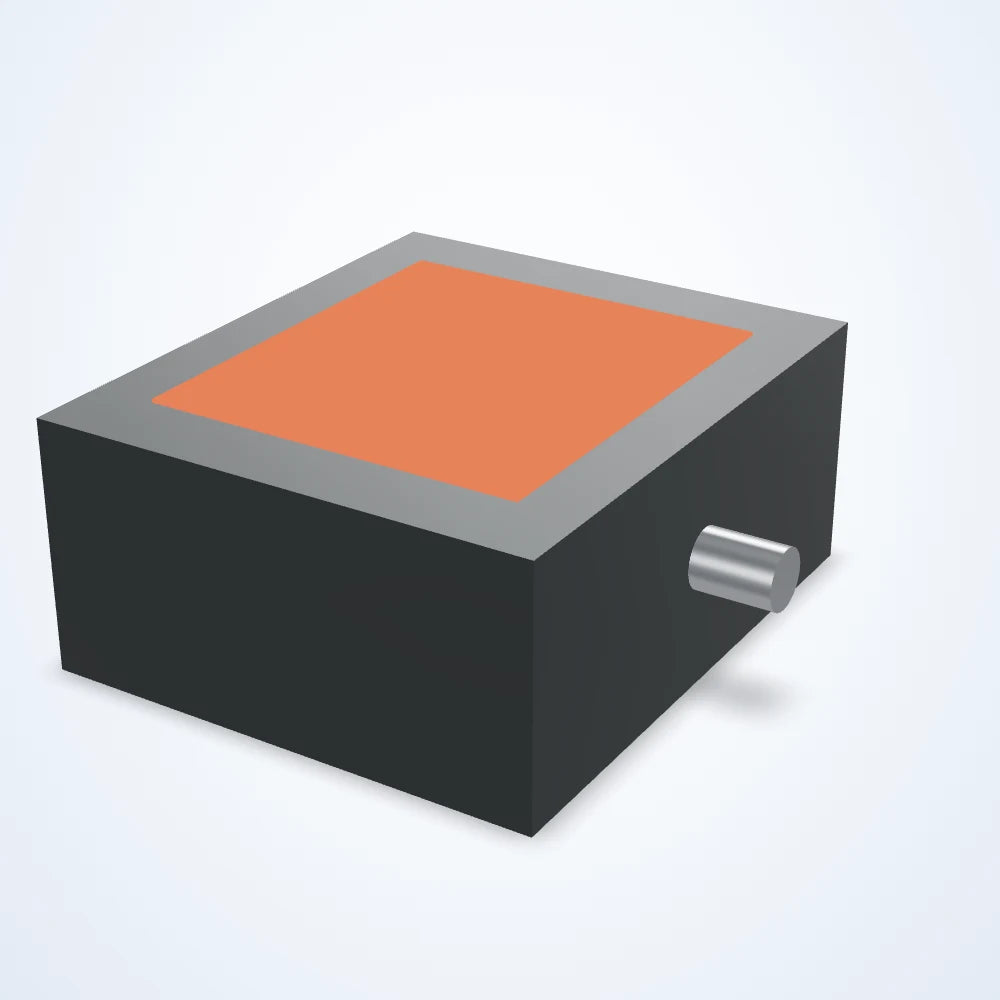

  • Spot light, 76.2 x 85.7 mm lit area, driver included (LS-SPT-0121) - view 5

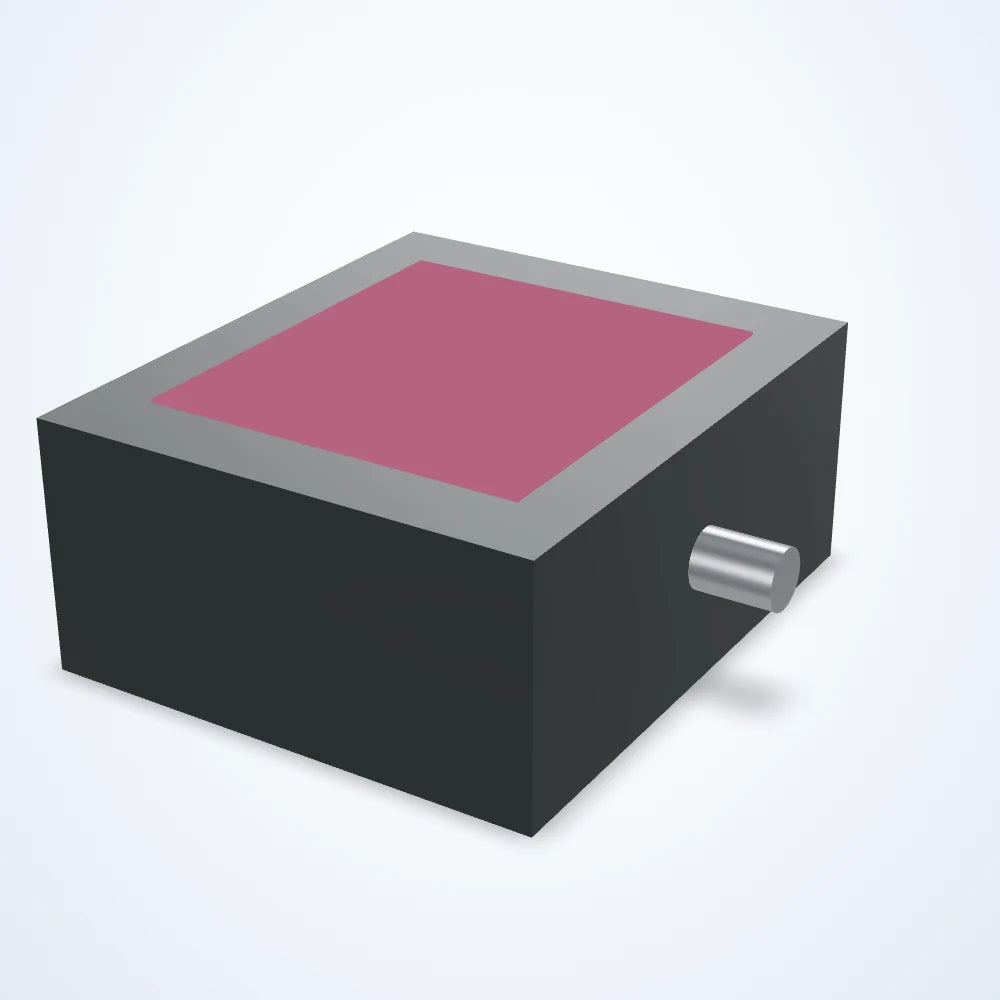

  • Spot light, 76.2 x 85.7 mm lit area, driver included (LS-SPT-0121) - view 6

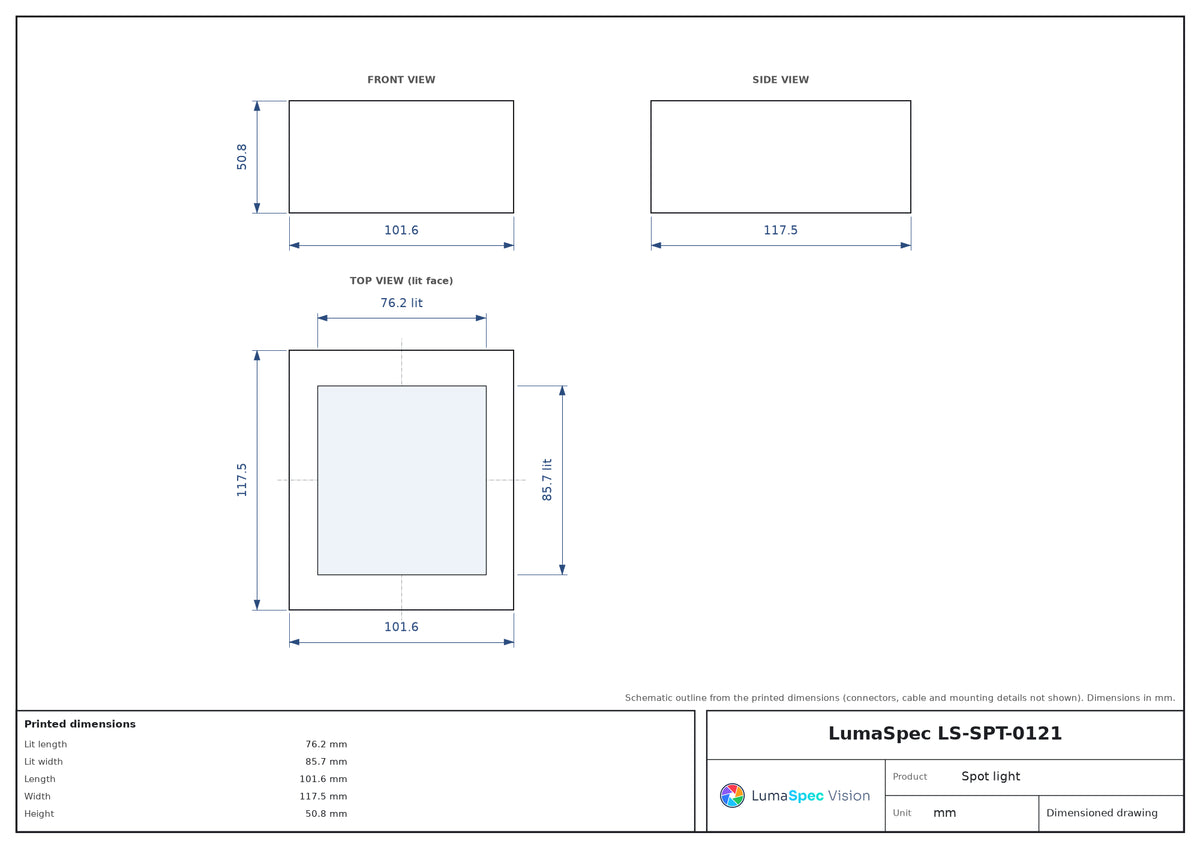

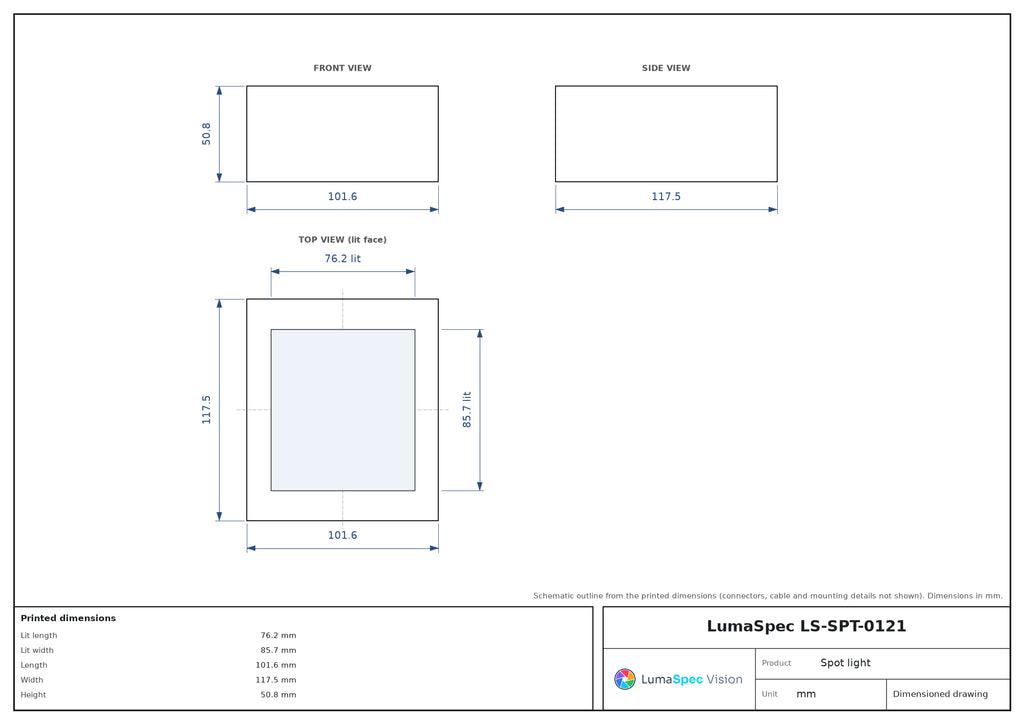

  • LS-SPT-0121 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Spot lights

Spot light, 76.2 x 85.7 mm lit area, driver included (LS-SPT-0121)

Model LS-SPT-0121

  • ColourWhite, Red, Green, Infrared, Blue
  • Voltage24 VDC
  • AngleDiffused
  • Wavelength850 nm, 940 nm
from $1,089.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 1-2 weeks

Choose a configuration 7 available

Configuration LS-SPT-0121-1 $1,089.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Compact spot light for small fields of view and high intensity at a distance. Lit area 76.2 x 85.7 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (7 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPT-0121
Connection at lightConnectorized
Driver includedIncluded
Driver locationInternal
Intensity controlAnalog Voltage, Integrated Potentiometer
Operating modesConstant On, Constant On – Dimmable
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

Connector5 Pin M12 Male A-Coded

Light

Lens / beam angleDiffused
DiffusedDiffused

Environment and compliance

Operating temperature-18 to 40 °C
IP ratingIP68
Storage temperature-18 to 40 °C
ComplianceCE, IEC 62471, RoHS

Electrical

Voltage24 VDC
Strobe trigger inputNPN Trigger, PNP Trigger
Maximum constant on current (mA)375
Maximum input power constant on (W)9
NPN trigger current (mA)15
NPN trigger voltage (V)< 1 VDC
PNP trigger current (mA)20
PNP trigger voltage (V)4-24 VDC

Mechanical

Lit length (mm)76.2
Lit width (mm)85.7
Length (mm)101.6
Width (mm)117.5
Height (mm)50.8
HousingStainless Steel
MountingThrough Holes
