Spot light, 22 x 22 mm lit area, IP50 (LS-SPT-0114)
  • Spot light, 22 x 22 mm lit area, IP50 (LS-SPT-0114)
  • Spot light, 22 x 22 mm lit area, IP50 (LS-SPT-0114) - view 2
  • Spot light, 22 x 22 mm lit area, IP50 (LS-SPT-0114) - view 3
  • Spot light, 22 x 22 mm lit area, IP50 (LS-SPT-0114) - view 4
  • Spot light, 22 x 22 mm lit area, IP50 (LS-SPT-0114) - view 5
  • Spot light, 22 x 22 mm lit area, IP50 (LS-SPT-0114) - view 6

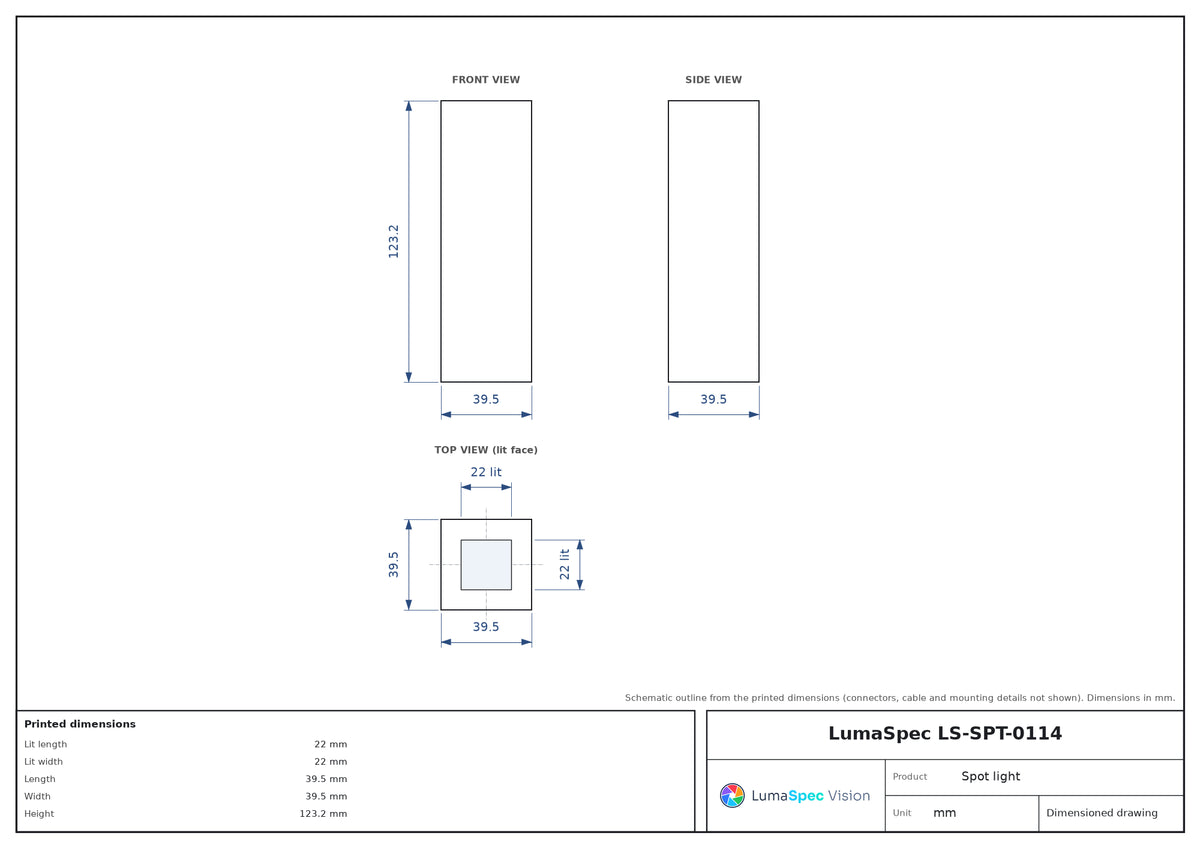

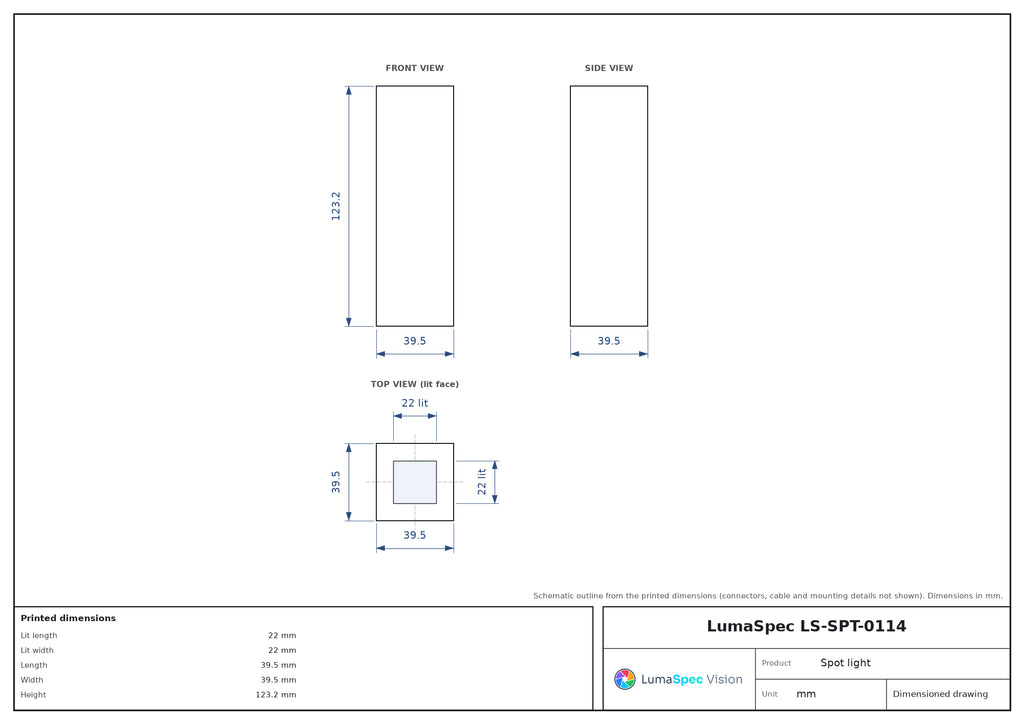

  • LS-SPT-0114 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Spot lights

Spot light, 22 x 22 mm lit area, IP50 (LS-SPT-0114)

Model LS-SPT-0114

  • ColourWhite, Red, Green, Infrared, Blue
  • Voltage24 VDC
  • AngleDiffused
  • Wavelength850 nm, 940 nm
from $439.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 1-2 weeks

Choose a configuration 7 available

Configuration LS-SPT-0114-1 $439.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Compact spot light for small fields of view and high intensity at a distance. Lit area 22 x 22 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (7 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPT-0114
Connection at lightConnectorized
Driver includedIncluded
Driver locationInternal
Intensity controlAnalog Voltage
Operating modesOvercurrent Strobe, Overcurrent Strobe - Dimmable
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)10
PolarizedNot Polarized

Interfaces and I/O

Connector5 Pin M12 Male A-Coded

Light

Lens / beam angleDiffused
DiffusedDiffused

Environment and compliance

Operating temperature-10 to 40 °C
IP ratingIP50
Storage temperature-20 to 70 °C
ComplianceCE, IEC 62471, RoHS

Electrical

Voltage24 VDC
Strobe trigger inputNPN Trigger, PNP Trigger
Max overcurrent strobe current1250 mA
Max overcurrent strobe input power30 W
Maximum current (overcurrent strobe) (mA)1250
Maximum input power overcurrent strobe (W)30
Maximum overcurrent strobe duration (ms)50
Maximum overcurrent strobe duty cycle (%)10
Maximum overcurrent strobe frequency (Hz)4000
Maximum overcurrent strobe latency (µs)6
Minimum overcurrent strobe duration (µs)10
NPN trigger current (mA)14
NPN trigger voltage (V)< 1 VDC
PNP trigger current (mA)17.6
PNP trigger voltage (V)4-24 VDC

Mechanical

Lit length (mm)22
Lit width (mm)22
Length (mm)39.5
Width (mm)39.5
Height (mm)123.2
HousingAluminum
MountingThrough Holes
