Spot light, 46 x 69 mm lit area (LS-SPT-0110)
  • Spot light, 46 x 69 mm lit area (LS-SPT-0110)
  • Spot light, 46 x 69 mm lit area (LS-SPT-0110) - view 2

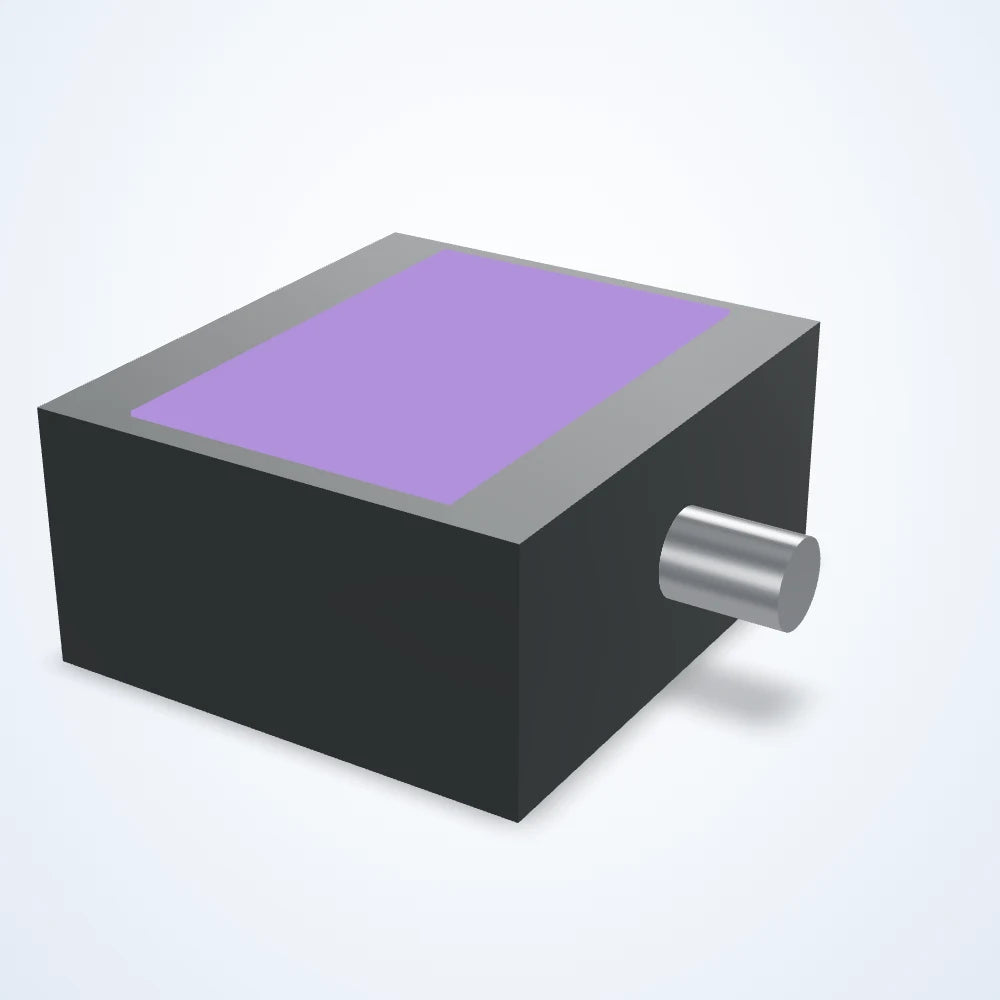

  • Spot light, 46 x 69 mm lit area (LS-SPT-0110) - view 3
  • Spot light, 46 x 69 mm lit area (LS-SPT-0110) - view 4
  • Spot light, 46 x 69 mm lit area (LS-SPT-0110) - view 5
  • Spot light, 46 x 69 mm lit area (LS-SPT-0110) - view 6

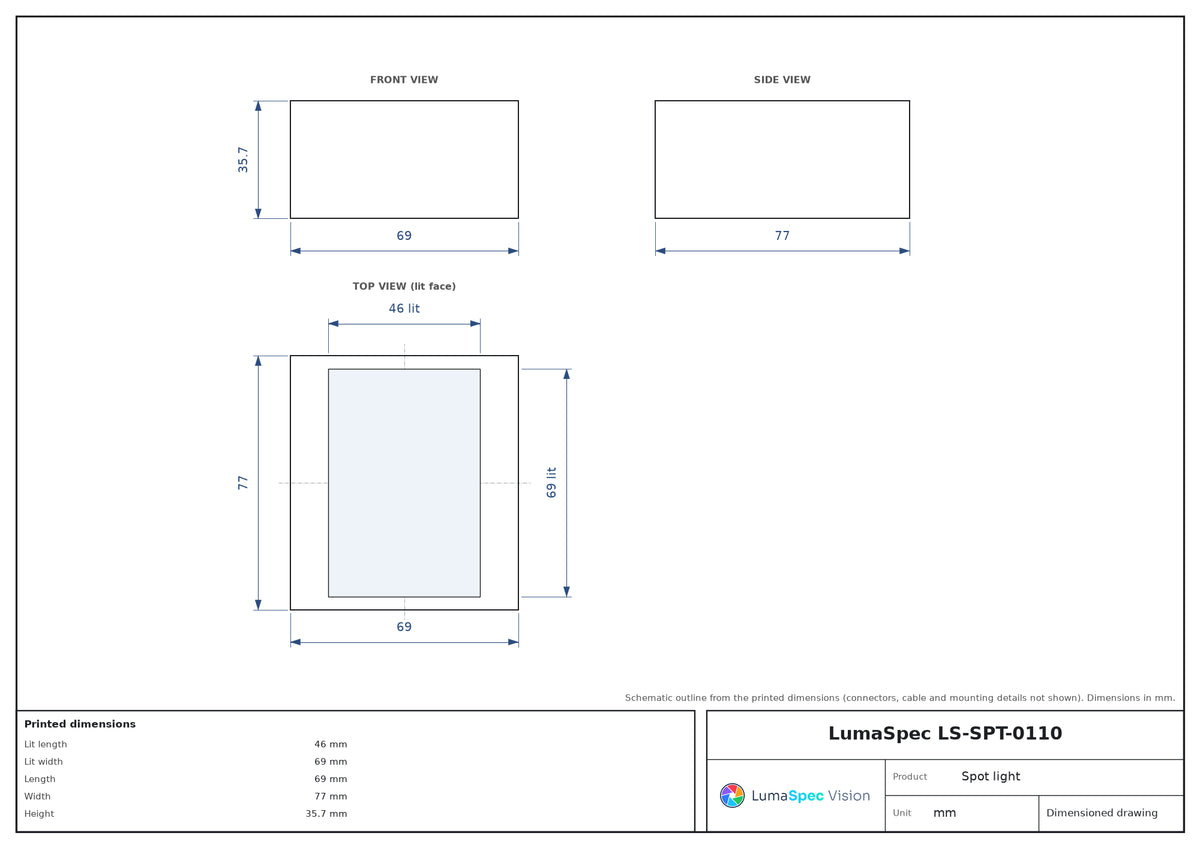

  • LS-SPT-0110 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Spot lights

Spot light, 46 x 69 mm lit area (LS-SPT-0110)

Model LS-SPT-0110

  • ColourWhite, Infrared, Red, Green, UV, Blue
  • Voltage24 VDC
  • Wavelength365 nm, 395 nm, 850 nm, 940 nm
  • Lit length46 mm
from $539.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 1-2 weeks

Choose a configuration 40 available

Lens / beam angle
Polarized

Configuration LS-SPT-0110-01 $1,019.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Compact spot light for small fields of view and high intensity at a distance. Lit area 46 x 69 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle, polarized below (40 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPT-0110
Connection at lightConnectorized
Driver includedIncluded
Driver locationInternal
Intensity controlAnalog Voltage, Integrated Potentiometer
Operating modesOvercurrent Strobe, Overcurrent Strobe - Dimmable
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)10

Interfaces and I/O

Connector5 Pin M12 Male A-Coded

Light

DiffusedNot Diffused

Environment and compliance

Operating temperature-10 to 40 °C
IP ratingIP50
Storage temperature-20 to 70 °C
ComplianceCE, IEC 62471, RoHS

Electrical

Voltage24 VDC
Strobe trigger inputNPN Trigger, PNP Trigger
Max overcurrent strobe current3000 mA
Max overcurrent strobe input power72 W
Maximum current (overcurrent strobe) (mA)3000
Maximum input power overcurrent strobe (W)72
Maximum overcurrent strobe duration (ms)50
Maximum overcurrent strobe duty cycle (%)10
Maximum overcurrent strobe frequency (Hz)4000
Maximum overcurrent strobe latency (µs)6
Minimum overcurrent strobe duration (µs)1
NPN trigger current (mA)14
NPN trigger voltage (V)< 1 VDC
PNP trigger current (mA)17.6
PNP trigger voltage (V)4-24 VDC

Mechanical

Lit length (mm)46
Lit width (mm)69
Length (mm)69
Width (mm)77
Height (mm)35.7
HousingPlastic
MountingThrough Holes
