Spot lights

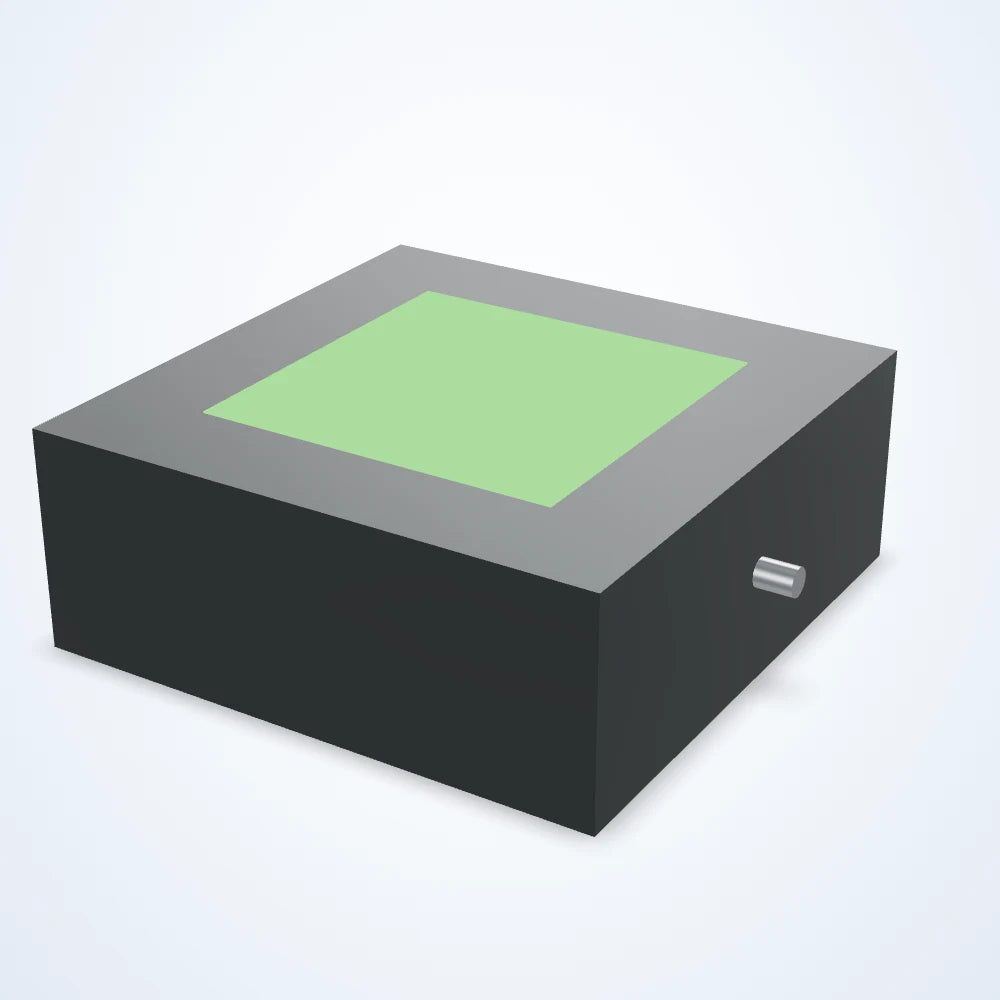

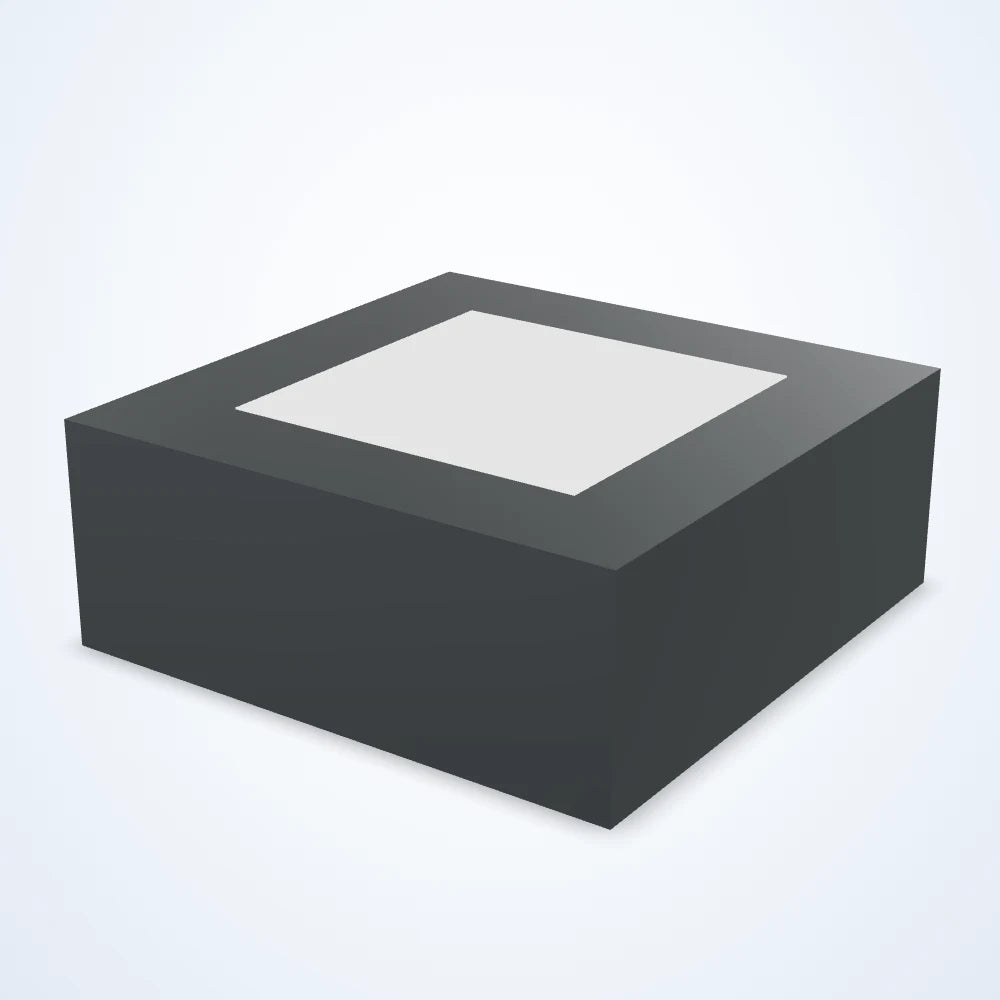

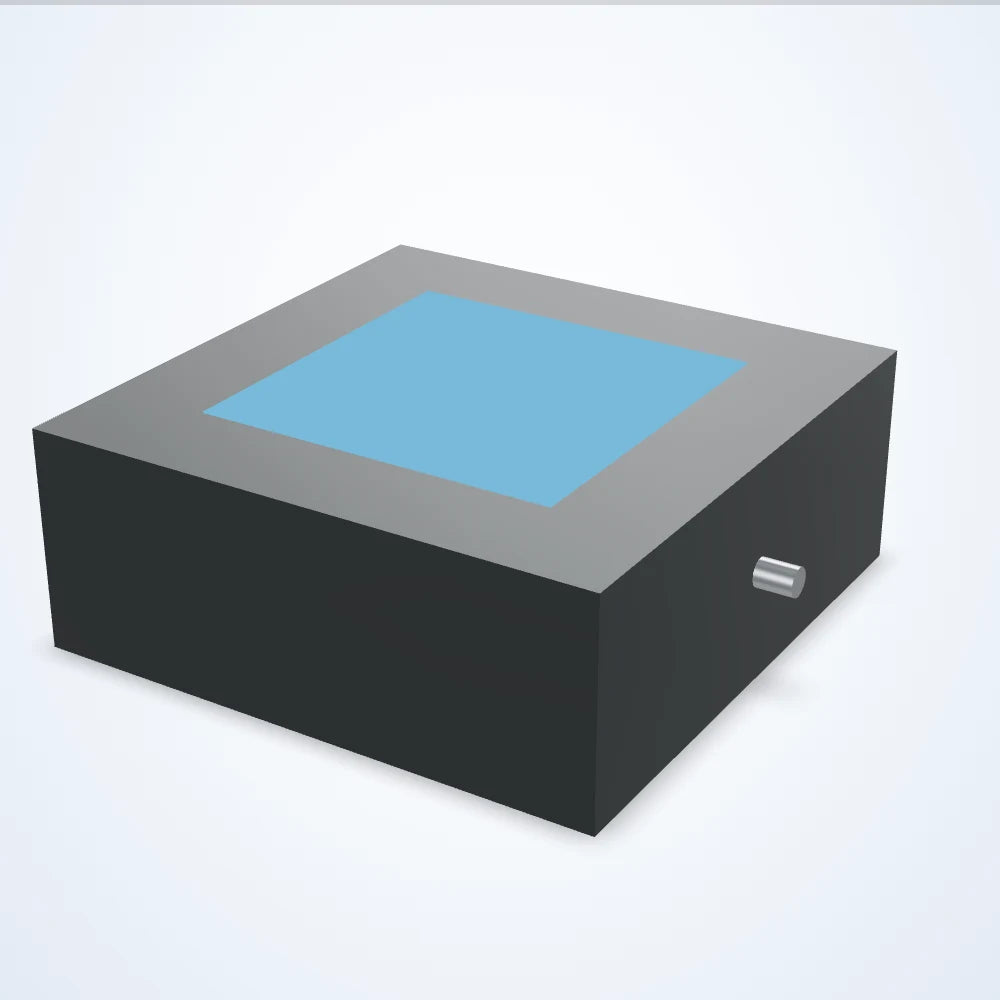

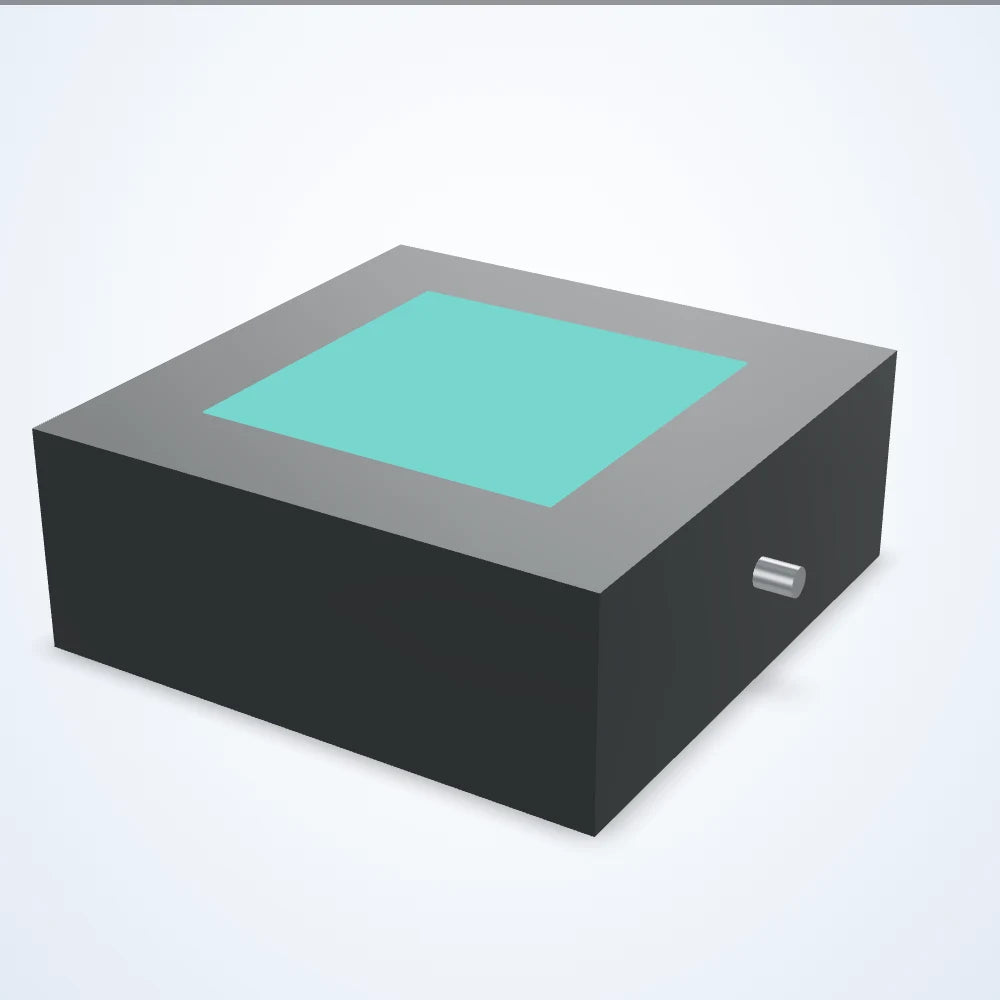

Spot light, 153 x 153 mm lit area (LS-SPT-0107)
Model LS-SPT-0107
- ColourWhite, Red, Green, Infrared, Blue
- Voltage24 VDC
- AngleDiffused
- Wavelength850 nm, 940 nm
from $1,149.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 7 available
Configuration LS-SPT-0107-1 $1,149.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Compact spot light for small fields of view and high intensity at a distance. Lit area 153 x 153 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (7 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0107 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 10 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Lens / beam angle | Diffused |
|---|---|
| Diffused | Diffused |
Environment and compliance
| Operating temperature | -18 to 50 °C |
|---|---|
| IP rating | IP50 |
| Storage temperature | -18 to 50 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Max overcurrent strobe current | 13000 mA |
| Max overcurrent strobe input power | 312 W |
| Maximum current (overcurrent strobe) (mA) | 13000 |
| Maximum input power overcurrent strobe (W) | 312 |
| Maximum overcurrent strobe duration (ms) | 125 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 6 |
| Minimum overcurrent strobe duration (µs) | 10 |
| NPN trigger current (mA) | 15 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 20 |
| PNP trigger voltage (V) | 4-24 VDC |

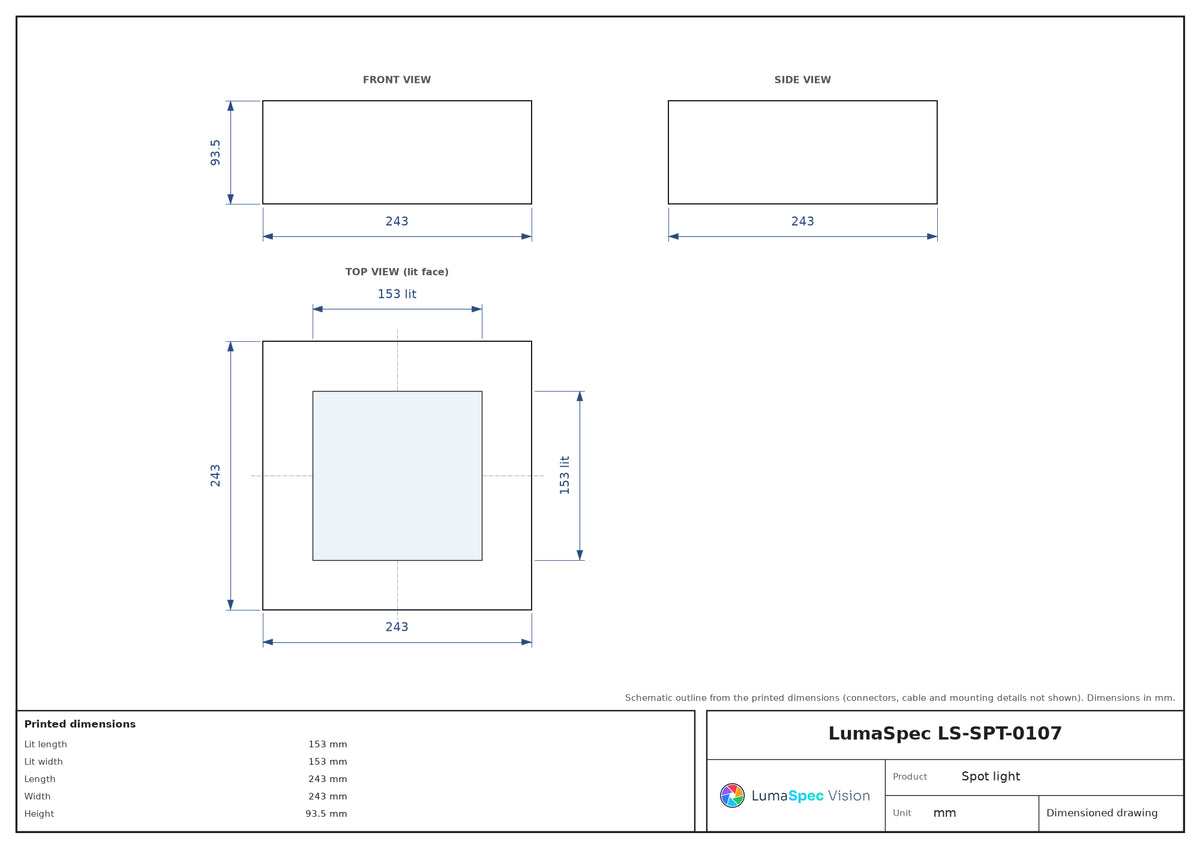

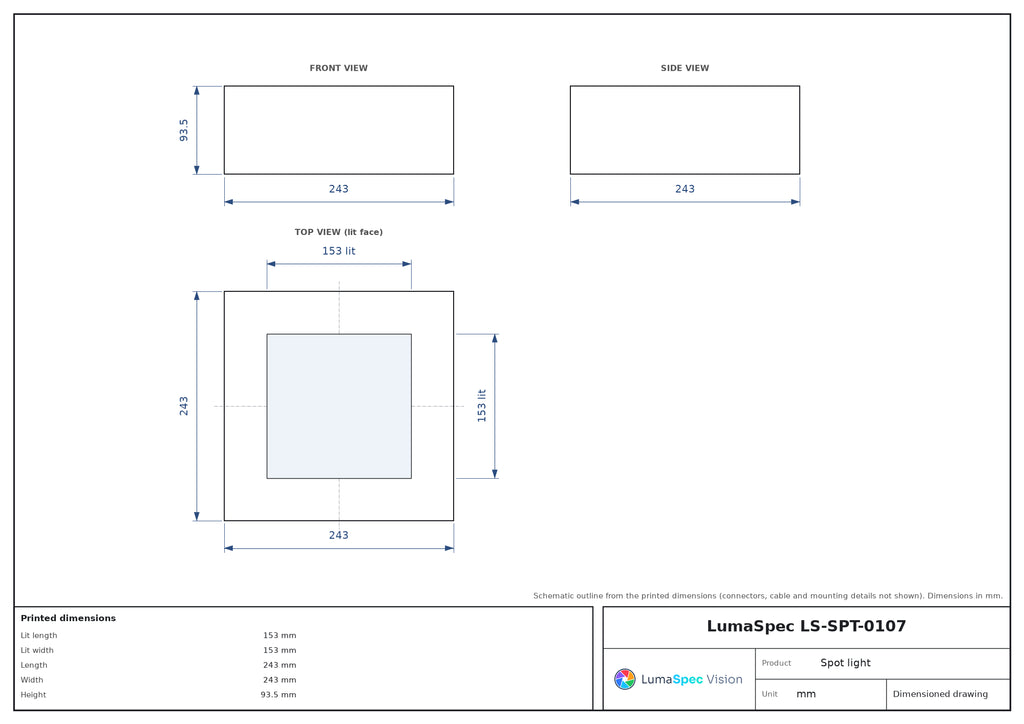

Mechanical
| Lit length (mm) | 153 |
|---|---|
| Lit width (mm) | 153 |
| Length (mm) | 243 |
| Width (mm) | 243 |
| Height (mm) | 93.5 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
