Spot light, 91.1 x 81 mm (LS-SPT-0010)

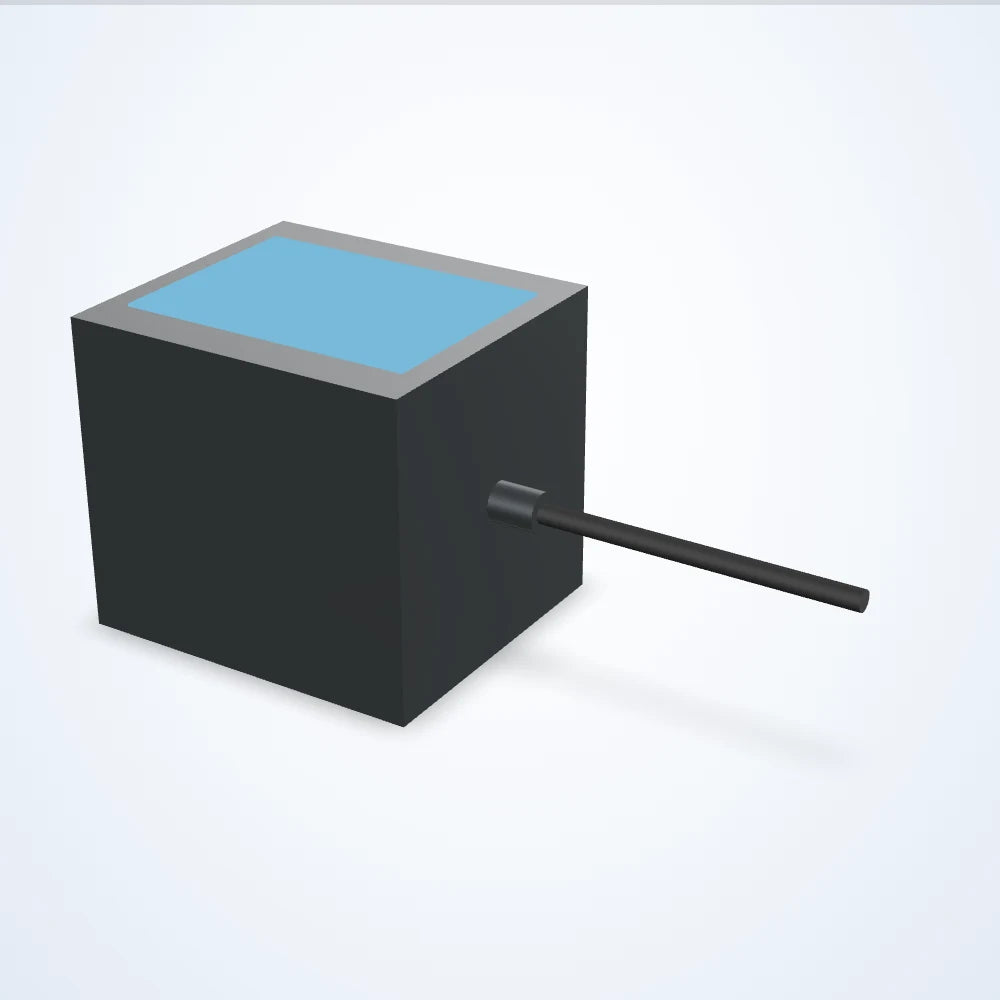

  • Spot light, 91.1 x 81 mm (LS-SPT-0010)

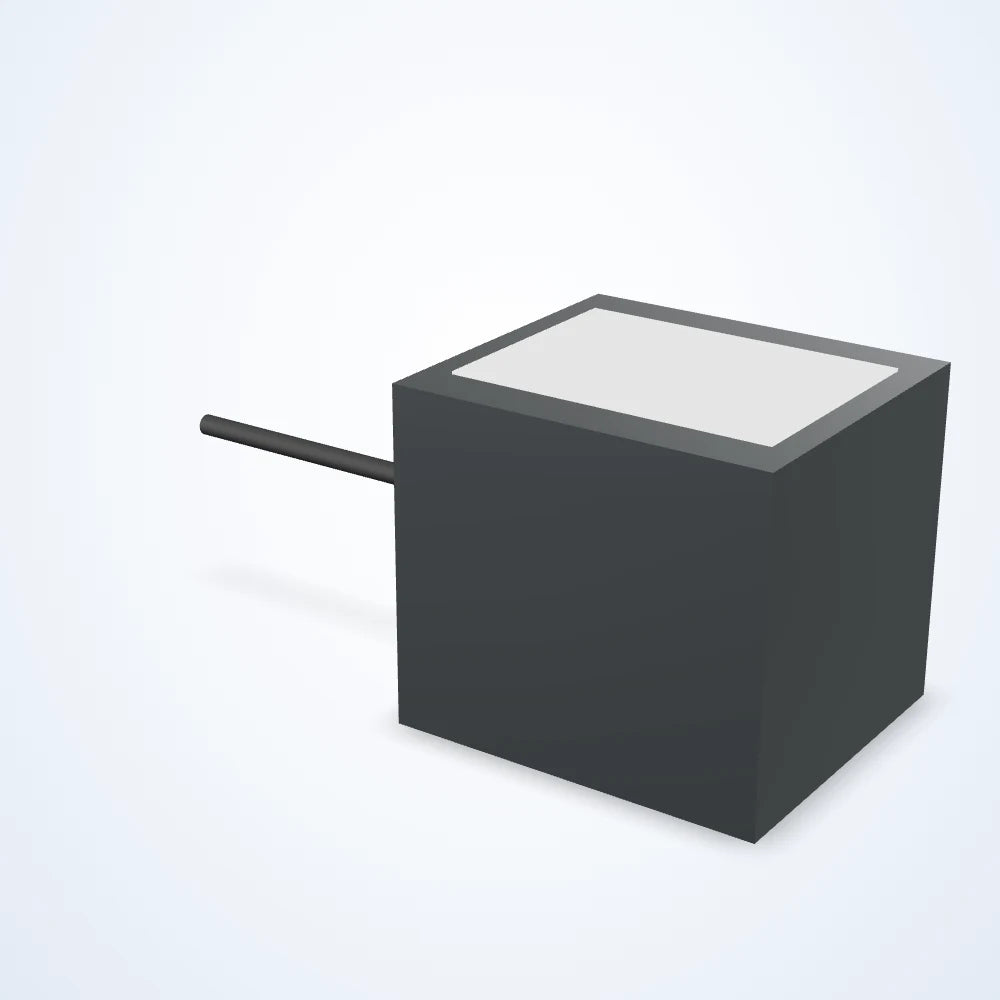

  • Spot light, 91.1 x 81 mm (LS-SPT-0010) - view 2

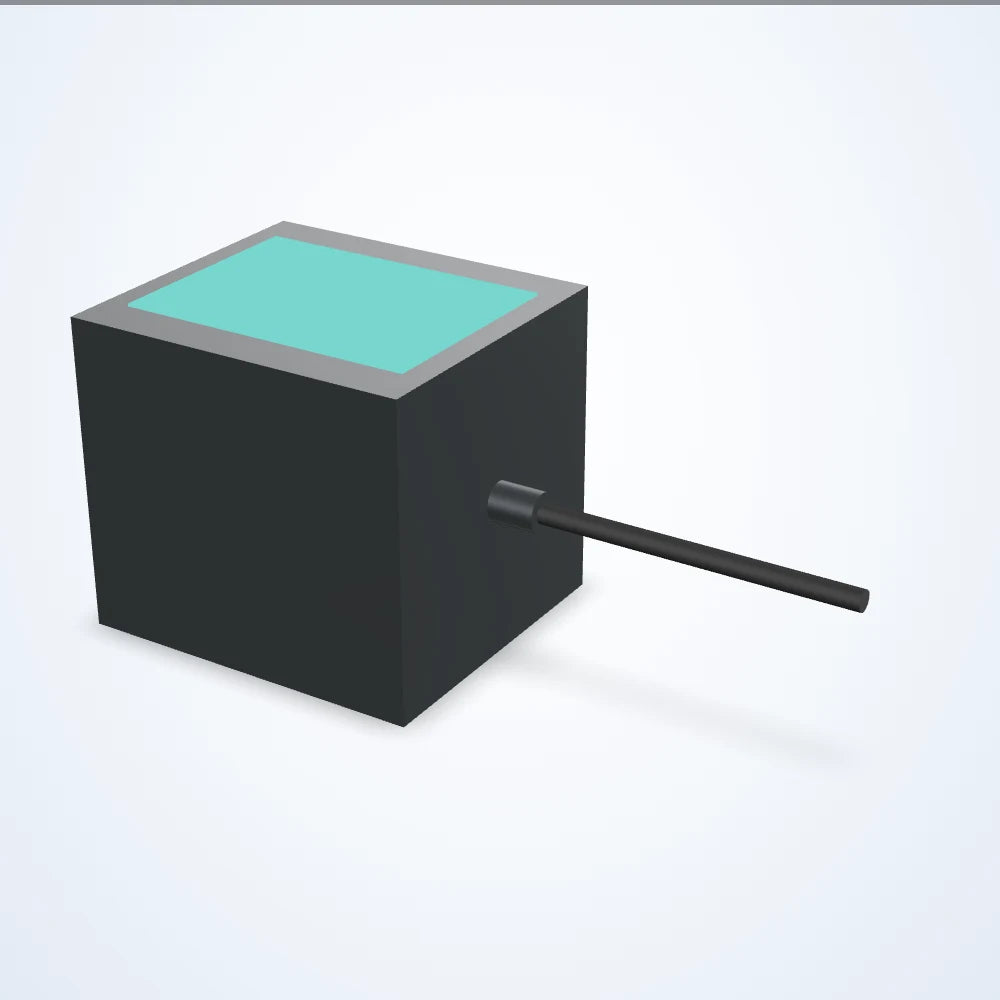

  • Spot light, 91.1 x 81 mm (LS-SPT-0010) - view 3

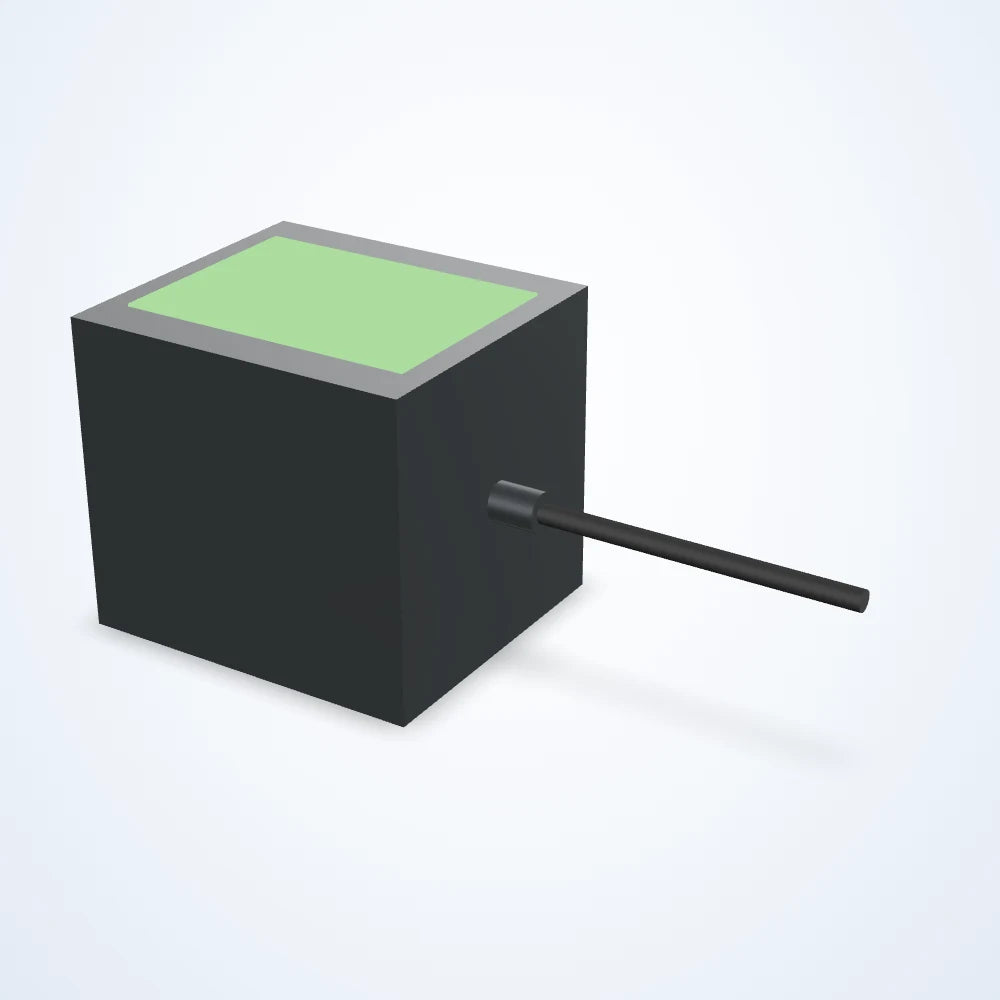

  • Spot light, 91.1 x 81 mm (LS-SPT-0010) - view 4

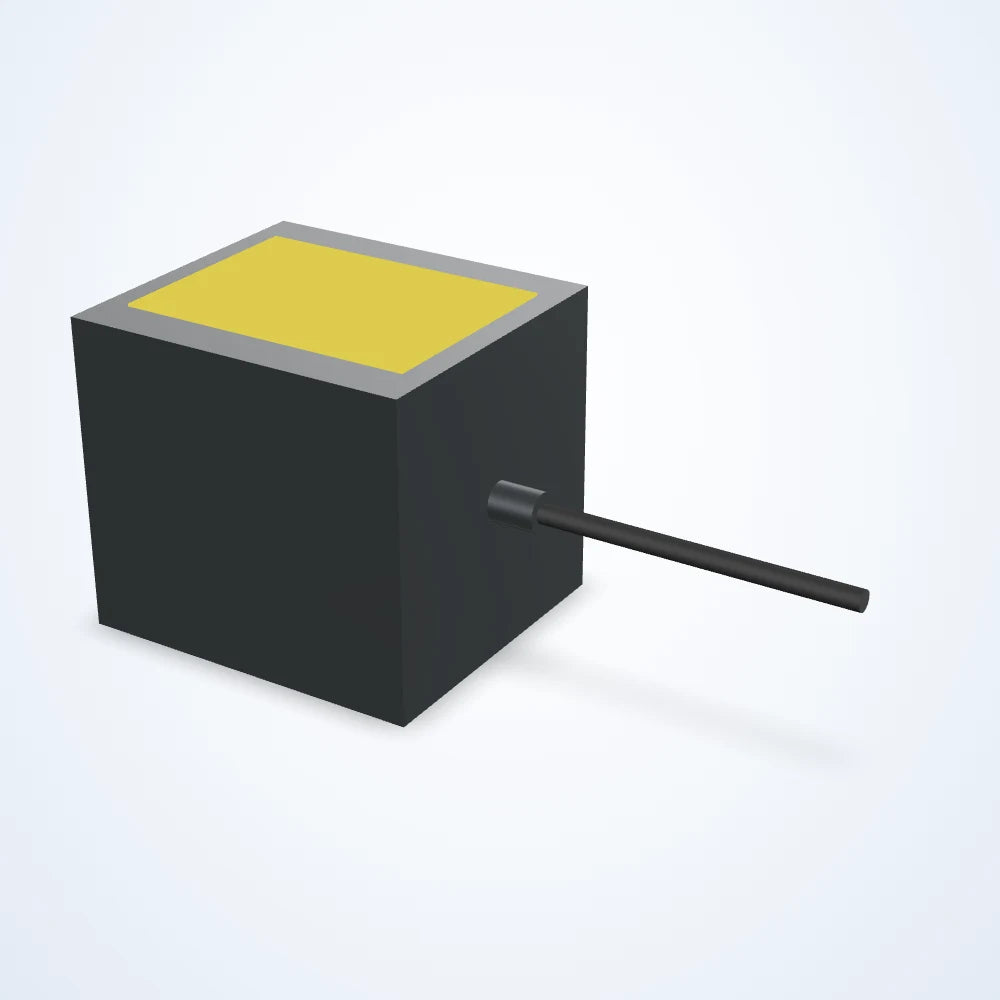

  • Spot light, 91.1 x 81 mm (LS-SPT-0010) - view 5
  • Spot light, 91.1 x 81 mm (LS-SPT-0010) - view 6

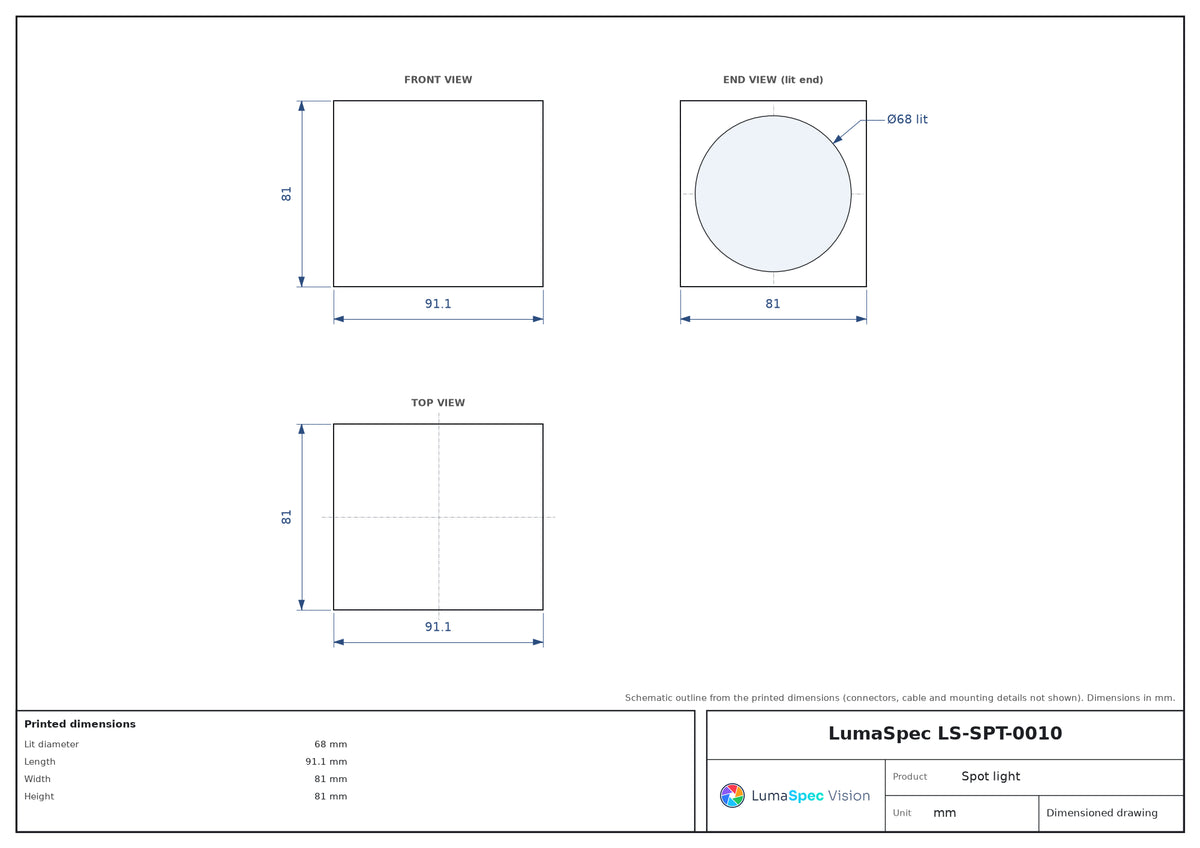

  • LS-SPT-0010 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Spot lights

Spot light, 91.1 x 81 mm (LS-SPT-0010)

Model LS-SPT-0010

  • ColourWhite, Infrared, Red, Green, Blue
  • Voltage24 VDC
  • Wavelength730 nm, 850 nm, 940 nm
  • Lit diameter68 mm
from $649.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 88 available

Lens / beam angle
Driver included
Driver location
Intensity control
Strobe trigger input
Version

Configuration LS-SPT-0010-01 $649.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Compact spot light for small fields of view and high intensity at a distance. 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (88 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SPT-0010
Connection at lightHardwired
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperatureup to 60 °C
IP ratingIP67
ComplianceCE, IEC 62471, RoHS
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Maximum constant on current (mA)320 / 550 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)7.7 / 13.2 (by configuration)
Maximum input power overcurrent strobe (W)125 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)60 (by configuration)
Minimum overcurrent strobe duration (µs)30 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit diameter (mm)68
Length (mm)91.1
Width (mm)81
Height (mm)81
HousingAluminum
MountingTapped Holes
