Rendered illustration: the actual product may differ in appearance.
Spot lights

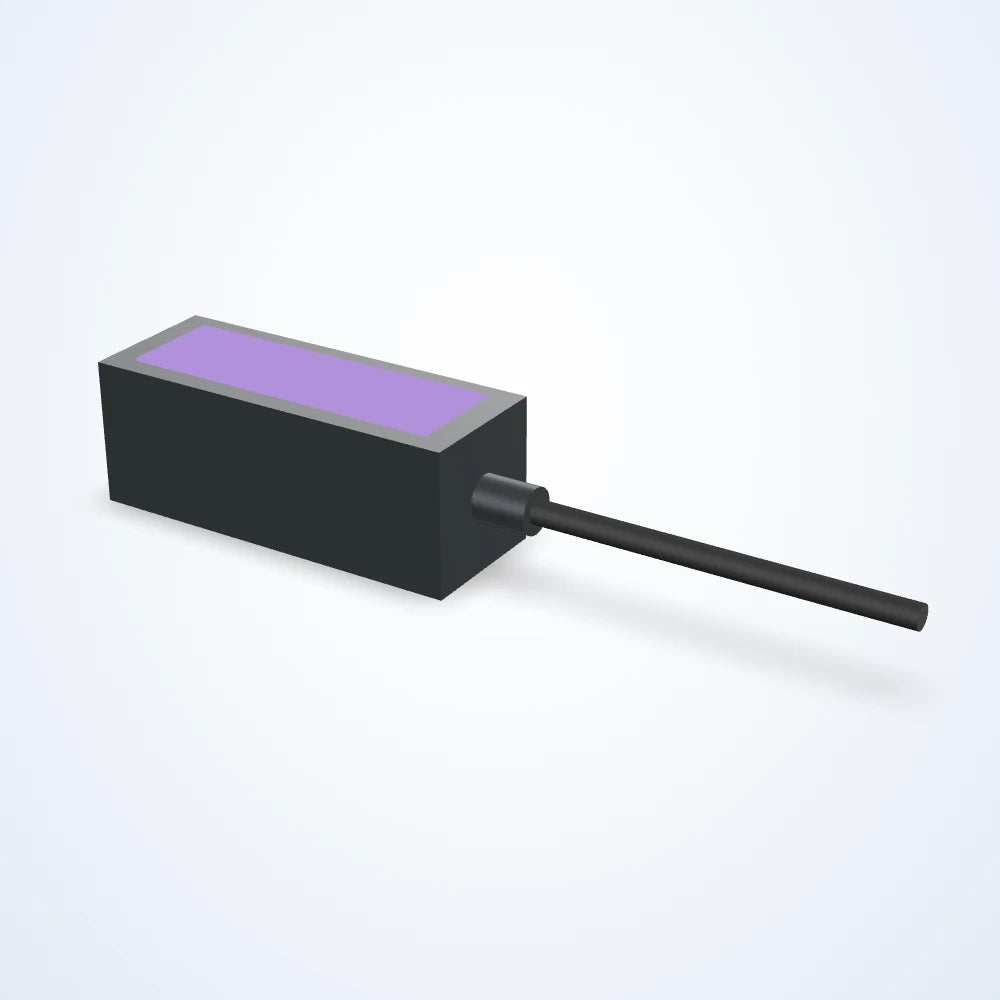

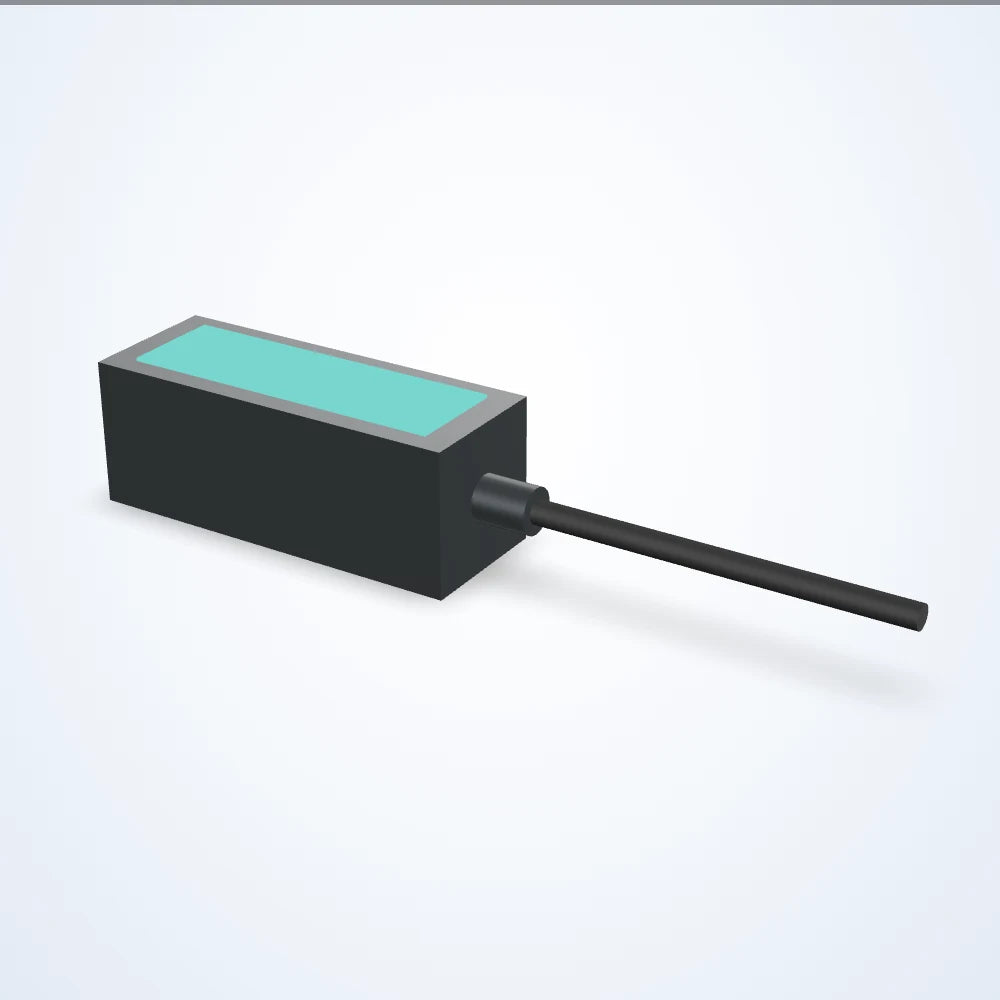

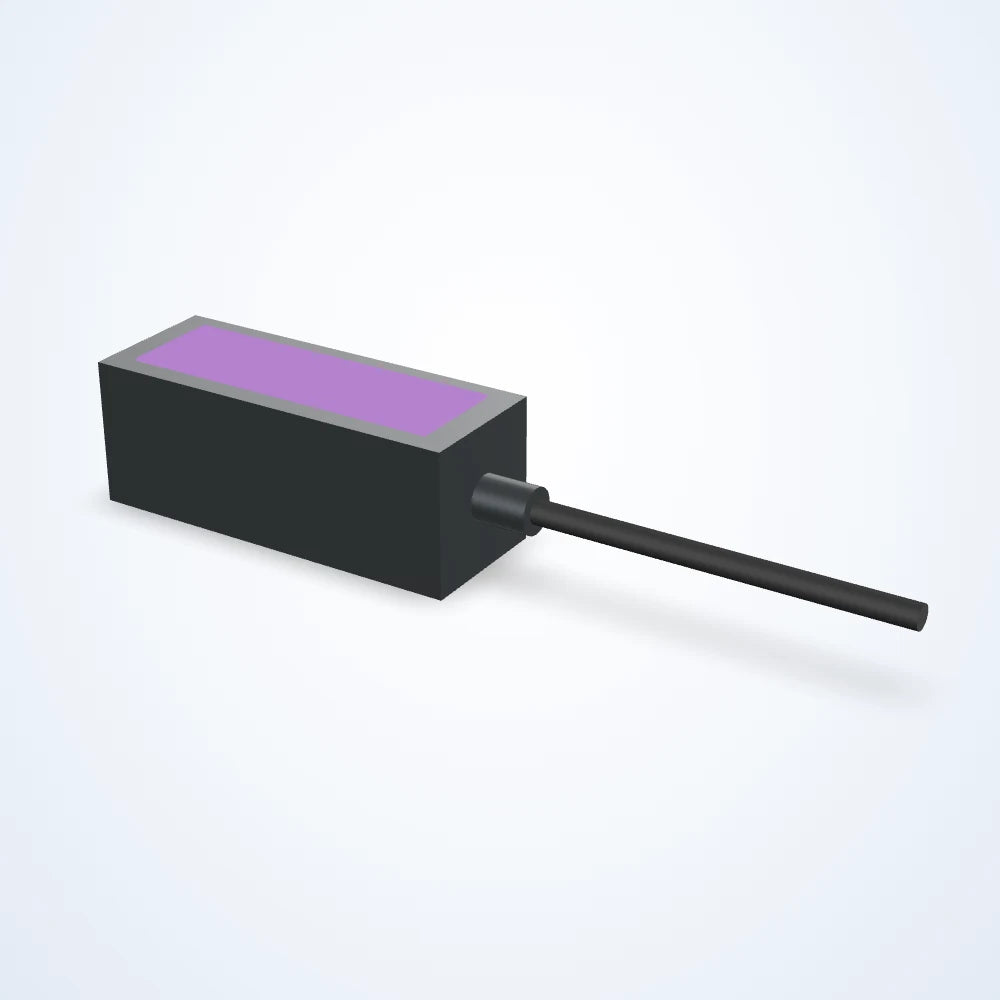

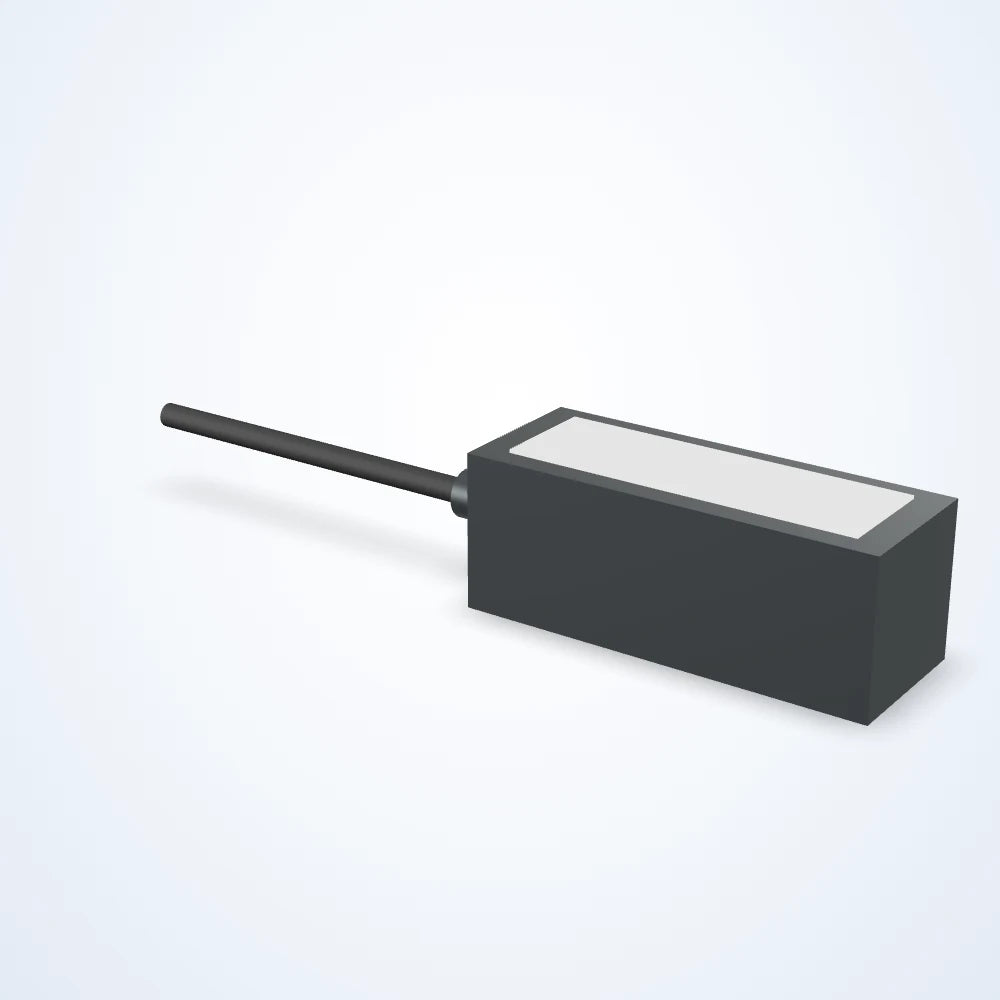

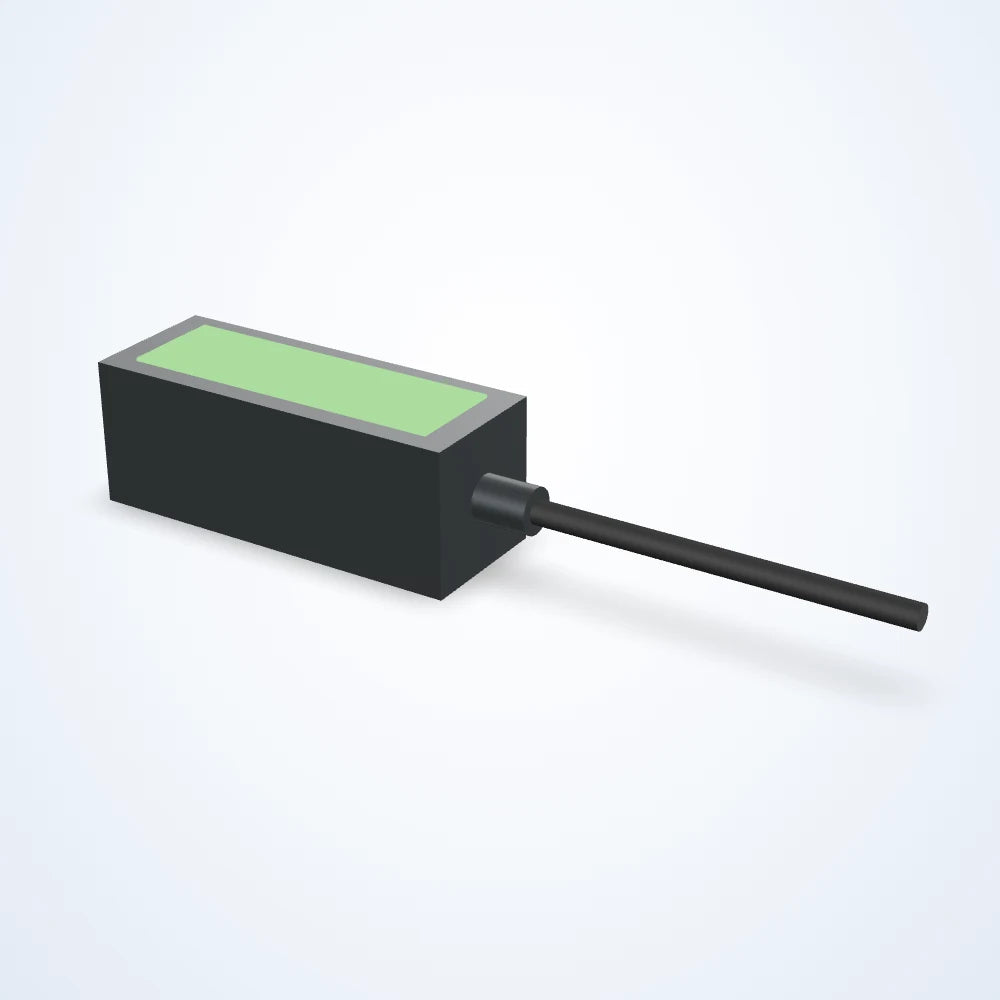

Spot light, 84.8 x 31.8 mm (LS-SPT-0005)
Model LS-SPT-0005
- ColourGreen, Infrared, Red, UV, Blue, White
- Voltage24 VDC
- Wavelength365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 730 nm, 850 nm, 940 nm
- Lit diameter6.3 mm
from $669.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 64 available
Configuration LS-SPT-0005-01 $789.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Compact spot light for small fields of view and high intensity at a distance. 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (64 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0005 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP67 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 90 / 230 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 2.2 / 5.5 (by configuration) |
| Maximum input power overcurrent strobe (W) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |

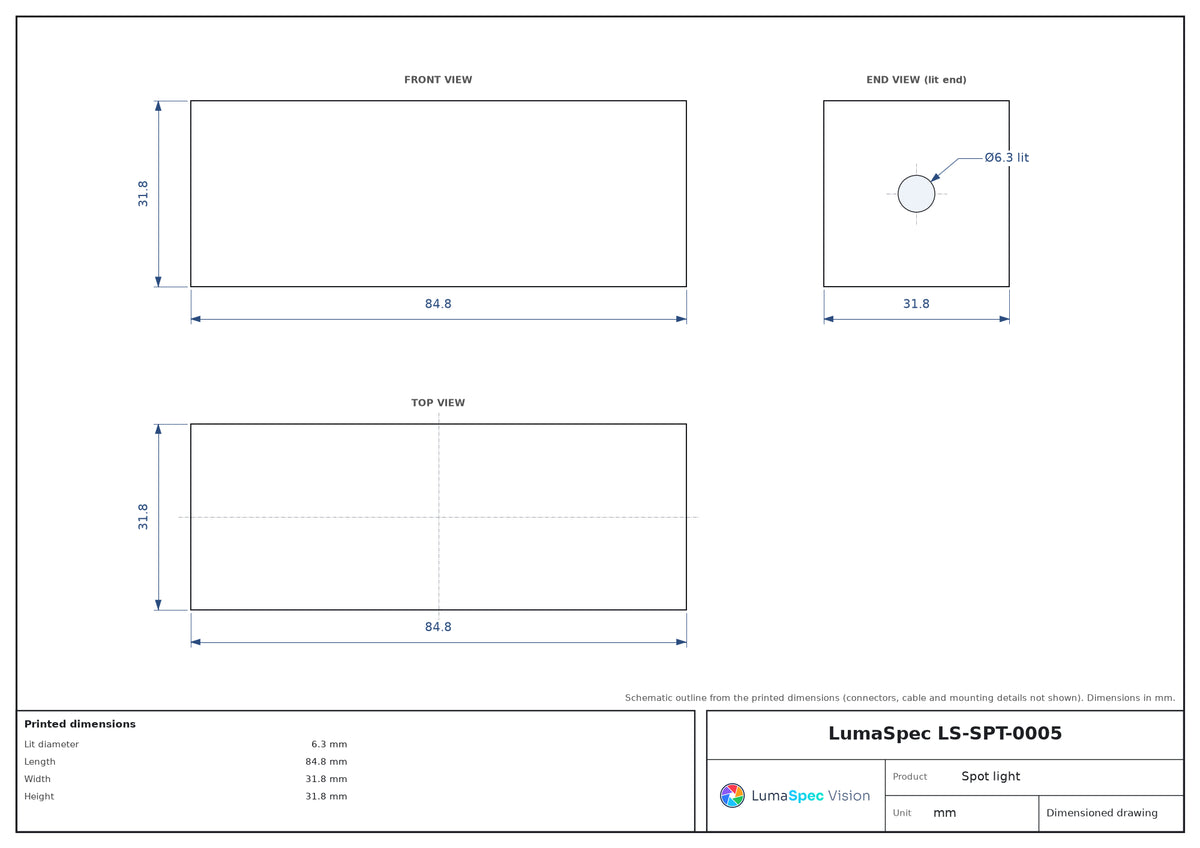

Mechanical
| Lit diameter (mm) | 6.3 |
|---|---|
| Length (mm) | 84.8 |
| Width (mm) | 31.8 |
| Height (mm) | 31.8 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
