Rendered illustration: the actual product may differ in appearance.
Spot lights

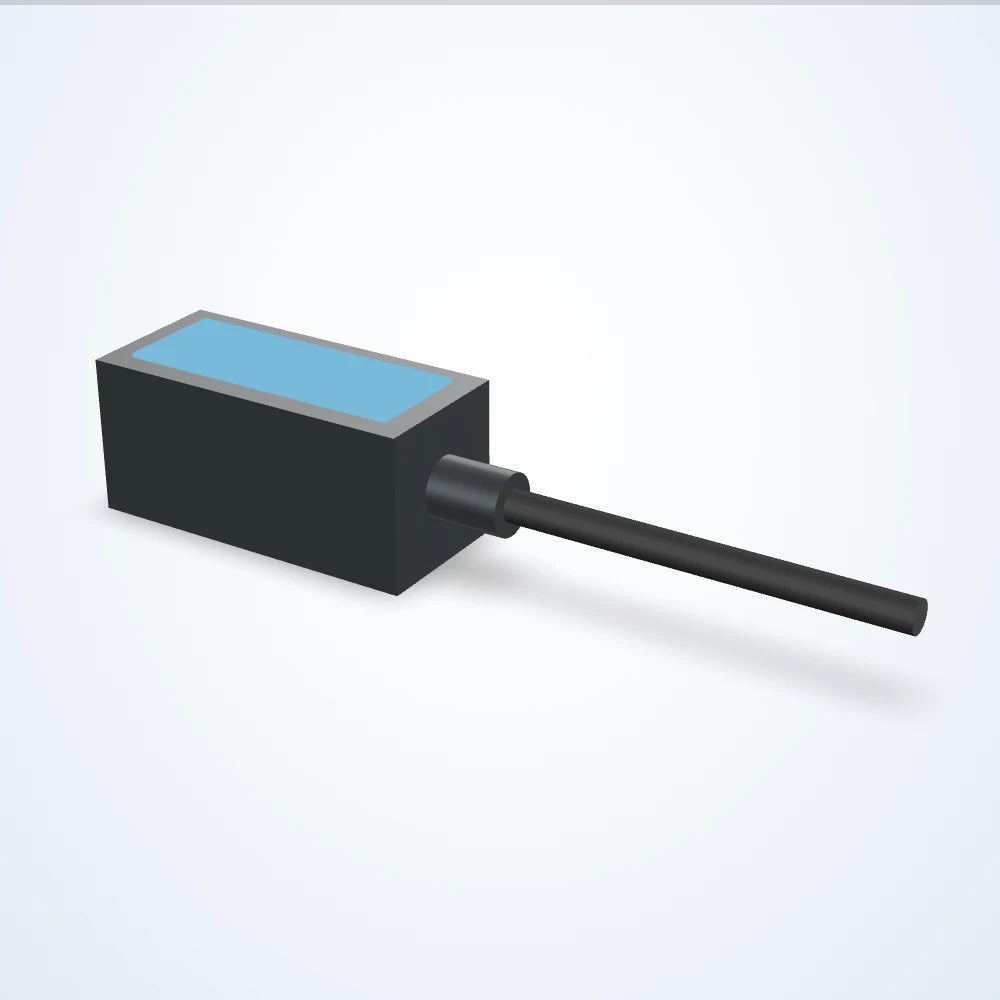

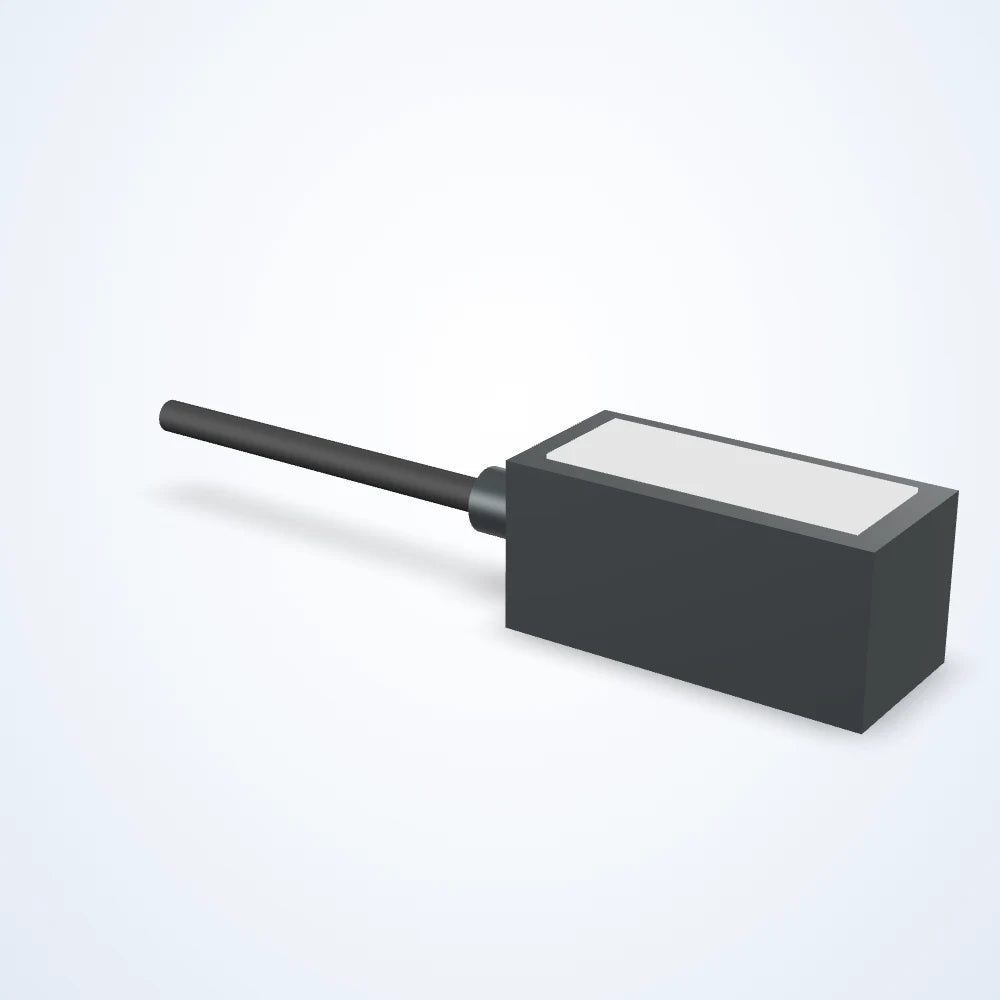

Spot light, 55.7 x 25.4 mm (LS-SPT-0003)
Model LS-SPT-0003
- ColourWhite, Infrared, Red, Green, Blue
- Voltage24 VDC
- Wavelength730 nm, 850 nm, 940 nm
- Lit diameter6.3 mm
from $569.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 33 available
Configuration LS-SPT-0003-01 $709.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Compact spot light for small fields of view and high intensity at a distance. 24 VDC supply; connection: flying leads. Choose colour, operating modes, strobe trigger input, version below (33 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPT-0003 |
|---|---|
| Connection at light | Hardwired |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP67 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 280 |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 6.7 |
| Maximum input power overcurrent strobe (W) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |

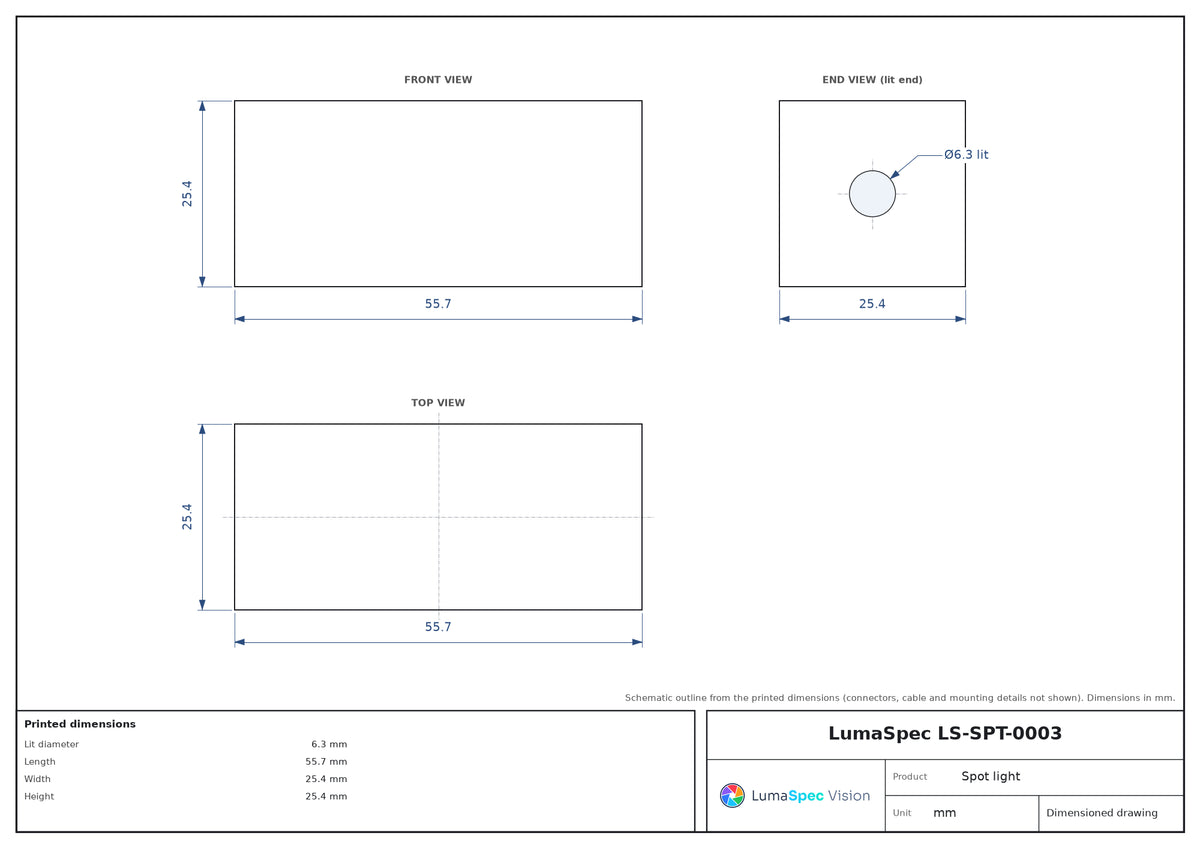

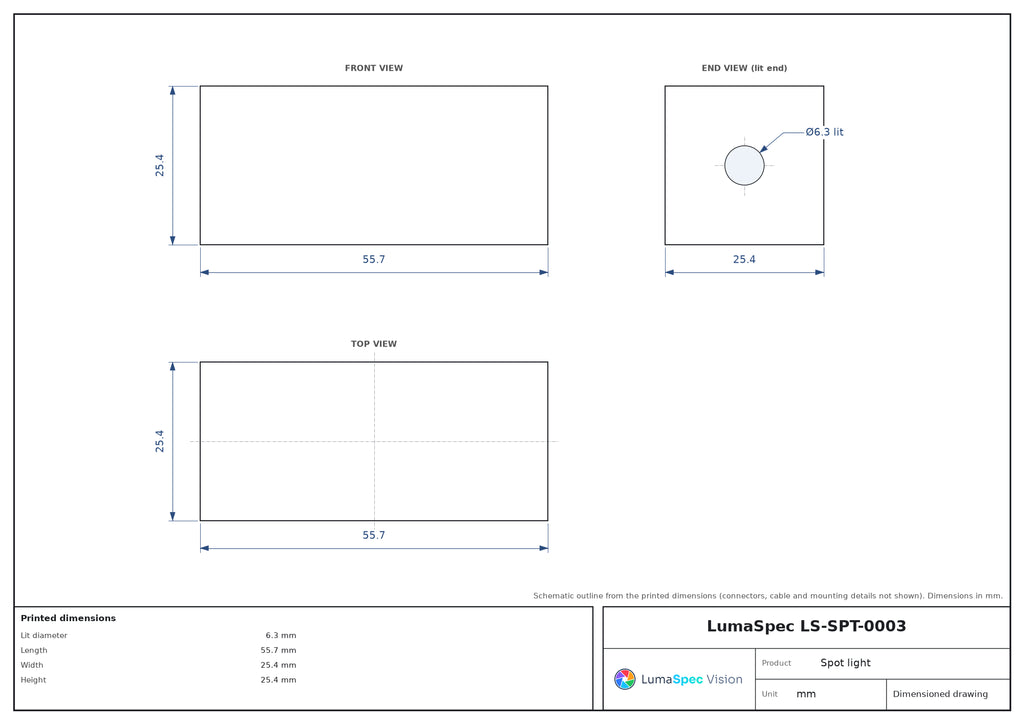

Mechanical
| Lit diameter (mm) | 6.3 |
|---|---|
| Length (mm) | 55.7 |
| Width (mm) | 25.4 |
| Height (mm) | 25.4 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
