M12 board lenses
2.8 mm, 1/2.5", 2 MP, CS-mount Pinhole Lens, F1.8 DC Iris (LS-SPH2818D-2M)
Model LS-SPH2818D-2M
- Focal length2.8 mm
- MountCS-mount
- Sensor1/2.5"
- ApertureF1.8 DC Iris
- Resolution2.0 MP
$39.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.23 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2.8 mm, 1/2.5", 2 MP, CS-mount Pinhole Lens. 2.8 mm, 1/2.5" 2 MP CS-mount cone pinhole lens with DC auto iris and wide field of view. Covers 1/2.5" to 1/4" cameras; for police stations, courts, prisons and metallurgy sites. At a glance: focal length 2.8 mm; format 1/2.5"; resolution 2.0 MP; aperture F1.8 DC Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPH2818D-2M |
|---|---|
| Format | 1/2.5" |
| Angle of view (1/2.5", DxHxV) | 140 x 100 x 60 deg |
Optics
| Focal length | 2.8 mm |
|---|---|
| Aperture | F1.8 DC Iris |
| M.O.D. | 0.15 m |
Sensor and imaging
| Resolution | 2.0 MP |
|---|
Mechanical

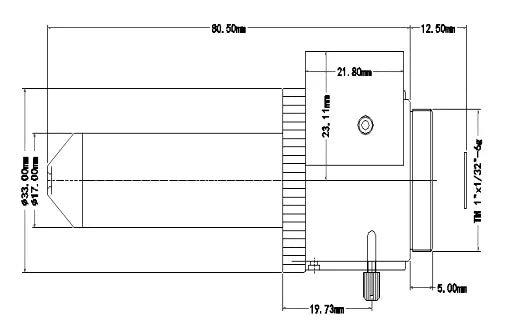

| Size | dia. 17 x 33 x 85.5 mm |
|---|---|
| Mount | CS |
| Weight | 94 g |
| Shipping weight (estimated) | 0.23 kg |
