Machine vision lenses
1/2", C-mount Special Optics (LS-SPH0412X)
Model LS-SPH0412X
- Magnification0.4X ~ 1.2X
- MountC-mount
- Sensor1/2"
- ApertureF8
- ResolutionMegapixel
$399.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.32 kg shipping weight
Volume pricing, Net 30 or a formal quote?
1/2", C-mount Special Optics. 0.4-1.2x zoom lens for 1/2" cameras for high-temperature smelting and welding applications, F8, WD 125 mm, quartz front window with dust- and water-proof washer and attenuator. At a glance: magnification 0.4X ~ 1.2X; format 1/2"; resolution Megapixel; aperture F8; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPH0412X |
|---|---|
| Format | 1/2" |
| FOV (object side) | dia. 6.66 ~ dia. 20 |
| DOF | 3.5 mm |
| Front window | Quartz with dust-proof / water-proof washer; dia. 18 attenuator |
Optics
| Magnification | 0.4X ~ 1.2X |
|---|---|
| Aperture | F8 |
| M.O.D. | 125 mm |
| Distortion (optical) | 0.03% |
| MTF (image side) | >0.4@100lp/mm |
Sensor and imaging
| Resolution | Megapixel |
|---|
Electrical
| Resolving power | 1.25 µm |
|---|

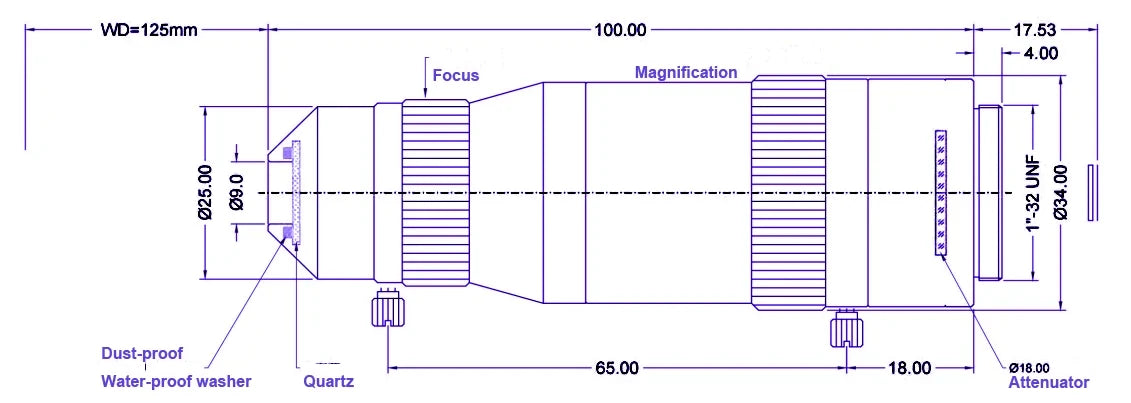

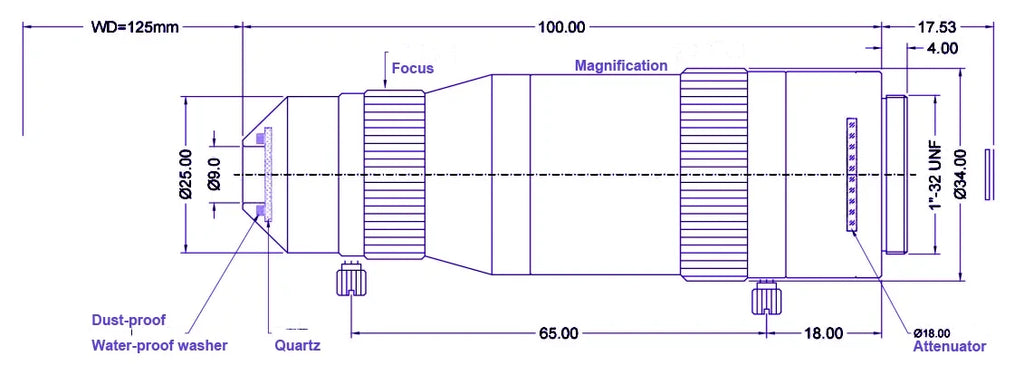

Mechanical
| Size | dia. 34 x 100 mm |
|---|---|
| Mount | C |
| Weight | 155 g |
| Shipping weight (estimated) | 0.32 kg |
Other models in the Special optics series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-3D/2DMULTI-FOCUSMICROSCOPEKIT | 1/2.3" | $399.00 | 4 in stock | View |
| LS-SATM2015A | 5.47 mm, 1/3", 1.3 MP | $399.00 | 3 in stock | View |
| LS-SMD1432-8M | 14-32 mm, 1/1.8", 8 MP, C/CS-mount | $399.00 | 5 in stock | View |
