Special lights

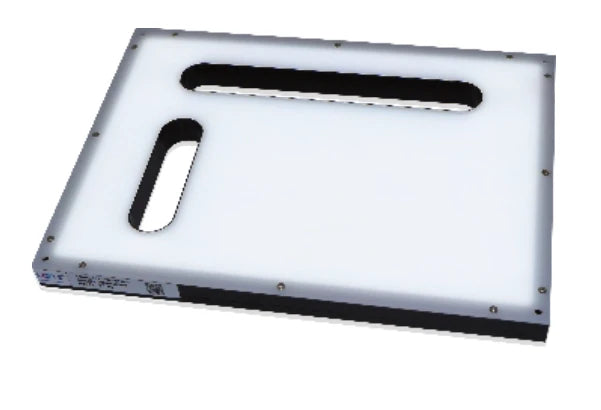

206 x 146 mm Customized lights (LS-SPC-0065)
Model LS-SPC-0065
- ColourWhite
- Emitting area206 x 146 mm
- SizeL220xW160xH15(mm)
- Voltage24 V
- Power26.2 W
$839.00
Ships in 2-3 weeks
0.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
To serve customers with different needs, machine-vision illumination of many kinds can be customized to the customer's requirements. Process: the customer states an idea or requirement, a solution is worked out by experiment, feasibility is discussed with the customer, products are trial-produced, and the customer is assisted in use.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SPC-0065 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Series | Ring back light |
| Slots | two slotted holes, R10 / R12 |
Light
| Emitting surface (mm) | 206 x 146 |
|---|
Electrical
| Voltage | 24 V |
|---|---|
| Power (W) | 26.2 |
| Power | 26.2W |

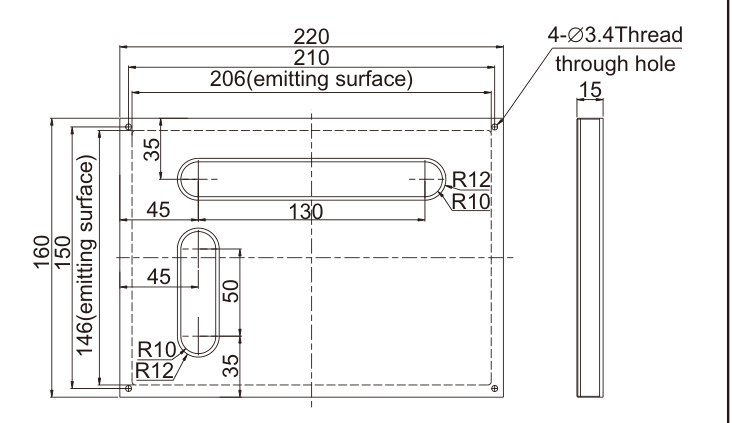

Mechanical
| Mounting | 4-dia. 3.4 thread through hole |
|---|---|
| Dimension | L220xW160xH15(mm) |
| Shipping weight | 0.70 kg |
